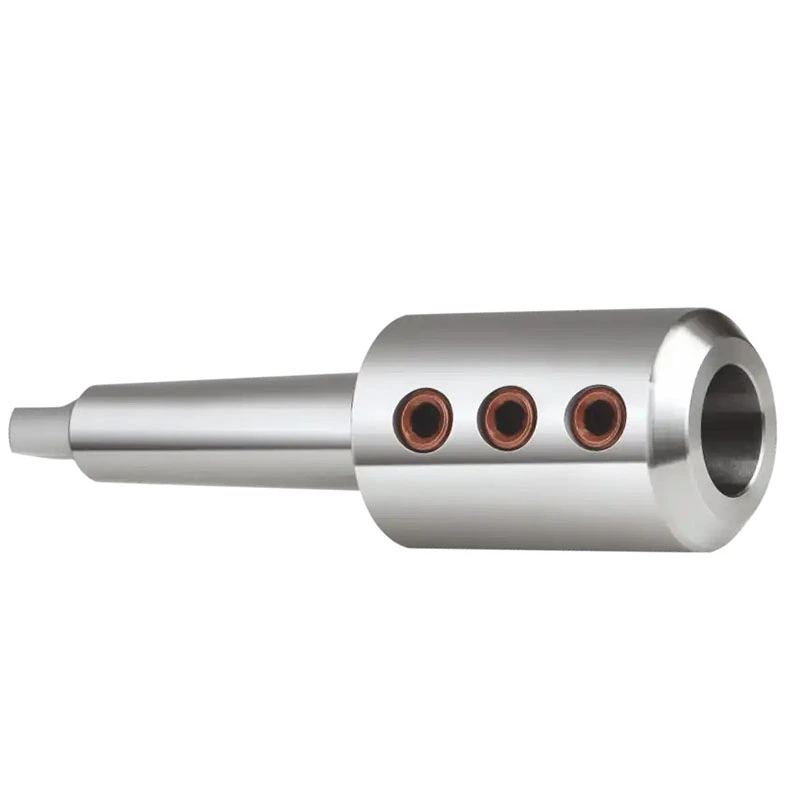

Weldon Tool Holder
Diameter Range: 20mm – 40mm (0.787” – 1.575”)
• Length Range: 75mm – 105mm (2.953” – 4.134”)
• Material: H13 Steel
Features and benefits
• Weldon shank interface provides secure clamping and reliable torque transmission
• Compatible with drills, boring tools, and other cylindrical shank tooling
• Two precision clamping screws improve tool retention and resistance to movement under heavy cutting loads
• Allows quick tool changes with repeatable positioning
• See page 91 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

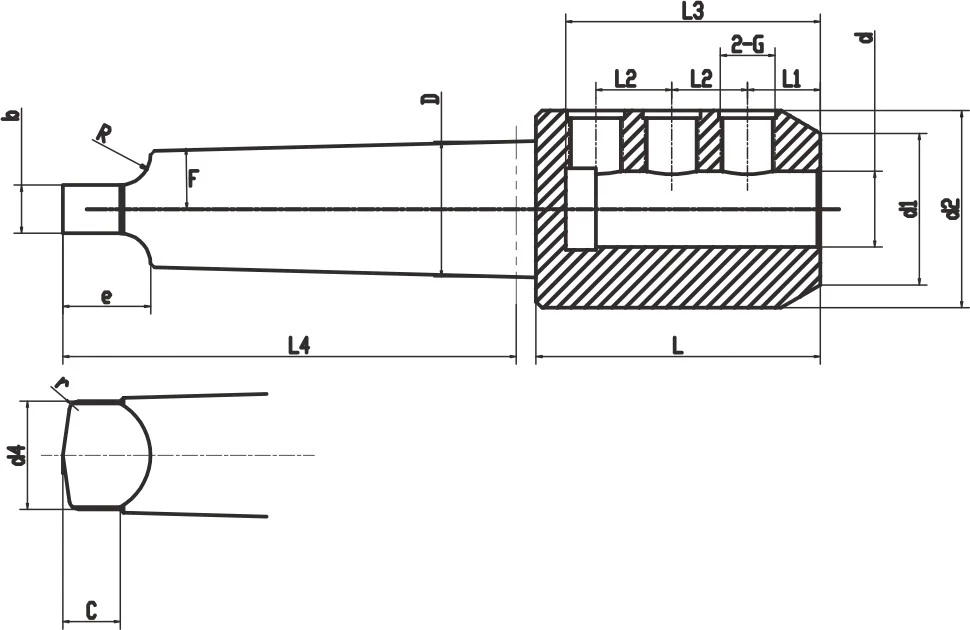

Dimensions & Technical Specifications
8 available configurations
| Hole Diameter (mm) | Seat Diameter (mm) | Seat Length (mm) | T |
|---|---|---|---|
| 20 | 52 | 75 | M16*2.0P |
| 25 | 65 | 90 | M16*2.0P |
| 32 | 72 | 90 | M16*2.0P |
| 40 | 90 | 100 | M16*2.0P |
| 20 | 52 | 90 | M16*2.0P |
| 25 | 60 | 105 | M16*2.0P |
| 32 | 63 | 105 | M16*2.0P |
| 40 | 78/90 | 105 | M16*2.0P |
