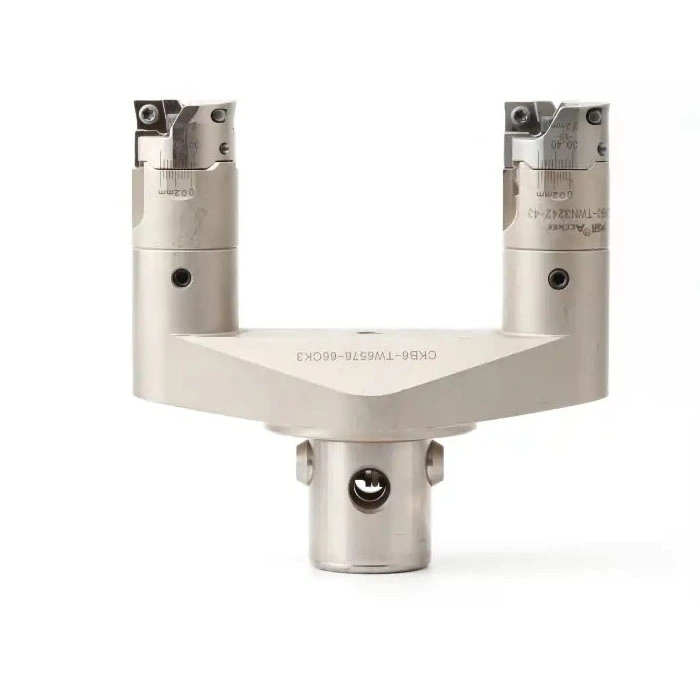

Pin Turning Boring Head

Diameter Range: 22mm – 127mm (0.866” – 5”)
• Length Range: 56mm – 77mm (2.205” – 3.031”)
• Material: H13 Steel

Features and benefits

• Dual opposing insert holders balance cutting forces while both inserts cut simultaneously
• Suitable for internal and external boring
• See page 98 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

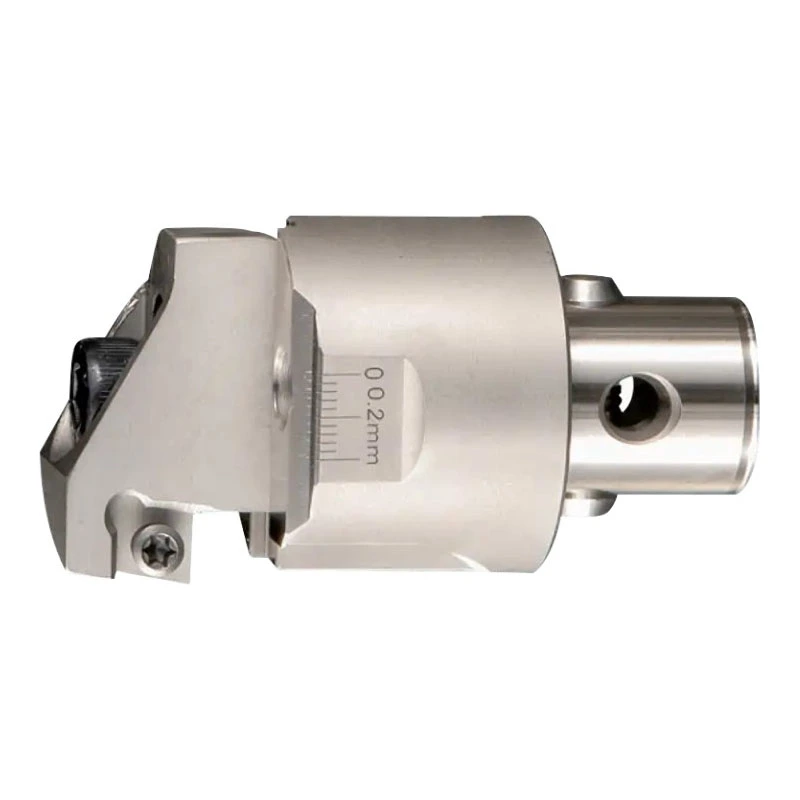

Modular Counter Rough Boring System

Diameter Range: 30mm – 160mm (1.181” – 6.299”)
• Length Range: 29mm – 56mm (1.142” – 2.205”)
• Material: H13 Steel

Features and benefits

• Interchangeable modular heads reduce tooling inventory
• Precision screw adjustment allows accurate diameter adjustment
• Modular construction minimizes vibration and deflection
• Supports back boring
• See page 112 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

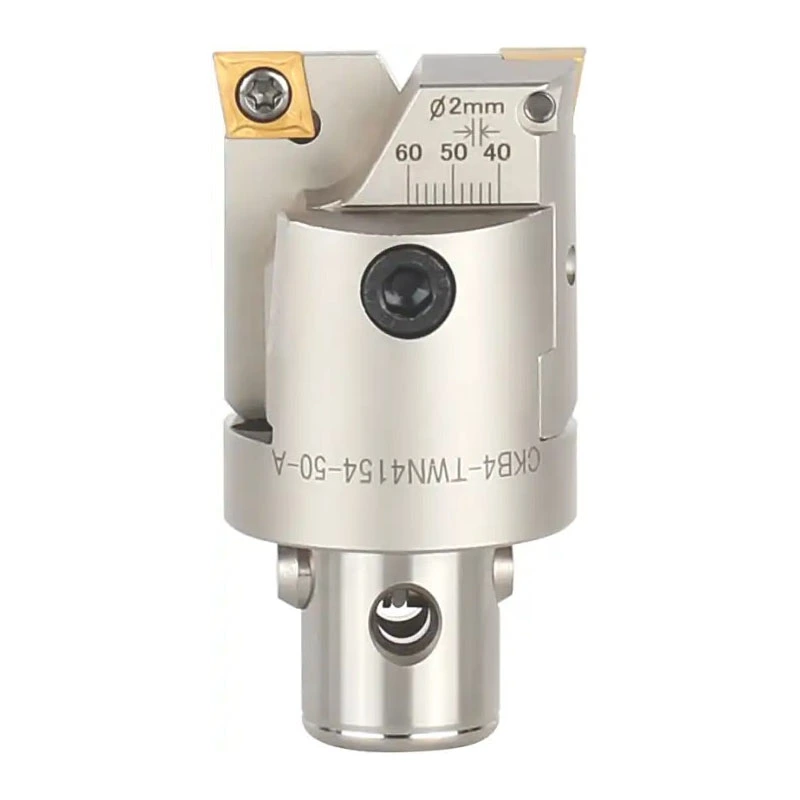

Heavy Cutting Rough Boring Head

Diameter Range: 25mm – 90mm (0.984” – 3.543”)
• Length Range: 38mm – 75mm (1.496” – 2.953”)
• Material: H13 Steel

Features and benefits

• Heavy-duty construction for high metal removal applications
• Rigid cartridge clamping improves positioning accuracy and stability
• Supports 90° blind-hole boring and 75° through-hole boring
• Designed for heavy cutting loads with reduced vibration
• See page 97 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

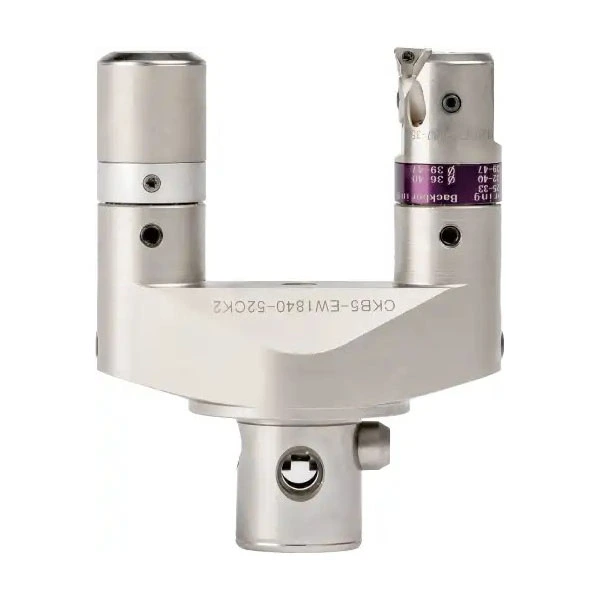

Pin Turning Finishing Head

Diameter Range: 8mm – 120mm (0.315” – 4.724”)
• Length Range: 78mm (3.071”)
• Material: H13 Steel

Features and benefits

• External Boring Range: 8mm – 127mm
• Internal Boring Range: 80mm – 242mm
• Reversible carbide insert holder for internal and external boring
• Counterweighted dual-arm design reduces vibration and deflection
• See page 106 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

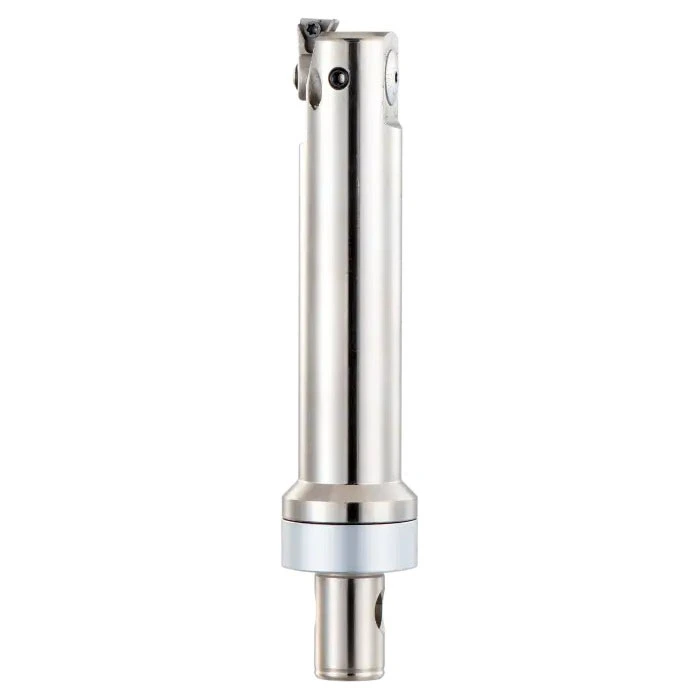

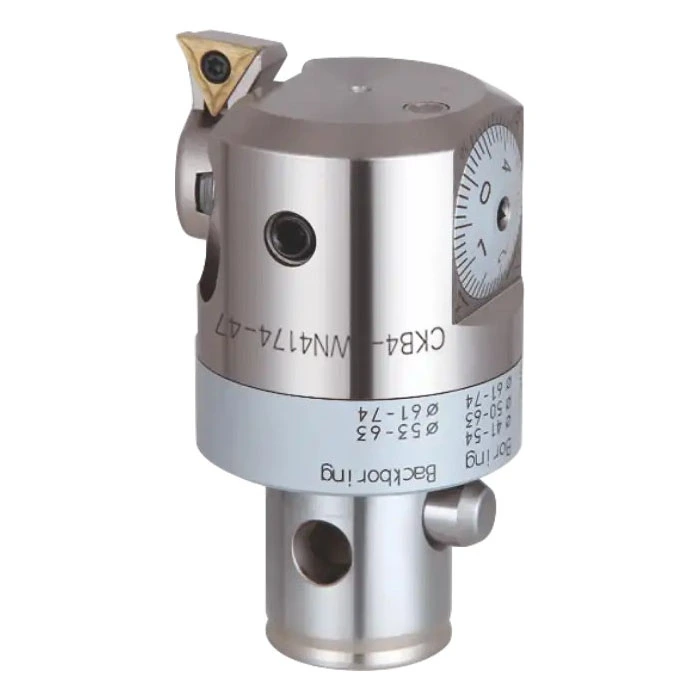

EWN Precision Boring Head

Diameter Range: 20mm – 203mm (0.787” – 7.992”)
• Length Range: 32.5mm – 71mm (1.28” – 2.795”)
• Material: H13 Steel

Features and benefits

• Precision vernier adjustment with 0.01mm per division
• Maximum cutting speed: 1200 m/min
• Pre-balanced design for high-speed machining
• Through-coolant supply
• Standard back boring capability
• Supplied with ENH3-1 insert holder
• See page 101 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

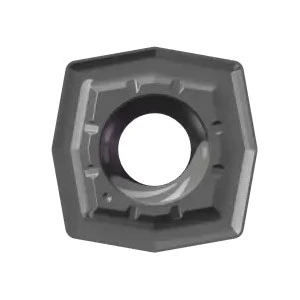

XOMT Carbide Inserts

Diameter Range: 4.9mm – 15.9mm (0.193” – 0.626”)
• Length Range: 2.42mm – 5.04mm (0.095” – 0.198”)
• Material: Carbide

Features and benefits

• Compatible with XO drill systems
• Square geometry with raised center points
• Designed for use as the center insert with the SPMT as its peripheral counterpart
• Initiates the cut and promotes stable chip formation
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

WCMT Type DS Carbide Inserts

Diameter Range: 5.56mm – 12.7mm (0.219” – 0.5”)
• Length Range: 2.38mm – 4.76mm (0.093” – 0.187”)
• Material: Carbide

Features and benefits

• Compatible with WCMT drill systems.
• Trigon geometry with three cutting edges
• Dimpled rake-face design improves chip control and cutting stability
• Optimized for improved chip control and stable drilling performance.
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

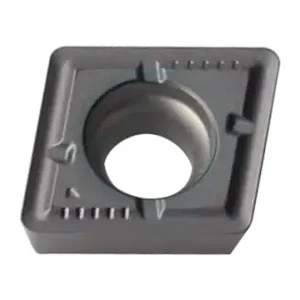

G Carbide Insert

Diameter Range: 4.2mm – 15.2mm (0.165” – 0.598”)
• Thickness Range: 2mm – 6mm (0.079” – 0.236”)
• Material: Carbide

Features and benefits

• Compatible with WDX drill systems
• Single insert design can be used in both the center and peripheral positions by changing the insert orientation
• Rhombic geometry provides cutting edge strength and clearance for drilling applications
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

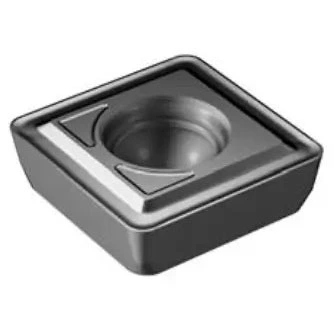

880 Peripheral Inserts

Diameter Range: 4.6mm – 18.6mm (0.181” – 0.732”)
• Thickness Range: 2mm – 5.5mm (0.079” – 0.217”)
• Material: Carbide

Features and benefits

• Designed specifically for the 880 U Drill
• Functions as the peripheral cutting insert
• Produces the final hole diameter and surface finish
• Works in combination with the 880 Center Insert for stable drilling performance
• See pages 36-45 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

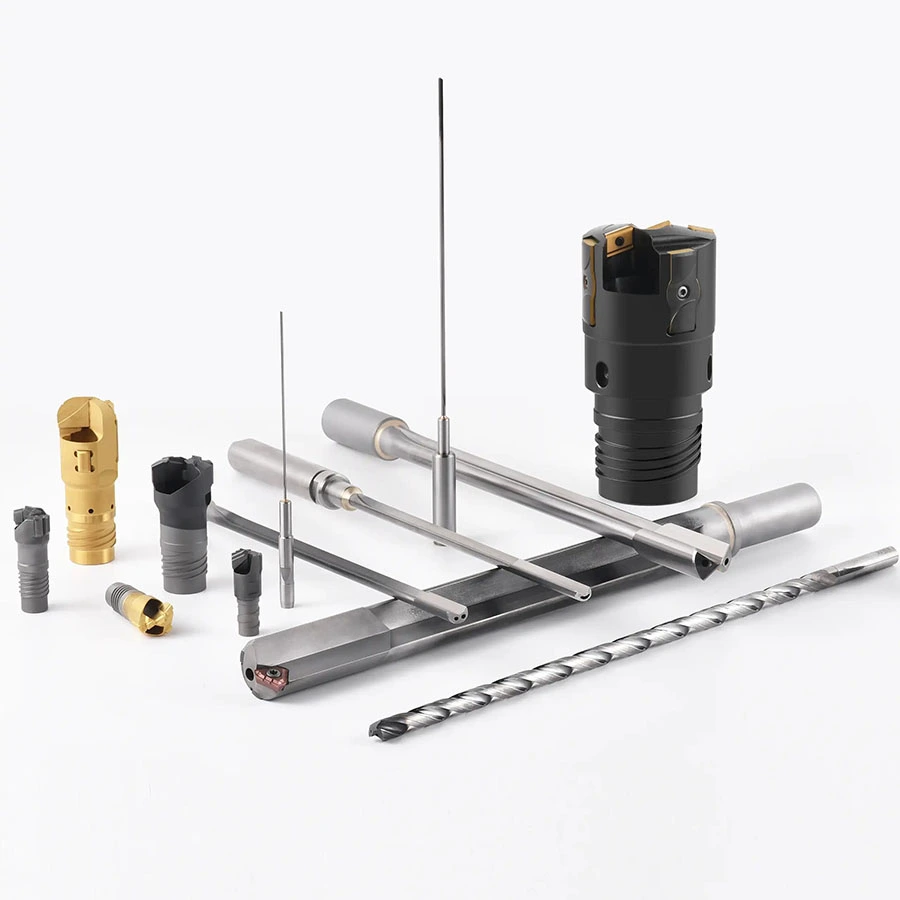

Indexable Insert Gun Drill

• Diameter Range: 12.02mm – 35.02mm (0.551” – 1.654”)
• Length Range: 100mm 2150mm (3.937” – 84.646”)
• Material: H13 Steel

Brazed Gun Drill

Diameter Range: 3mm – 32mm (0.119” – 0.473”)
• Length Range: 235mm – 1800mm (9.252” – 70.866”)
• Material: Carbide

Features and benefits

• Carbide drill tip permanently brazed to a heat-treated drill tube and precision-ground steel shank
• One-piece brazed construction provides a rigid drilling assembly
• Available with different carbide grades and wear-resistant coatings
• Suitable for deep-hole drilling in steel, stainless steel, cast iron, aluminum, and other engineering materials
• Precision-ground guide pads improve hole guidance
• See page 117 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

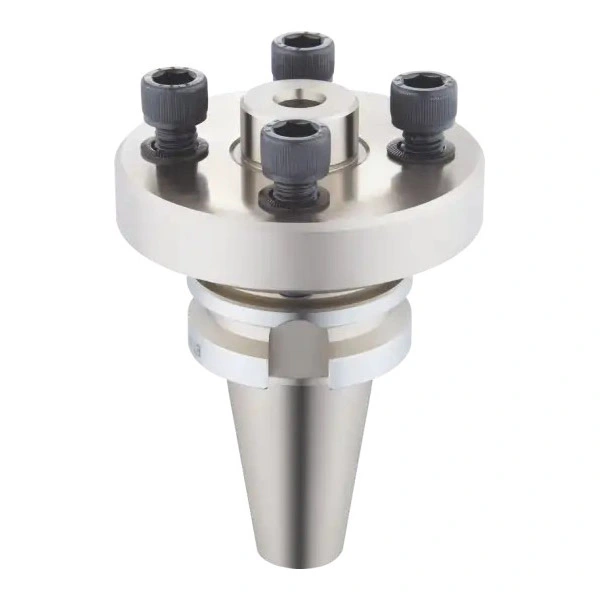

Large Diameter Boring Head Holder

Diameter Range: 100mm (3.937”)
• Length Range: 60mm – 300mm (2.362” – 11.81”)
• Material: H13 Steel

Features and benefits

• Designed for Acckee large-diameter boring heads
• Rigid construction withstands high cutting forces during roughing and finishing
• Four-point clamping system evenly distributes cutting forces
• Four clamping screws improve rigidity and reduce vibration
• See page 108 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

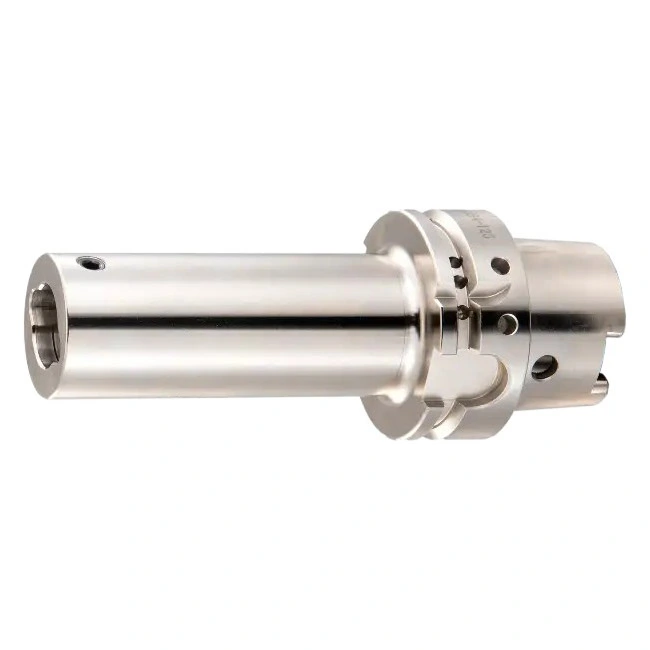

HSK Holder

Diameter Range: 19mm – 63mm (0.788” – 2.48”)
• Length Range: 85mm – 155mm (3.346” – 6.102”)
• Material: H13 Steel

Features and benefits

• Hollow shank interface provides simultaneous taper and face contact for increased rigidity
• Maximum runout: 0.005mm
• H5 bore tolerance
• Balanced to G6.3 at 15,000 RPM
• Optional G2.5 balancing available for higher-speed applications
• Compatible with straight and inclined flat shank tools conforming to DIN 1835-B
• See page 110 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

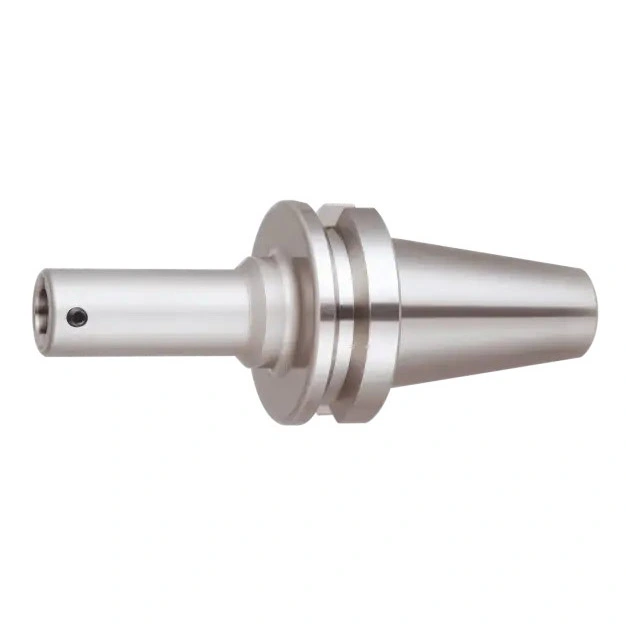

CKB Holder

Diameter Range: 19mm – 63mm (0.748” – 2.48”)
• Length Range: 80mm – 285mm (3.15” – 11.22”)
• Material: H13 Steel

Features and benefits

• Modular interface provides rigid connection between spindle and cutting tool
• Precision interface ensures accurate positioning and reliable clamping
• Available in Type A and Type B
• Type B features a thicker clamping base for increased rigidity and vibration resistance
• See page 111 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

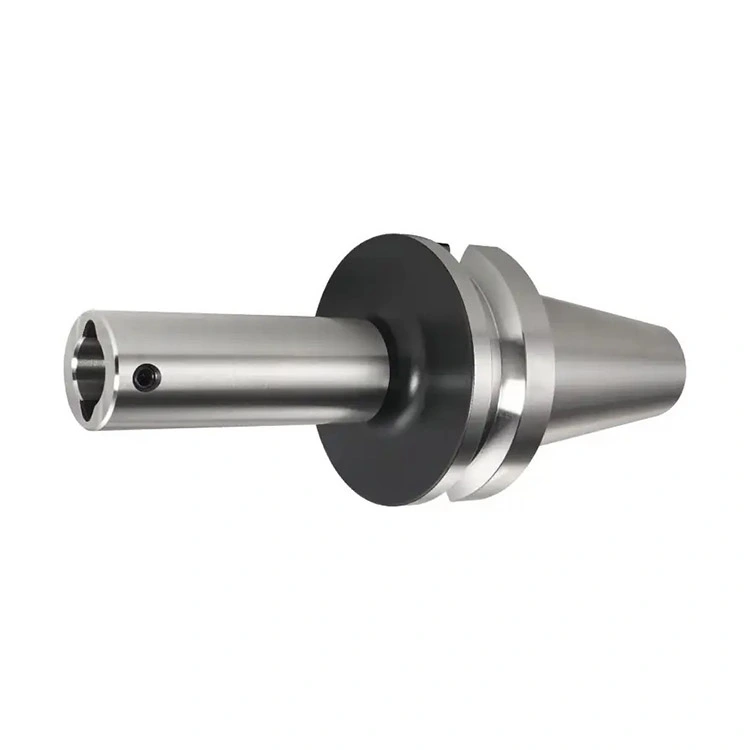

BBT Boring Holder

Diameter Range: 19mm – 64mm (0.748” – 2.519”)
• Length Range: 115mm – 160mm (4.528” – 6.299”)
• Material: H13 Steel

Features and benefits

• Dual-contact spindle interface engages both taper and flange face
• Reduced vibration during high-speed machining
• Single precision clamping screw
• See page 112 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

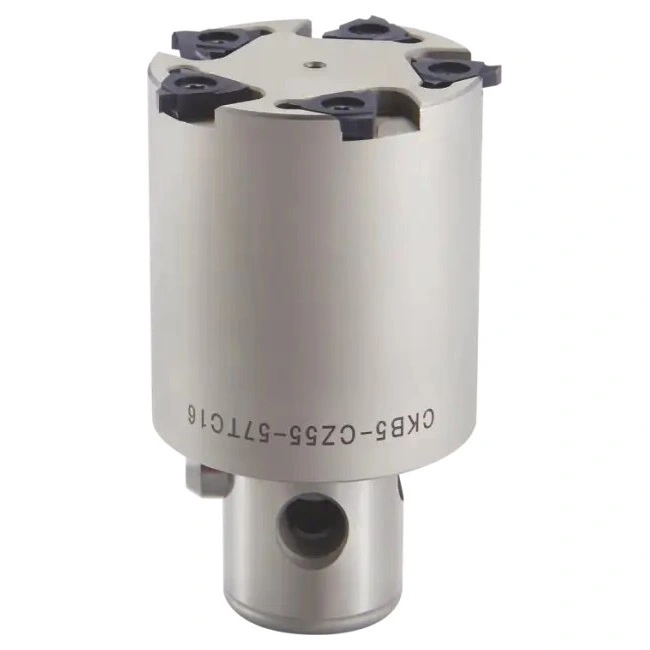

Slot Milling Cutter

Diameter Range: 28mm – 70mm (1.102” – 2.756”)
• Length Range: 35mm – 70mm (1.378” – 2.756”)
• Material: H13 Steel

Features and benefits

• Available with 3 or 5 TGF type indexable carbide inserts
• Suitable for slotting, shoulder milling, and general milling operations
• Mounts directly to the CKB Holder
• See page 115 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

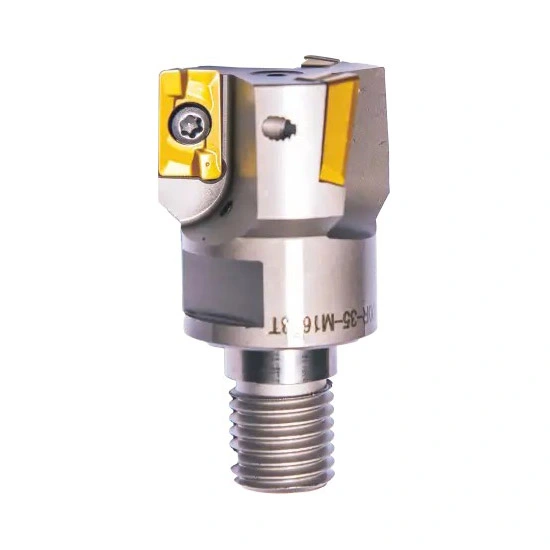

Modular Milling Cutter

Diameter Range: 16mm – 35mm (0.63” – 1.378”)
• Length Range: 25mm – 43mm (0.984” – 1.693”)
• Material: H13 Steel

Features and benefits

• Accommodates 3 indexable APMT type carbide inserts
• Suitable for face milling and general milling operations
• Mounts directly to the CKB Holder
• Modular design allows quick conversion between boring and milling operations
• See page 116 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

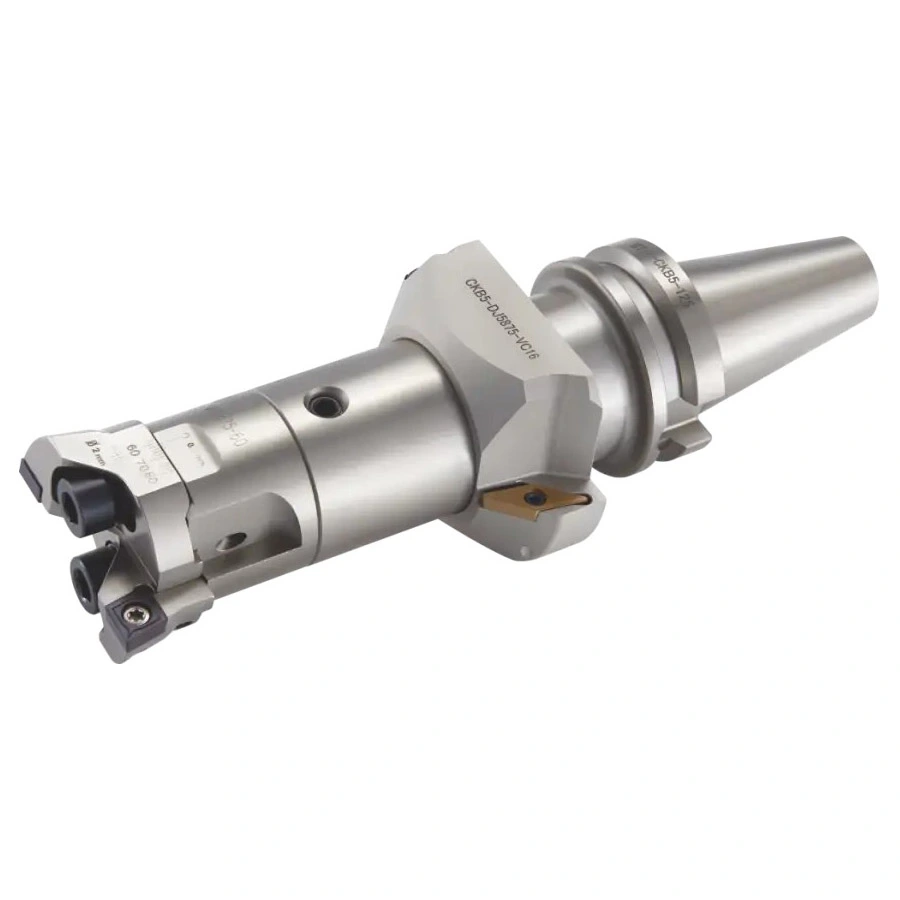

Chamfering Tool with Indexable Insert

Diameter Range: 22mm – 100mm (0.866” – 3.937”)
• Length Range: 20mm – 30mm (0.787” – 1.181”)
• Material: H13 Steel

Features and benefits

• Available with 30° or 45° chamfer angles
• Diamond-shaped VCMT type indexable carbide insert
• Mounts directly to the CKB Holder
• Compatible with CKB rough boring heads for combined boring and chamfering operations
• See page 115 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

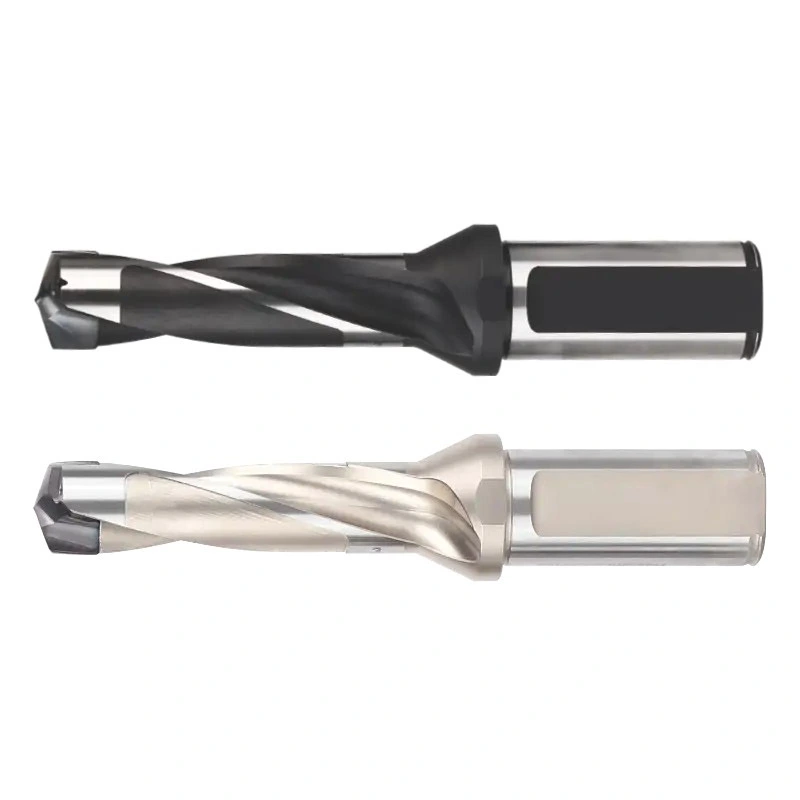

SEM Drill

Diameter Range: 12.5mm – 32.1mm (0.492” – 1.264”)
• Length Range: 1.5XD, 3XD, 5XD, 8XD, 10XD
• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• Features three different materials of exchangeable SEM drill heads: Ac7315 grade TiAlN with PVD multilayer coating, Ac7320 grade TiAlN with PVD coating, and ACPM45 grade with multilayer TiAlN coating.
• The four wall pocket design allows for increased insert and drill life, and simple wrench removal
• Exchangeable drill heads allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow directly to the cutting zone, improving metal removal rates, tool life, and overall productivity.
• See page 51 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

YLMD Max Drill

Diameter Range: 45mm – 180mm (1.772” – 7.087”)
• Length Range: 55mm – 98mm (2.165” – 3.858”)
• Solely available in H13 steel for high precision machining

Features and benefits

• Modular cutter holders accommodate two or three carbide inserts, increasing material removal rates while maintaining excellent cutting stability
• TiN-coated pilot drill provides accurate centering, improved wear resistance, and extended tool life
• Internal coolant channels deliver coolant directly to the cutting zone for enhanced cooling, efficient chip evacuation, and longer insert life
• Indexable inserts with DS geometry of WCMT allow for versatility in workpiece material up to P grade steel
• See page 82 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Track Drill

• Diameter Range: 22mm – 36mm (0.866” – 1.417”)
• Solely available in H13 steel for high precision machining

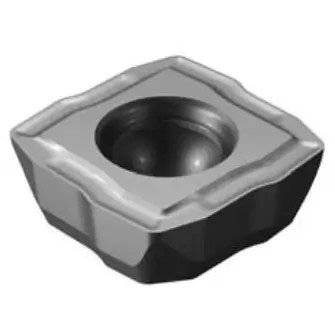

880 Carbide Inserts

Diameter Range: 4.57mm – 17.9mm (0.18” – 0.705”)
• Thickness Range: 2mm – 5.5mm (0.079” – 0.217”)
• Material: Carbide

Features and benefits

• Designed specifically for the 880 U Drill
• Functions as the peripheral cutting insert
• Produces the final hole diameter and surface finish
• Works in combination with the 880 Peripheral Insert for stable drilling performance
• See pages 36-45 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

XCMT Carbide Inserts

Diameter Range: 4.40mm – 17.40mm (0.173” – 0.685”)
• Thickness Range: 1.70mm – 5.56mm (0.067” – 0.219”)
• Material: Carbide

Features and benefits

• Designed for use as the single insert in TCAP drill systems
• 86° rhombic geometry with a 7° relief angle
• Provides a balance of edge strength, clearance, and cutting stability
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SP Carbide Inserts

Diameter Range: 3.5mm – 14.3mm (0.138” – 0.563”)
• Thickness Range: 1.4mm – 5.2mm (0.055” – 0.205”)
• Material: Carbide

Features and benefits

• Square geometry with four straight cutting edges
• Designed for use as the peripheral and center insert in SPGT drilling systems
• Produces a precise final hole diameter and surface finish
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SOMT Carbide Inserts

Diameter Range: 4.9mm – 15mm (0.193” – 0.591”)
• Thickness Range: 2.38mm – 4.8mm (0.094” – 0.189”)
• Material: Carbide

Features and benefits

• Compatible with SOMT drill systems, as a peripheral and center insert
• Concave-sided square geometry with four cutting edges
• Promotes smooth chip flow while maintaining high edge strength
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SPMT Carbide Inserts

Diameter Range: 4.7mm – 15.2mm (0.185” – 0.598”)
• Thickness Range: 2.4mm – 4.98mm (0.094” – 0.196”)
• Material: Carbide

Features and benefits

• Compatible with XO drill systems.
• Square geometry with four straight cutting edges
• Designed for use as the peripheral insert with the XOMT as its center counterpart
• Produces a precise final hole diameter and surface finish
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

WCMT Carbide Inserts

Diameter Range: 4.57mm – 12.7mm (0.18” – 0.5”)
• Thickness Range: 1.59mm – 4.76mm (0.063” – 0.187”)
• Material: Carbide

Features and benefits

• Trigon geometry provides lower cutting resistance and smooth cutting action for high drilling efficiency.
• Three usable cutting edges provide a balance of productivity and insert economy.
• Suitable for general-purpose drilling in steel, stainless steel, and cast iron.
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SK BORING HOLDER

Diameter Range: 19mm – 63mm (0.748” – 2.48”)
• Length Range: 80mm – 215mm (3.15” – 8.465”)
• Material: H13 Steel

Features and benefits

• SK taper interface provides accurate positioning and high concentricity
• Balanced design suitable for high-speed machining
• Optional extension increases tool length by 30mm–100mm
• Extension provides additional reach while maintaining rigidity
• See page 109 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

BT Boring Holder

Diameter Range: 95mm (3.74”)
• Length Range: 70mm – 400mm (2.756” – 15.748”)
• Material: H13 Steel

Features and benefits

• Standard BT spindle interface
• Precision-ground taper provides accurate positioning
• See page 110 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Morse Taper Holder

Diameter Range: 25mm – 40mm (0.984” – 1.575”)
• Length Range: 100mm – 115mm (3.937” – 4.528”)
• Material: H13 Steel

Features and benefits

• Designed for Morse taper shank tools
• Self-centering taper interface provides accurate alignment and high rigidity
• Three precision clamping screws improve holding strength and machining stability
• Suitable for drilling and boring applications
• See page 91 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Weldon Tool Holder

Diameter Range: 20mm – 40mm (0.787” – 1.575”)
• Length Range: 75mm – 105mm (2.953” – 4.134”)
• Material: H13 Steel

Features and benefits

• Weldon shank interface provides secure clamping and reliable torque transmission
• Compatible with drills, boring tools, and other cylindrical shank tooling
• Two precision clamping screws improve tool retention and resistance to movement under heavy cutting loads
• Allows quick tool changes with repeatable positioning
• See page 91 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

0850 Boring Head Set

Diameter Range: 8mm – 50mm (0.315” – 1.969”)
• Length Range: 80mm – 145mm (3.15” – 5.709”)
• Material: H13 Steel

Features and benefits

• Includes eight interchangeable carbide insert holders
• Vernier adjustment with 0.01mm per division
• Interchangeable holders reduce tooling inventory
• See page 105 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

2084 Boring Head Set

Diameter Range: 8mm – 203mm (0.315” – 7.992”)
• Length Range: 52mm (2.047”)
• Material: H13 Steel

Features and benefits

• PAT. Diameter Range: 8mm – 203mm
• Counter Boring Range: 112mm – 203mm
• 12-piece modular system
• Includes eight interchangeable carbide insert holders
• Five top-mounted holders for small diameters
• Three side-mounted holders for large diameter and back boring
• Diameter adjustment of 0.01mm per division
• See page 104 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

High Accuracy Precision Boring Head

Diameter Range: 16mm – 60mm (0.63” – 2.362”)
• Length Range: 100mm – 350mm (3.937” – 13.78”)
• Material: H13 Steel

Features and benefits

• Modular extension system supports boring depths up to 250mm
• Single-insert precision boring head
• Modular design maintains rigidity during deep-hole boring
• See page 103 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Large Diameter Finish Boring Head

Diameter Range: 151mm – 750mm (5.945” – 29.528”)
• Length Range: 84mm (3.307”)
• Material: H13 Steel

Features and benefits

• PAT. Diameter Range: 151mm – 750mm
• Diameter adjustment with 0.01mm per division
• Dual-arm design with one cutting arm and one counterweight
• Pre-balanced design minimizes vibration during finishing
• See page 106 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

ABS EWN Finish Boring Head

Diameter Range: 20mm – 150mm (0.787” – 5.906”)
• Length Range: 35.5mm – 101mm (1.398” – 3.976”)
• Material: H13 Steel

Features and benefits

• 85mm cutting length
• Precision vernier adjustment with 0.01mm per division
• Through-coolant supply
• Standard back boring capability
• Supplied with ENH3-1 insert holder
• See page 102 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Large Diameter Rough Boring Head

Diameter Range: 151mm – 750mm (5.945” – 29.528”)
• Length Range: 80mm (3.15”)
• Material: H13 Steel

Features and benefits

• Applicable for steel and aluminum
• Designed for heavy-duty large diameter rough boring
• Suitable for interrupted cuts, uneven surfaces, cross bores, edge starts, welded seams, and stacked plates
• See page 98 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

TWN Rough Boring Head

Diameter Range: 20mm – 150mm (0.787” – 5.906”)
• Length Range: 35mm – 75mm (1.378” – 2.953”)
• Material: H13 Steel

Features and benefits

• One boring head accommodates two cartridge sizes, reducing tooling inventory
• Three-sided cartridge support provides high rigidity and vibration resistance
• Full face-contact cartridge clamping improves load distribution and clamping strength
• Cutter runout less than 0.02mm
• Supports 90° blind-hole boring and 75° through-hole boring
• See page 96 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Deep Hole Drill

Diameter Range: 1.52mm – 10mm (0.06” – 0.394”)
• Length Range: 160mm – 295mm (6.299” – 11.614”)
• Material: Carbide

Features and benefits

• Solid carbide construction integrates the drill tip, body, and shank into a single piece
• One-piece design eliminates welded joints
• Internal coolant channels deliver coolant directly to the cutting edge
• Designed for deep-hole drilling in steel, stainless steel, cast iron, and aluminum
• See page 122 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

WDX U Drill Bits

Diameter Range: 15mm – 35mm (0.591” – 1.378”)
• Length Range: 2XD
• Solely available in H13 steel for high precision machining

Features and benefits

• Featuring a peripheral and center edge which use the same WDXT insert with varying orientations
• The Y type center outlet allows for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 26 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Inch U Drill Sets

Diameter Range: 0.5" – 2.5" (12.7mm – 63.5mm)
• Length Range: 3XD
• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• Dimensions in standard imperial unit sizes, suitable for American made machines
• Compatible with SPMT, WCMT, and SOMT inserts
• Featuring a Y type center outlet for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 31 of our catalogue under the "Download" tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

10D U Drill

It is our new products for China ACCKEE 10D U Drill for deep hole. These drills are constructed with only the highest quality materials-H13 , making them incredibly durable and long-lasting.

TCAP U Drill

Diameter Range: 8mm – 32mm (0.315” – 1.26”)
• Length Range: 2.25XD – 3XD
• Solely available in H13 steel for high precision machining

Features and benefits

• Featuring a singular XCMT insert for small diameters and lower maintenance
• The Y type center outlet allows for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• One coolant channel allows for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 29 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

XO U Drill

Diameter Range: 12mm – 35mm (0.472” – 1.378”)
• Length Range: 2XD – 5XD
• Solely available in H13 steel for high precision machining

Features and benefits

• Featuring a peripheral edge with a SPMT insert and a center edge with an XOMT insert to combine the benefits of a sharp flat outer edge and pointed center
• The Y type center outlet allows for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 27 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Crownioc Drill

Diameter Range: 12mm – 37mm (0.472” – 1.457”)
• Length Range: 3XD, 5XD, 7XD, 10XD
• Solely available in 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• Features exchangeable carbide drill tips manufactured from WPP25 fine-grained carbide substrate with an AlTiN (Aluminum Titanium Nitride) coating applied using HiPIMS (High-Power Impulse Magnetron Sputtering) technology
• A gold-colored ZrN (Zirconium Nitride) top coating serves as a visual wear indicator, allowing operators to quickly identify insert wear and maximize tool utilization
• Designed primarily for drilling ISO P high-strength steels up to 43 HRC, with secondary applications in ISO K cast iron
• Optimal for through drilling, blind drilling, and stacked plate drilling
• The exchangeable drill tip design supports drilling depths of up to 10×D without pilot drilling
• See page 47 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

880 U Drill

Diameter Range: 12mm – 63mm (0.472” – 2.48”)
• Length Range: 2XD – 5XD
• Solely available in H13 steel for extremely high precision machining

Features and benefits

• Featuring peripheral and center PVD coated carbide inserts for difficult to machine materials, such as slewing bearings and ASTM A572 Grade 50
• The S type double helix center outlet allows for larger chip evacuation, higher strength, and greater fatigue resistance
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 33 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SOMT U Drill

Diameter Range: 13mm – 40mm (0.512” – 1.575”)
• Length Range: 2XD – 5XD
• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• The thicker cross-section and angled shape of the SOMT insert is optimal for interrupted cuts and heavy-duty applications
• Featuring a Y type center outlet for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See pages 5 and 18 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

SP U Drill

Diameter Range: 8.5mm – 40mm (0.335” – 1.575”)
• Length Range: 2XD – 5XD
• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• The flat shape of the SP insert allows for a sharper cutting edge, and better chip control
• Featuring a Y type center outlet for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See pages 1 and 14 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

WC U Drill

Diameter Range: 13mm – 40mm (0.512” – 1.575”)
• Length Range: 2XD – 5XD
• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• The trigon shape of the WCMT insert allows for lower cutting resistance and higher drilling efficiency, optimal for through-hole drilling
• Featuring a Y type center outlet for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See pages 10 and 22 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
