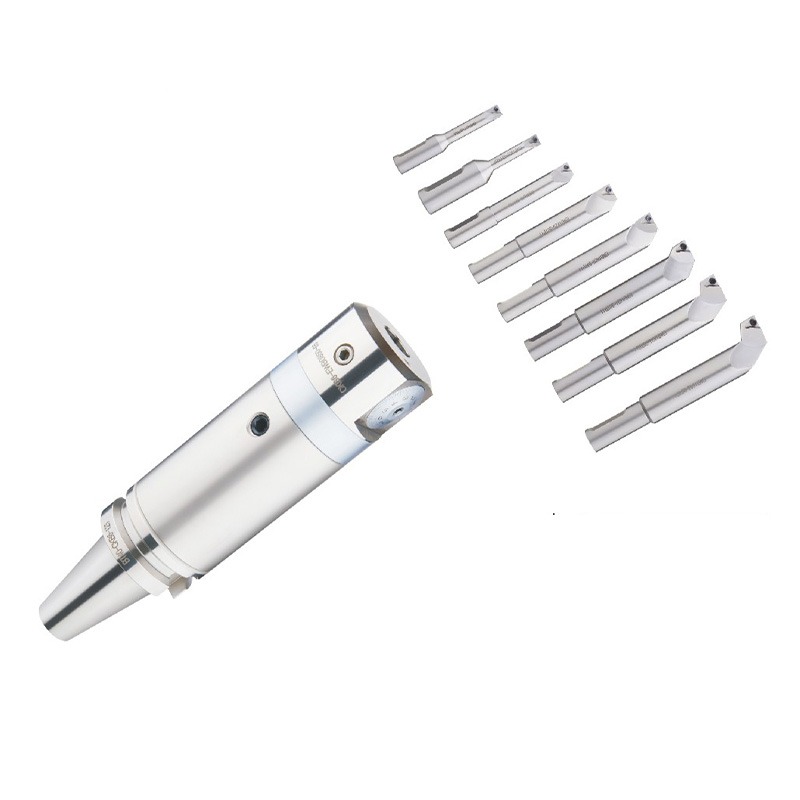

0850 Boring Head Set

Diameter Range: 8mm – 50mm (0.315” – 1.969”)
• Length Range: 80mm – 145mm (3.15” – 5.709”)
• Material: H13 Steel

Features and benefits

• Includes eight interchangeable carbide insert holders
• Vernier adjustment with 0.01mm per division
• Interchangeable holders reduce tooling inventory
• See page 105 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

8 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Length (mm)	Insert	Cutter Block Screw	Mass (kg)	Cutter Block Wrench	Cutting Depth (mm)
08–15	16	80	TB..0601	M2.2*5	0.11	T7	32
12–19	16	98	TP..0902	M2.5*6	0.12	T8	50
16–23	16	115	TP..0902	M2.5*6	0.18	T8	65
20–27	16	135	TP..1103	M3*7	0.29	T8	85
25–32	16	145	TP..1103	M3*7	0.37	T8	90
31–38	16	145	TP..1103	M3*7	0.47	T8	90
37–44	16	145	TP..1103	M3*7	0.58	T8	90
43–50	16	145	TP..1103	M3*7	0.65	T8	90
