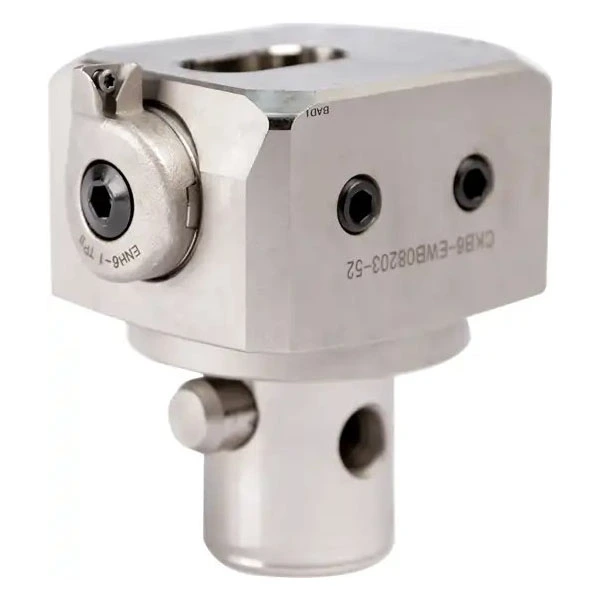

2084 Boring Head Set
Diameter Range: 8mm – 203mm (0.315” – 7.992”)
• Length Range: 52mm (2.047”)
• Material: H13 Steel
Features and benefits
• PAT. Diameter Range: 8mm – 203mm
• Counter Boring Range: 112mm – 203mm

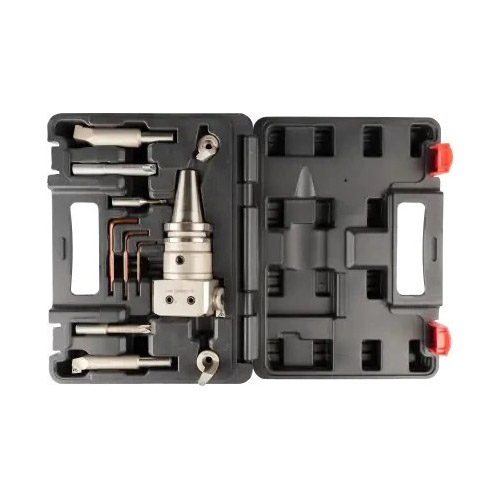

• 12-piece modular system
• Includes eight interchangeable carbide insert holders
• Five top-mounted holders for small diameters

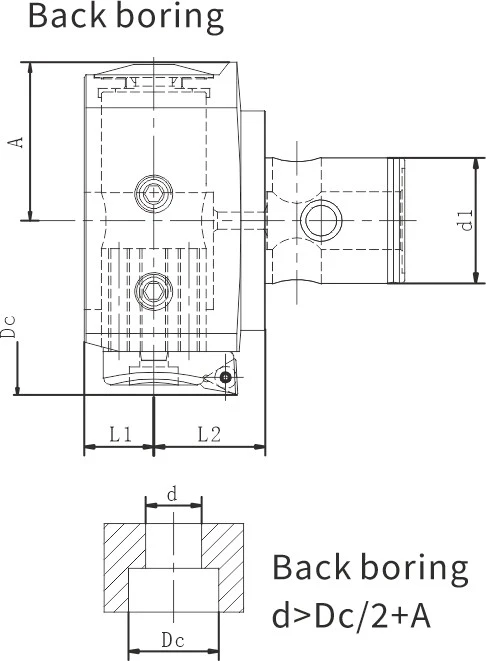

• Three side-mounted holders for large diameter and back boring
• Diameter adjustment of 0.01mm per division
• See page 104 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

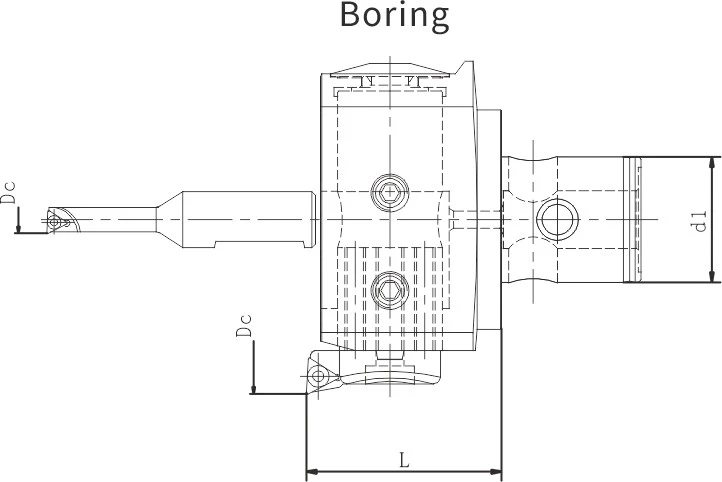

Dimensions & Technical Specifications
1 available configurations
| Cutting Diameter (mm) | Holding Diameter (mm) | Length (mm) | Insert | Cutter Block | Cutter Block Screw | Mass (kg) | Cutter Block Wrench | Cutting Depth (mm) |
|---|---|---|---|---|---|---|---|---|
| 08–43 | 63 | 52 | TB..0601 | YBJ1608 | M2.2×5 | 0.11 | T7 | 32 |
