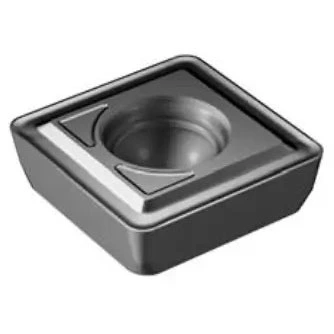

880 Peripheral Inserts

Diameter Range: 4.6mm – 18.6mm (0.181” – 0.732”)
• Thickness Range: 2mm – 5.5mm (0.079” – 0.217”)
• Material: Carbide

Features and benefits

• Designed specifically for the 880 U Drill
• Functions as the peripheral cutting insert
• Produces the final hole diameter and surface finish
• Works in combination with the 880 Center Insert for stable drilling performance
• See pages 36-45 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

34 available configurations

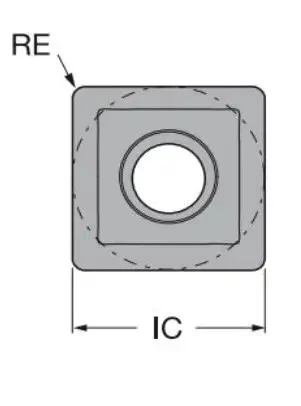

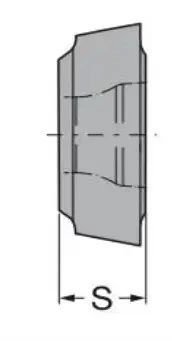

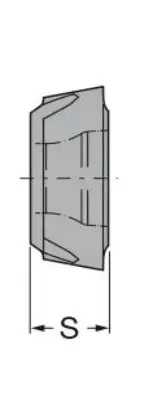

Edge Length (L) (mm) Insert Dia. (IC) (mm) Thickness (s) (mm) Edge tip (r) (mm)
4.6 4.6 2 0.4
4.6 4.6 2 0.4
5.1 5.1 2.4 0.4
5.1 5.1 2.4 0.5
5.1 5.1 2.4 0.5
5.1 5.1 2.4 0.5
6 6 2.6 0.5
6 6 2.6 0.6
6 6 2.6 0.6
6 6 2.6 0.6
7.4 7.4 2.8 0.5
7.4 7.4 2.8 0.7
7.4 7.4 2.8 0.7
7.4 7.4 2.8 0.7
8.9 8.9 3 0.5
8.9 8.9 3 0.8
8.9 8.9 3 0.8
8.9 8.9 3 0.8
10.7 10.7 3.5 0.6
10.7 10.7 3.5 0.8
10.7 10.7 3.5 0.8
10.7 10.7 3.5 1
12.7 12.7 4 0.6
12.7 12.7 4 1
12.7 12.7 4 1
12.7 12.7 4 1.2
15.5 15.5 4.5 0.8
15.5 15.5 4.5 1
15.5 15.5 4.5 1
15.5 15.5 4.5 1.2
18.6 18.6 5.5 0.8
18.6 18.6 5.5 1
18.6 18.6 5.5 1
18.6 18.6 5.5 1.2
