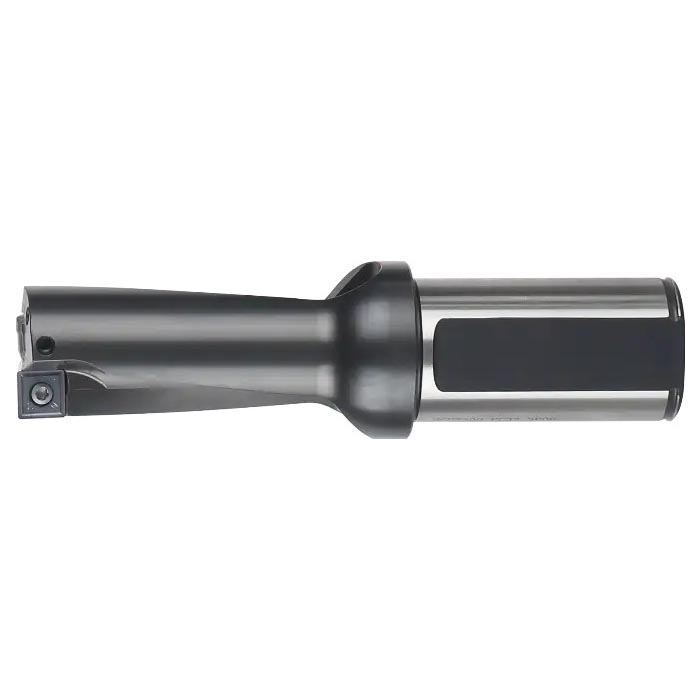

880 U Drill

Diameter Range: 12mm – 63mm (0.472” – 2.48”)
• Length Range: 2XD – 5XD
• Solely available in H13 steel for extremely high precision machining

Features and benefits

• Featuring peripheral and center PVD coated carbide inserts for difficult to machine materials, such as slewing bearings and ASTM A572 Grade 50
• The S type double helix center outlet allows for larger chip evacuation, higher strength, and greater fatigue resistance
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 33 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

269 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Total Length (mm)	Cutting Length (mm)	Holding Length (mm)	XD Length	Applicable Insert
12	20	95	24	50	2	SC01
12.5	20	96	25	50	2	SC01
13	20	97	26	50	2	SC01
13.5	20	97	27	50	2	SC01
14	20	94	31	50	2	SC02
14.5	20	96	33	50	2	SC02
15	20	97	34	50	2	SC02
15.5	20	99	36.26	50	2	SC02
16	20	101	36.33	50	2	SC02
16.5	20	102	37.51	50	2	SC02
17	25	109	38.45	56	2	SC03
17.5	25	111	40.52	56	2	SC03
18	25	112	40.27	56	2	SC03
18.5	25	113	41.39	56	2	SC03
18.8	25	112	40.4	56	2	SC03
19	25	114	42.52	56	2	SC03
19.5	25	116	44.66	56	2	SC03
20	25	117	44.2	56	2	SC04
20.5	25	120	46.39	56	2	SC04
21	25	120	46.59	56	2	SC04
21.5	25	121	47.8	56	2	SC04
22	25	122	48	56	2	SC04
23	25	125	51.48	56	2	SC04
24	25	127	53.21	56	2	SC05
25	25	130	56.13	56	2	SC05
26	32	137	56.6	60	2	SC05
27	32	139	59.49	60	2	SC05
28	32	142	60.79	60	2	SC05
29	32	144	62.54	60	2	SC05
30	32	147	65.1	60	2	SC05
31	40	160	66.75	70	2	SC06
32	40	162	68.18	70	2	SC06
33	40	165	70.74	70	2	SC06
34	40	168	73.43	70	2	SC06
35	40	171	76.24	70	2	SC06
36	40	174	77.35	70	2	SC07
37	40	175	79	70	2	SC07
38	40	178	80.37	70	2	SC07
39	40	180	82.53	70	2	SC07
40	40	183	85.83	70	2	SC07
41	40	187	90.75	70	2	SC07
42	40	189	93.74	70	2	SC07
43	40	192	91.12	70	2	SC07
44	40	194	93.23	70	2	SC08
45	40	197	95.33	70	2	SC08
46	40	200	98.82	70	2	SC08
47	40	202	101.34	70	2	SC08
48	40	205	104.88	70	2	SC08
49	40	207	107.44	70	2	SC08
50	40	210	105.46	70	2	SC08
51	40	214	108.78	70	2	SC08
52	40	216	110.37	70	2	SC08
53	40	219	113.41	70	2	SC09
54	40	221	114.73	70	2	SC09
55	40	224	116.67	70	2	SC09
56	40	227	118.52	70	2	SC09
57	40	229	120.68	70	2	SC09
58	40	232	122.93	70	2	SC09
59	40	234	124.85	70	2	SC09
60	40	237	126.6	70	2	SC09
61	40	241	129.8	70	2	SC09
62	40	243	131.55	70	2	SC09
63	40	246	133.6	70	2	SC09
12	20	107	36	50	3	SC01
12.5	20	108.5	37.5	50	3	SC01
13	20	110	39	50	3	SC01
13.5	20	110.5	40.5	50	3	SC01
14	20	108	44.88	50	3	SC02
14.5	20	110	47	50	3	SC02
15	20	112	49.12	50	3	SC02
15.5	20	114	51.25	50	3	SC02
16	20	116	51.33	50	3	SC02
16.5	20	118	53.51	50	3	SC03
17	25	125	54.45	56	3	SC03
17.5	25	128	57.52	56	3	SC03
18	25	129	57.27	56	3	SC03
18.5	25	131	59.39	56	3	SC03
19	25	132	60.52	56	3	SC03
19.25	25	135	63.57	56	3	SC03
19.5	25	135	63.66	56	3	SC03
20	25	137	63.2	56	3	SC04
20.5	25	138	64.39	56	3	SC04
21	25	140	66.59	56	3	SC04
21.5	25	142	68.8	56	3	SC04
22	25	143	69.02	56	3	SC04
22.5	25	146	72.24	56	3	SC04
23	25	147	73.48	56	3	SC04
23.5	25	149	75.72	56	3	SC04
24	25	151	77.21	56	3	SC05
24.5	25	153	79.5	56	3	SC05
25	25	155	81.81	56	3	SC05
25	25	155	81.81	56	3	SC05
25.5	25	156	83.13	56	3	SC05
26	32	162	81.6	60	3	SC05
26.5	32	164	83.79	60	3	SC05
27	32	165	85.49	60	3	SC05
27.5	32	168	88.69	60	3	SC05
28	32	169	86.65	60	3	SC05
28.5	32	171	88.95	60	3	SC05
29	32	172	90.25	60	3	SC05
29.5	32	175	93.57	60	3	SC05
30	39.6	177	95.11	60	3	SC06
30.5	39.6	178	96.11	60	3	SC06
31	48	191	97.75	70	3	SC06
31.5	48	192	98.94	70	3	SC06
32	48	194	100.18	70	3	SC06
32.5	48	196	102.39	70	3	SC06
33	48	198	103.74	70	3	SC06
33.5	48	200	105.98	70	3	SC06
34	48	201	106.43	70	3	SC06
34.5	48	204	109.7	70	3	SC06
35	48	205	110.24	70	3	SC06
35.5	48	207	112.54	70	3	SC06
36	48	209	112.35	70	3	SC07
37	48	212	115.9	70	3	SC07
38	48	216	118.37	70	3	SC07
38.35	48	217.5	119.75	70	3	SC07
38.5	48	217.5	119.94	70	3	SC07
39	48	219	121.54	70	3	SC07
39.5	48	221	123.39	70	3	SC07
40	48	223	125.83	70	3	SC07
40.5	48	223	127.89	70	3	SC07
41	48	227	127.82	70	3	SC07
42	48	230	130.88	70	3	SC07
43	49.5	234	133.12	70	3	SC07
44	49.5	237	136.54	70	3	SC08
45	49.5	242	140.57	70	3	SC08
46	49.5	246	144	70	3	SC08
47	62.5	249	146.07	70	3	SC08
48	62.5	253	149.33	70	3	SC08
49	62.5	256	152.41	70	3	SC08
49.5	59	258	153.7	70	3	SC08
50	62.5	260	155.46	70	3	SC08
51	62.5	264	158.29	70	3	SC08
52	62.5	267	161.37	70	3	SC08
53	62.5	271	164.4	70	3	SC09
54	62.5	274	167.73	70	3	SC09
55	62.5	279	171.67	70	3	SC09
56	62.5	283	174.52	70	3	SC09
57	62.5	286	177.68	70	3	SC09
58	62.5	290	180.93	70	3	SC09
59	62.5	293	183.85	70	3	SC09
60	62.5	297	186.89	70	3	SC09
61	62.5	302	190.8	70	3	SC09
62	62.5	305	193.78	70	3	SC09
63	62.5	309	196.6	70	3	SC09
12	20	119	48	50	4	SC01
12.5	20	121	50	50	4	SC01
13	20	123	52	50	4	SC01
13.5	20	124	54	50	4	SC01
14	20	122	59.01	50	4	SC02
14.5	20	125	62.13	50	4	SC02
15	20	127	64.87	50	4	SC02
15.5	20	129	66.4	50	4	SC02
16	20	132	67.51	50	4	SC02
16.5	20	134	69.7	50	4	SC03
17	25	142	71.54	56	4	SC03
17.5	25	145	73.79	56	4	SC03
18	25	147	75.4	56	4	SC03
18.5	25	149	77.53	56	4	SC03
19	25	151	79.66	56	4	SC03
19.25	25	155	83.7	56	4	SC03
19.5	25	155	83.8	56	4	SC03
20	25	157	83.38	56	4	SC04
20.5	25	160	86.58	56	4	SC04
21	25	161	89.78	56	4	SC04
21.5	25	163.5	89.56	56	4	SC04
22	25	165	91.22	56	4	SC04
22.5	25	168	93.63	56	4	SC04
23	25	170	95.9	56	4	SC04
24	25	175	101.48	56	4	SC05
24.5	25	177.5	102.36	56	4	SC05
25	25	180	107.1	56	4	SC05
25.25	25	180	107.24	56	4	SC05
26	32	188	107.79	60	4	SC05
26.5	32	190	109.98	60	4	SC05
27	32	192	112.19	60	4	SC05
28	32	197	115.66	60	4	SC05
29	32	201	120.24	60	4	SC05
29.5	32	204	123.2	60	4	SC05
30	32	207	125.5	60	4	SC06
31	40	222	128	70	4	SC06
32	40	226	131.98	70	4	SC06
33	40	231	136.61	70	4	SC06
34	40	235	140.74	70	4	SC06
35	40	240	145.58	70	4	SC06
36	40	245	148.89	70	4	SC07
37	40	249	151.71	70	4	SC07
38	40	254	157.09	70	4	SC07
39	40	258	161.85	70	4	SC07
40	40	263	167.65	70	4	SC07
41	40	268	168.69	70	4	SC07
42	50	282	172.18	80	4	SC07
43	50	287	176	80	4	SC07
44	50	291	180.04	80	4	SC08
45	50	297	185.224	80	4	SC08
46	50	302	188.97	80	4	SC08
47	50	306	193.1	80	4	SC08
48	50	311	197	80	4	SC08
49	50	315	201.18	80	4	SC08
50	50	320	204.98	80	4	SC08
50.5	50	322	208.229	80	4	SC08
51	50	325	209.17	80	4	SC08
52	50	329	213.03	80	4	SC08
53	50	333	218	80	4	SC09
54	50	338	221.98	80	4	SC09
55	50	343	226	80	4	SC09
56	50	349	230.68	80	4	SC09
57	50	353	234	80	4	SC09
58	50	357	238.95	80	4	SC09
59	50	362	242	80	4	SC09
60	50	367	246	80	4	SC09
61	50	372	250	80	4	SC09
62	50	376	254	80	4	SC09
63	50	381	258	80	4	SC09
12	20	131	60	50	5	SC01
12.5	20	134	62.5	50	5	SC01
13	20	136	65	50	5	SC01
13.5	20	138	67.5	50	5	SC01
14	20	136	73.65	50	5	SC02
14.5	20	139	76.76	50	5	SC02
15	20	142	79.26	50	5	SC02
15.5	20	145	82.4	50	5	SC02
16	20	148	83.5	50	5	SC02
16.5	20	151	86.7	50	5	SC03
17	25	159	88	56	5	SC03
17.5	25	163	91.27	56	5	SC03
18	25	165	93.4	56	5	SC03
18.5	25	168	96.52	56	5	SC03
19	25	170	98.66	56	5	SC03
19.25	25	174	102.73	56	5	SC03
19.5	25	174	102.8	56	5	SC03
20	25	177	103.38	56	5	SC04
20.5	25	179	105.57	56	5	SC04
21	25	182	108.78	56	5	SC04
21.5	25	185	111	56	5	SC04
22	25	187	113.22	56	5	SC04
23	25	194	119.89	56	5	SC04
24	25	199	125.47	56	5	SC05
25	25	205	132.09	56	5	SC05
25.25	25	205	132.22	56	5	SC05
26	32	214	133.78	60	5	SC05
26.5	32	217	136.49	60	5	SC05
27	32	219	139.18	60	5	SC05
28	32	225	143.28	60	5	SC05
29	32	231	149.53	60	5	SC05
30	32	237	155.49	60	5	SC06
31	40	253	159	70	5	SC06
32	40	258	164.42	70	5	SC06
33	40	264	169.2	70	5	SC06
34	40	270	175.73	70	5	SC06
35	40	276	181.57	70	5	SC06
36	40	282	186	70	5	SC07
37	40	286	189	70	5	SC07
38	40	292	195.08	70	5	SC07
39	40	298	201.84	70	5	SC07
40	40	304	208.64	70	5	SC07
41	40	310	215.51	70	5	SC07
42	50	325	219.85	80	5	SC07
43	50	331	236.16	80	5	SC07
44	50	335	223.99	80	5	SC08
45	50	342	230.14	80	5	SC08
46	50	348	234.97	80	5	SC08
47	50	353	240.1	80	5	SC08
48	50	359	245	80	5	SC08
49	50	364	250.18	80	5	SC08
50	50	370	254.92	80	5	SC08
51	50	376	259.47	80	5	SC08
52	50	381	265	80	5	SC08
