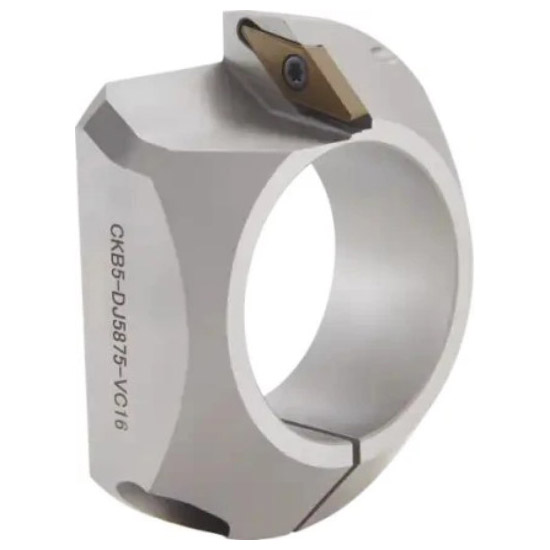

Chamfering Tool with Indexable Insert
Diameter Range: 22mm – 100mm (0.866” – 3.937”)
• Length Range: 20mm – 30mm (0.787” – 1.181”)
• Material: H13 Steel
Features and benefits
• Available with 30° or 45° chamfer angles
• Diamond-shaped VCMT type indexable carbide insert
• Mounts directly to the CKB Holder

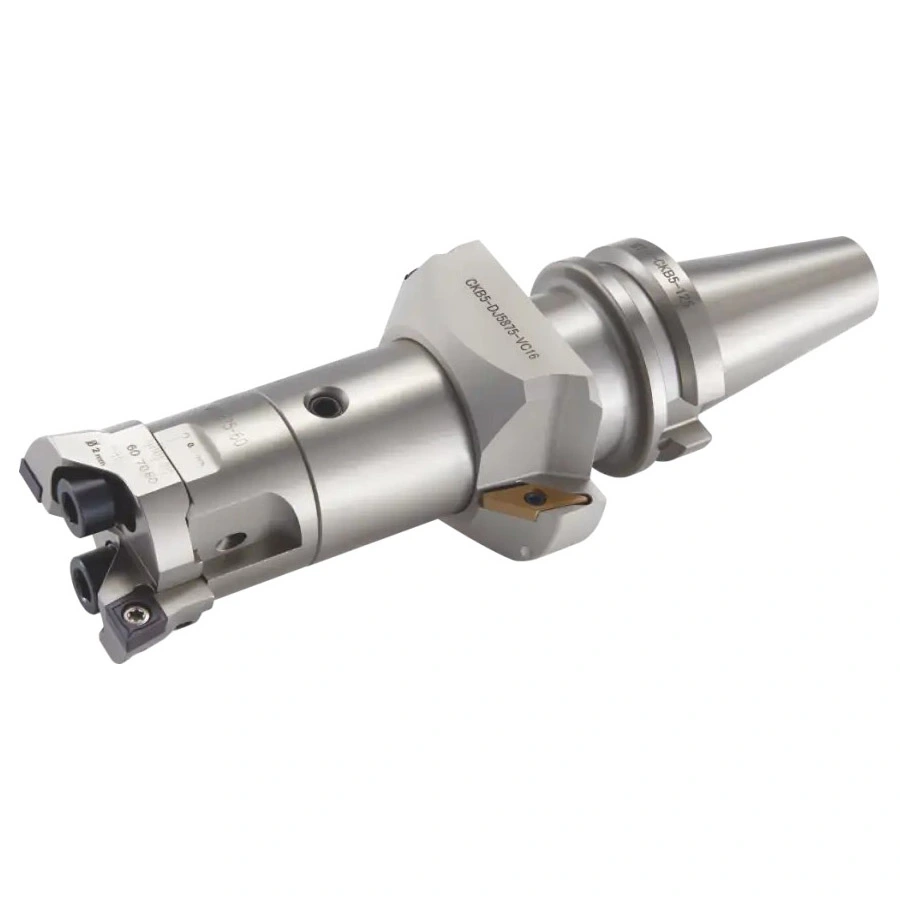

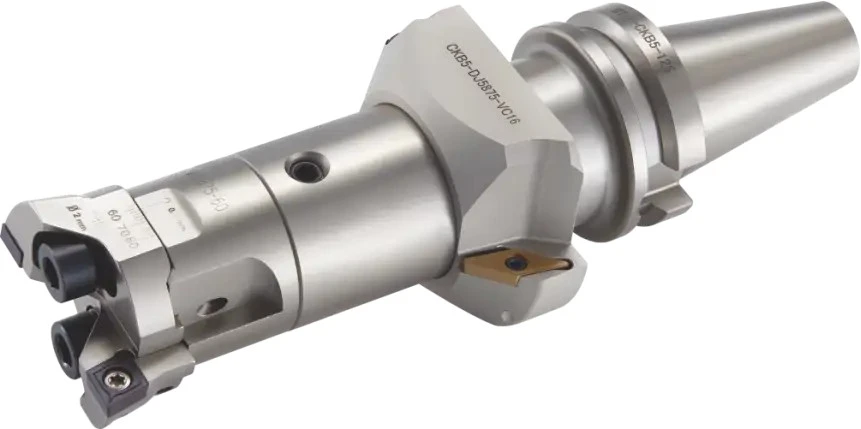

• Compatible with CKB rough boring heads for combined boring and chamfering operations
• See page 115 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

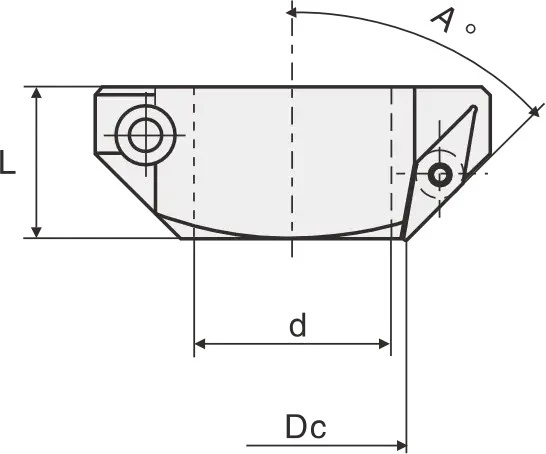

Dimensions & Technical Specifications
14 available configurations
| Cutting Diameter (mm) | Piece Diameter (mm) | Length (mm) | Insert | Angle (deg) |
|---|---|---|---|---|
| 22-28 | 19 | 20 | VCMT110304 | 45 |
| 24-30 | 19 | 20 | VCMT110304 | 30 |
| 27-35 | 24 | 20 | VCMT110304 | 45 |
| 29-37 | 24 | 20 | VCMT110304 | 30 |
| 30-38 | 24 | 20 | VCMT110304 | 45 |
| 32-40 | 24 | 20 | VCMT110304 | 30 |
| 39-49 | 31 | 20 | VCMT110304 | 45 |
| 41-51 | 31 | 20 | VCMT110304 | 30 |
| 48-61 | 39 | 30 | VCMT160408 | 45 |
| 50-63 | 39 | 30 | VCMT160408 | 30 |
| 60-77 | 49 | 30 | VCMT160408 | 45 |
| 62-79 | 49 | 30 | VCMT160408 | 30 |
| 76-98 | 63 | 30 | VCMT160408 | 45 |
| 78-100 | 63 | 30 | VCMT160408 | 30 |
