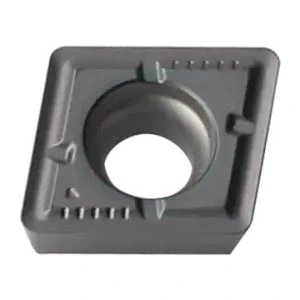

G Carbide Insert

Diameter Range: 4.2mm – 15.2mm (0.165” – 0.598”)
• Thickness Range: 2mm – 6mm (0.079” – 0.236”)
• Material: Carbide

Features and benefits

• Compatible with WDX drill systems
• Single insert design can be used in both the center and peripheral positions by changing the insert orientation
• Rhombic geometry provides cutting edge strength and clearance for drilling applications
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

7 available configurations

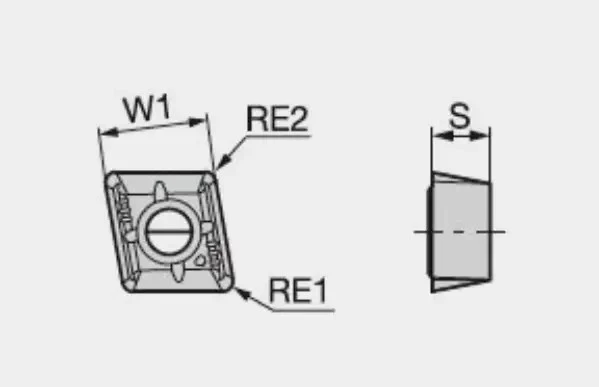

Edge Length (L) (mm) Thickness (s) (mm) Edge tip (r) (mm) U Drill Diameter (mm)
4.2 2 0.4 15
5 2.5 0.4 16-18
6 3 0.6 19-22
7.5 3.5 0.6 23-28
9.6 4 0.8 29-35
12.4 5 1.2 /
15.2 6 1.2 /
