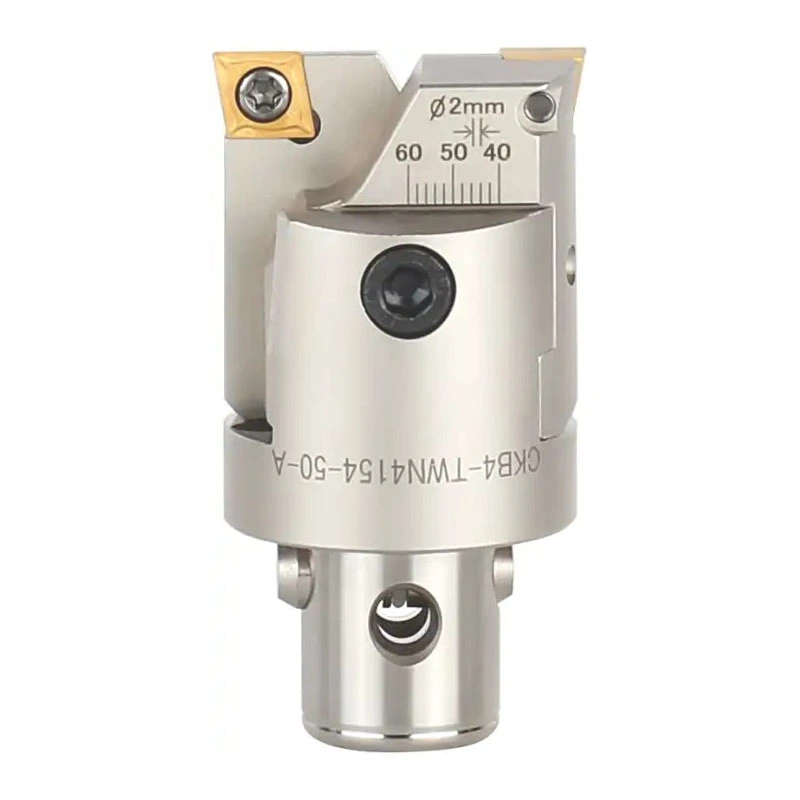

Heavy Cutting Rough Boring Head

Diameter Range: 25mm – 90mm (0.984” – 3.543”)
• Length Range: 38mm – 75mm (1.496” – 2.953”)
• Material: H13 Steel

Features and benefits

• Heavy-duty construction for high metal removal applications
• Rigid cartridge clamping improves positioning accuracy and stability

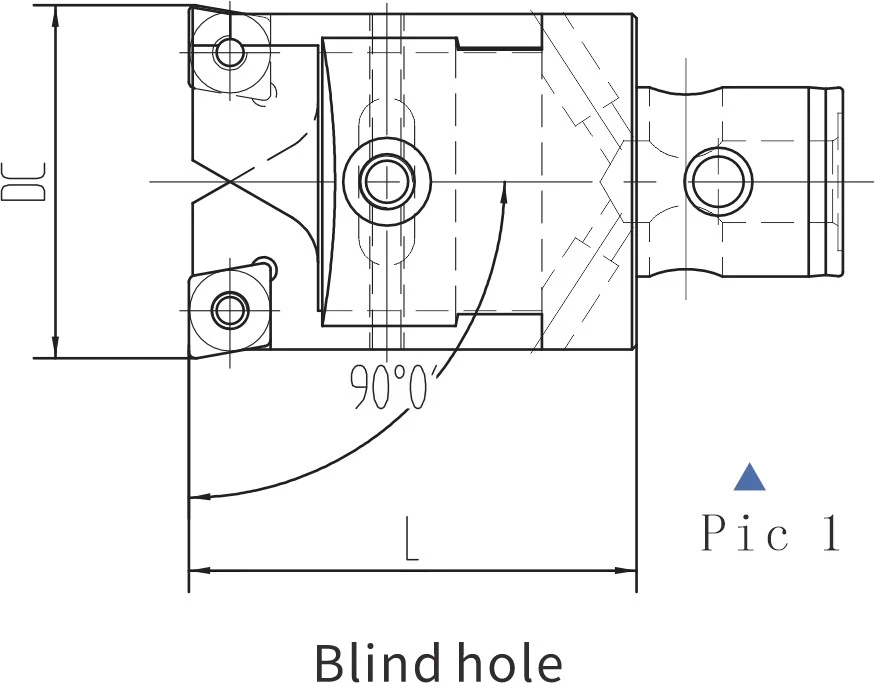

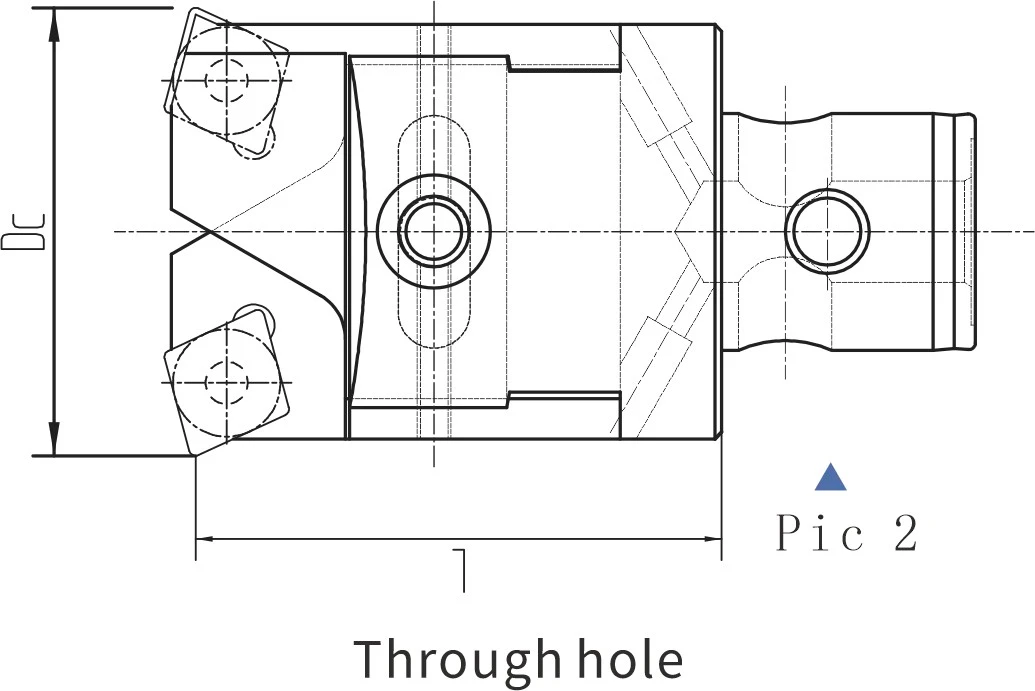

• Supports 90° blind-hole boring and 75° through-hole boring
• Designed for heavy cutting loads with reduced vibration
• See page 97 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

10 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Length (mm)	Insert	Insert Screw	Insert Wrench	Cutter Block Screw	Slide Trimmer Screw	Mass (kg)	Cutter Block Wrench	Slide Trimmer Wrench
25-33	24	38	CC..0602..	M2.5×6	T8	M5-0.8×18	M3×6	0.14	L1.5	L4
32-42	31	45	CC..09T3..	M4×10	T15	M6-1.0×20	M3×8	0.23	L1.5	L5
41-54	39	52	CC..09T3..	M4×10	T15	M8-1.25×25	M3×10	0.43	L1.5	L6
53-72	49	66	CC..1204..	M5×12	T20	M10-1.5×35	M4×12	0.82	L2	L8
68-90	63	75	CC..1204..	M5×12	T20	M10-1.5×35	M4×16	1.75	L2	L8
25-33	24	35	CC..0602..	M2.5×6	T8	M5-0.8×18	M3×6	0.14	L1.5	L4
32-42	31	41	CC..09T3..	M4×10	T15	M6-1.0×20	M3×8	0.23	L1.5	L5
41-54	39	48	CC..09T3..	M4×10	T15	M8-1.25×25	M3×10	0.43	L1.5	L6
53-72	49	61	CC..1204..	M5×12	T20	M10-1.5×35	M4×12	0.82	L2	L8
68-90	63	70	CC..1204..	M5×12	T20	M10-1.5×35	M4×16	1.75	L2	L8
