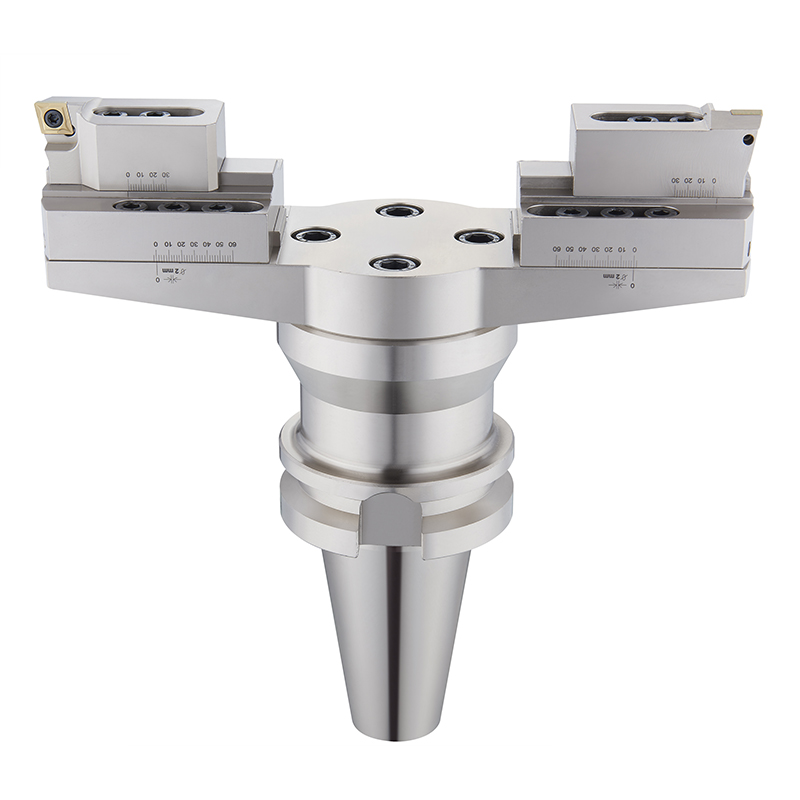

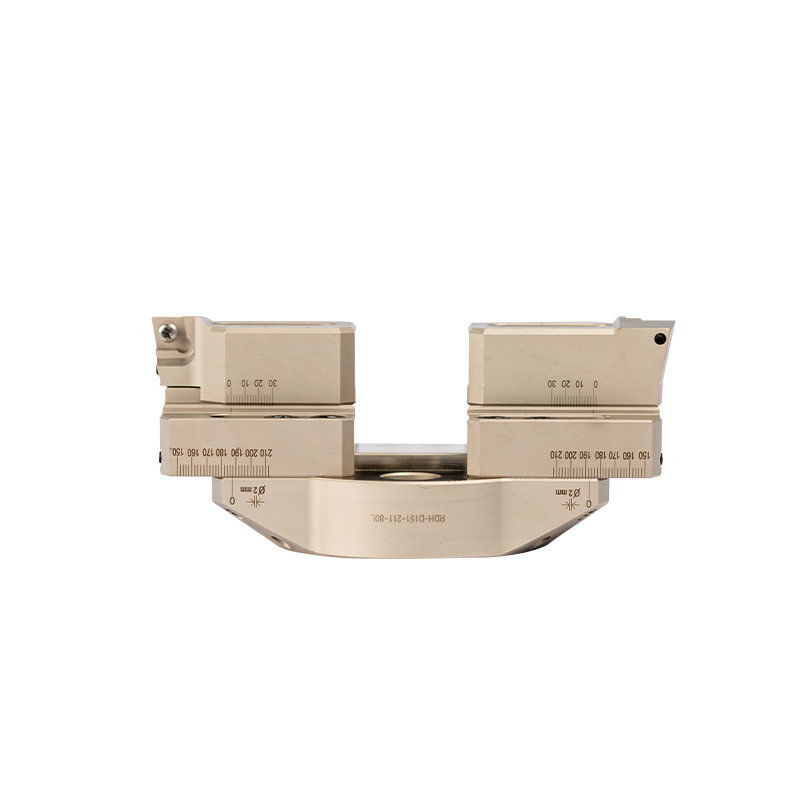

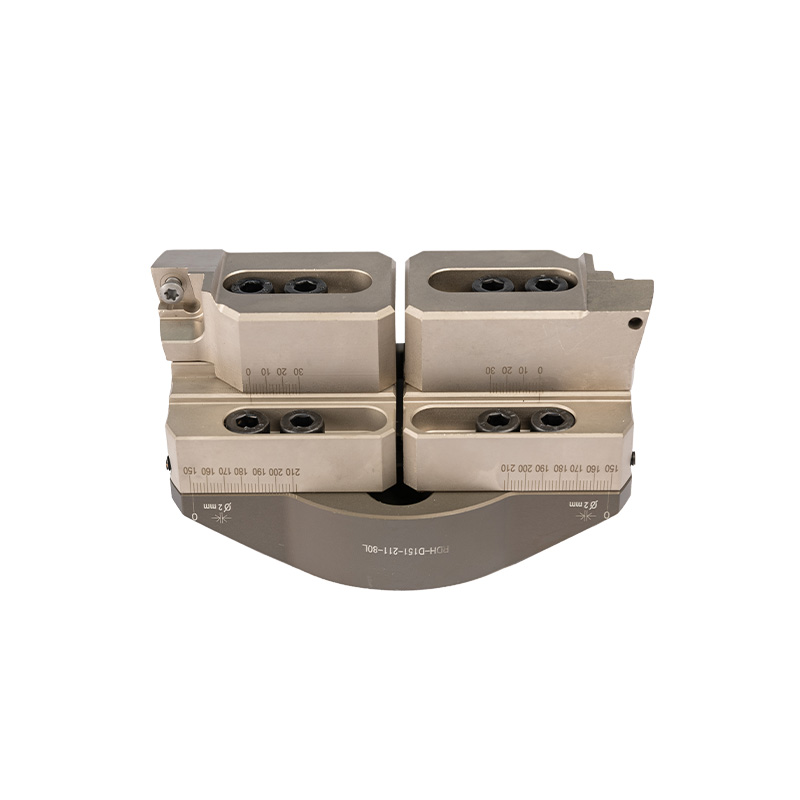

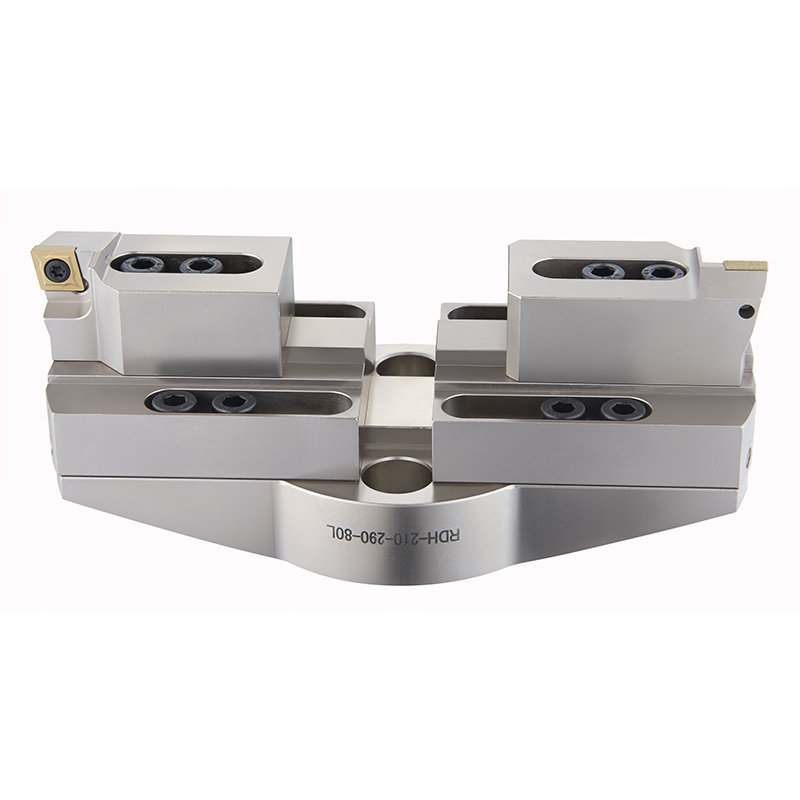

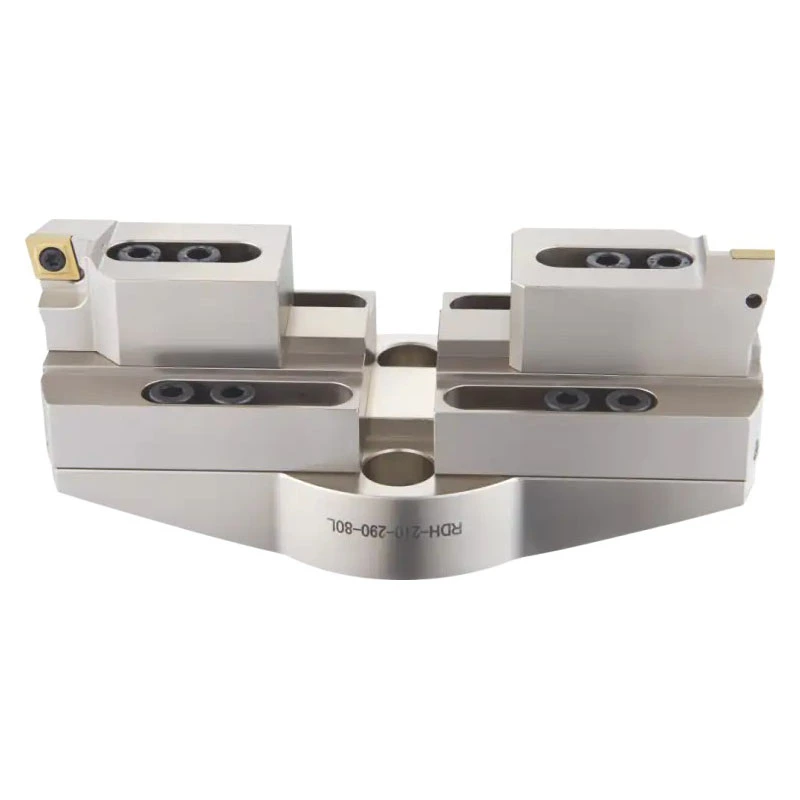

Large Diameter Rough Boring Head
Diameter Range: 151mm – 750mm (5.945” – 29.528”)
• Length Range: 80mm (3.15”)
• Material: H13 Steel
Features and benefits
• Applicable for steel and aluminum
• Designed for heavy-duty large diameter rough boring
• Suitable for interrupted cuts, uneven surfaces, cross bores, edge starts, welded seams, and stacked plates
• See page 98 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

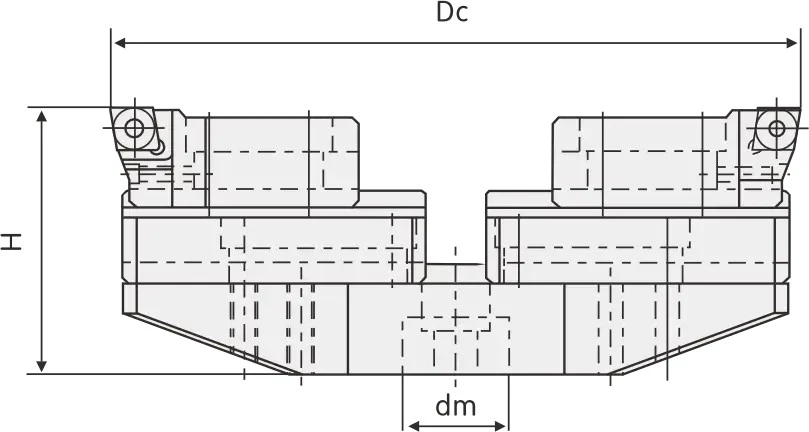

Dimensions & Technical Specifications
7 available configurations
| Cutting Diameter (mm) | Holding Diameter (mm) | Length (mm) | Insert | Insert Screw | Insert Wrench | Cutter Block Screw | Slide Trimmer Screw | Mass (kg) | Holding Screw | Slide Side Screw |
|---|---|---|---|---|---|---|---|---|---|---|
| 151-211 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 4.95 | M6*20 | M6*20 |
| 210-290 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 5.85 | M6*25 | M6*25 |
| 290-370 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 6.81 | M6*25 | M6*25 |
| 370-450 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 7.8 | M6*25 | M6*25 |
| 450-550 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 8.75 | M6*25 | M6*25 |
| 550-650 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 9.85 | M6*25 | M6*25 |
| 650-750 | 32 | 80 | CC..1204.. | M5*13 | T20 | M8*25 | M8*26 | 10.85 | M6*25 | M6*25 |
