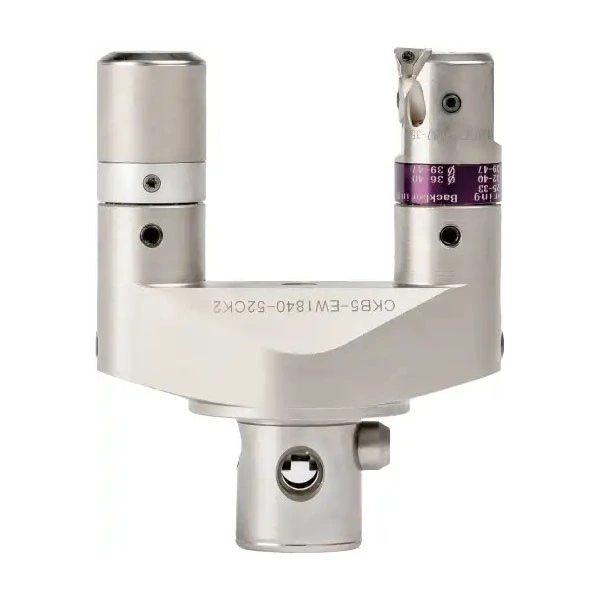

Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head
  • Pin Turning Finishing Head Pin Turning Finishing Head

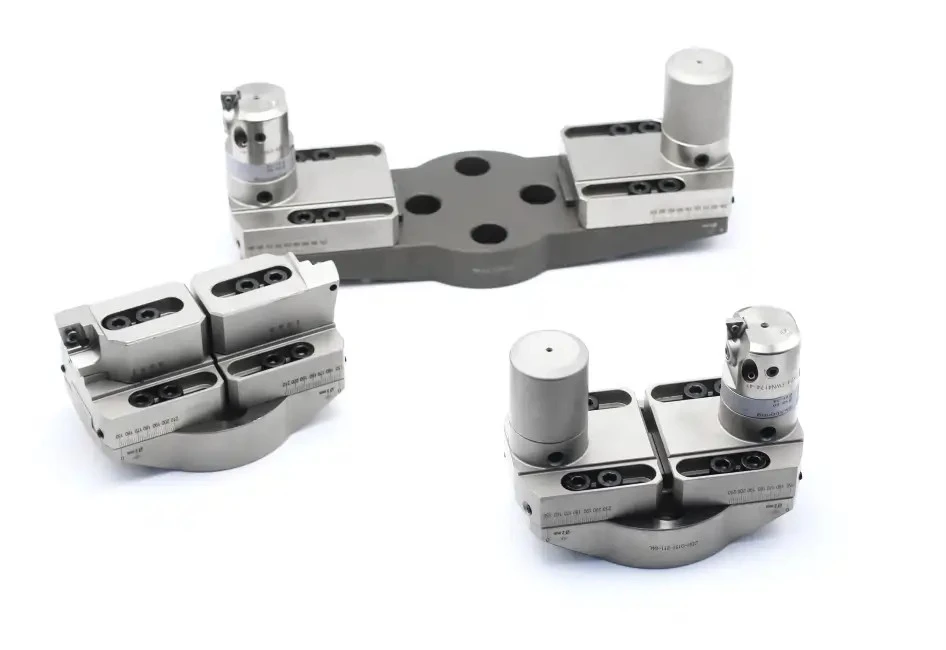

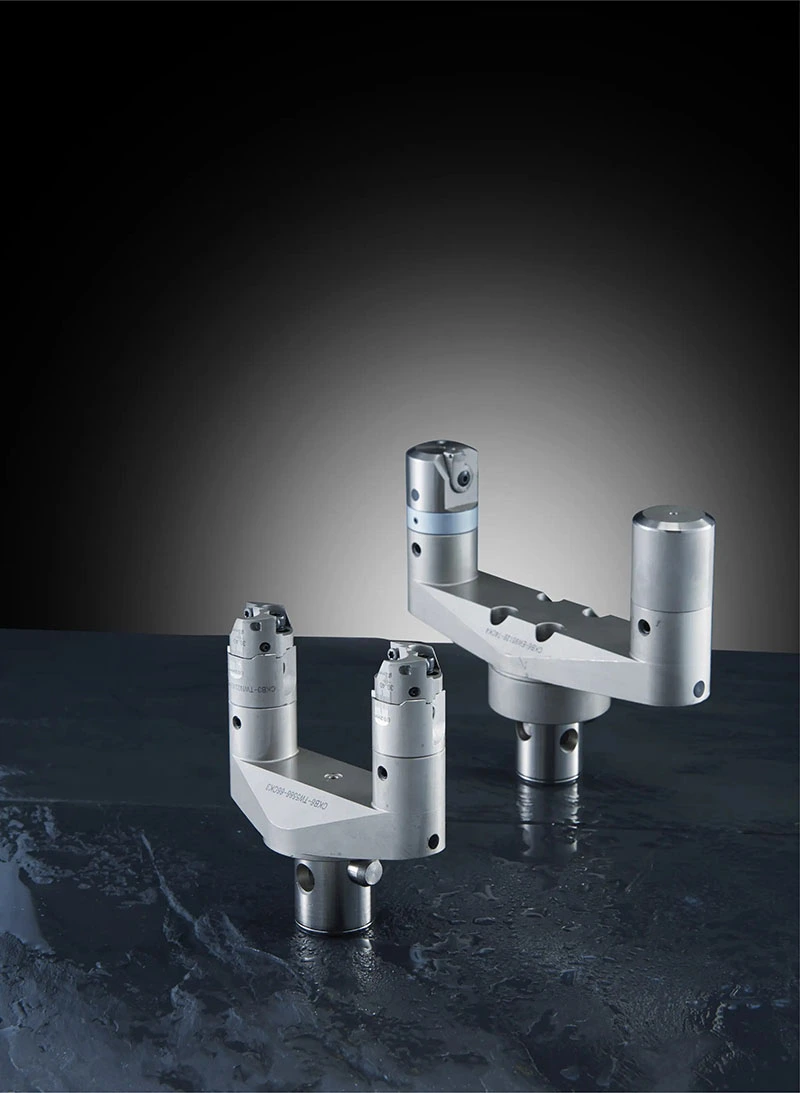

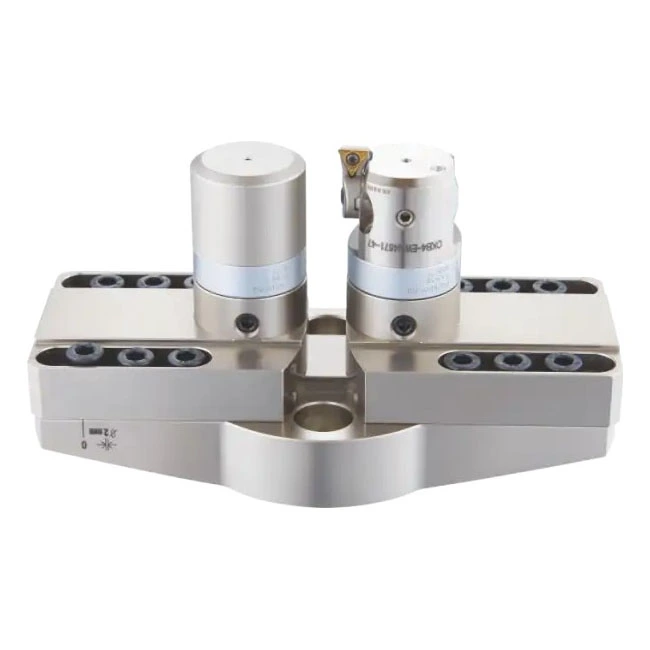

Pin Turning Finishing Head

Diameter Range: 8mm – 120mm (0.315” – 4.724”)
• Length Range: 78mm (3.071”)
• Material: H13 Steel

Features and benefits

• External Boring Range: 8mm – 127mm
• Internal Boring Range: 80mm – 242mm
• Reversible carbide insert holder for internal and external boring
• Counterweighted dual-arm design reduces vibration and deflection
• See page 106 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

7 available configurations

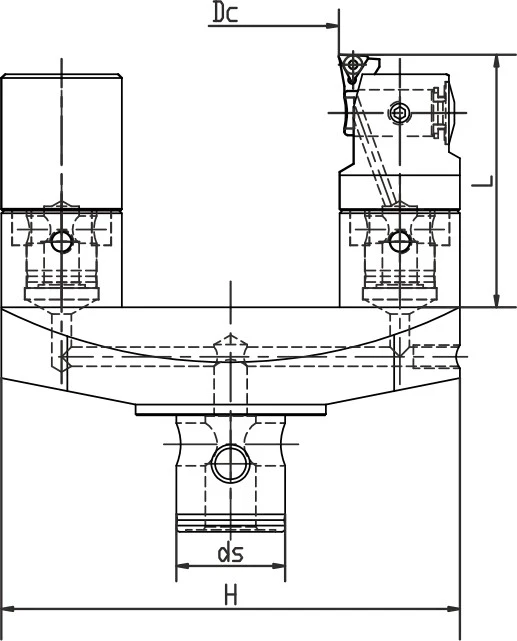

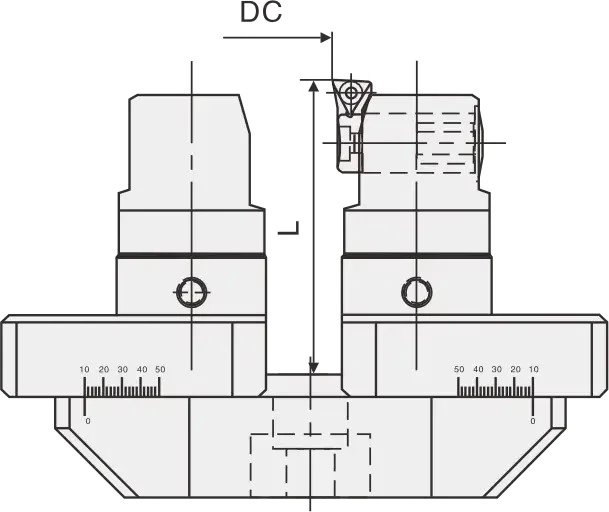

Cutting Diameter (mm) Holding Diameter (mm) Length (mm) Cutter Block Outer Cutting Range (mm) Width (H) (mm)
80–88 28 52 CKB2-EWN2547-35.5 22–30 79
90–98 28 52 CKB2-EWN2547-35.5 32–40 89
119–129 28 63 CKB3-EWN3260-40 46–55 118
129–139 36 63 CKB3-EWN3260-40 56–65 128
139–149 36 63 CKB3-EWN3260-40 65–75 138
182–195 36 74 CKB4-EWN4174-47 87–100 179
209–222 36 74 CKB4-EWN4174-47 114–127 206
