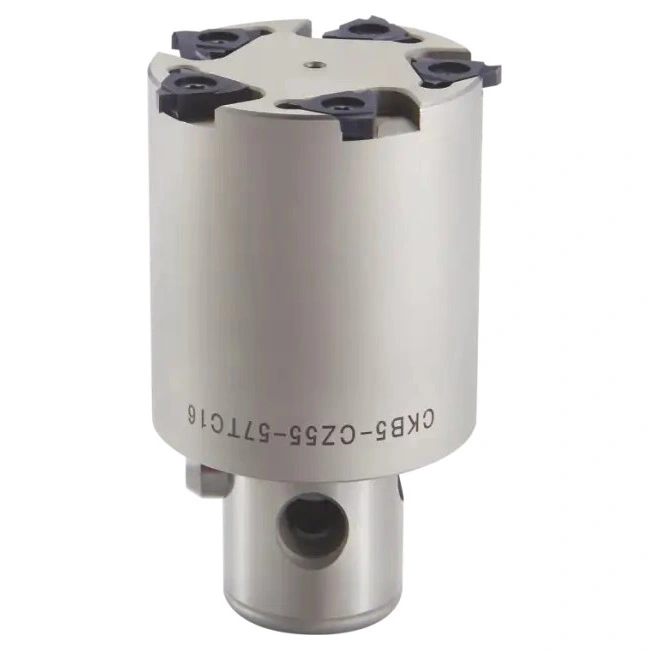

Slot Milling Cutter
Diameter Range: 28mm – 70mm (1.102” – 2.756”)
• Length Range: 35mm – 70mm (1.378” – 2.756”)
• Material: H13 Steel
Features and benefits
• Available with 3 or 5 TGF type indexable carbide inserts
• Suitable for slotting, shoulder milling, and general milling operations

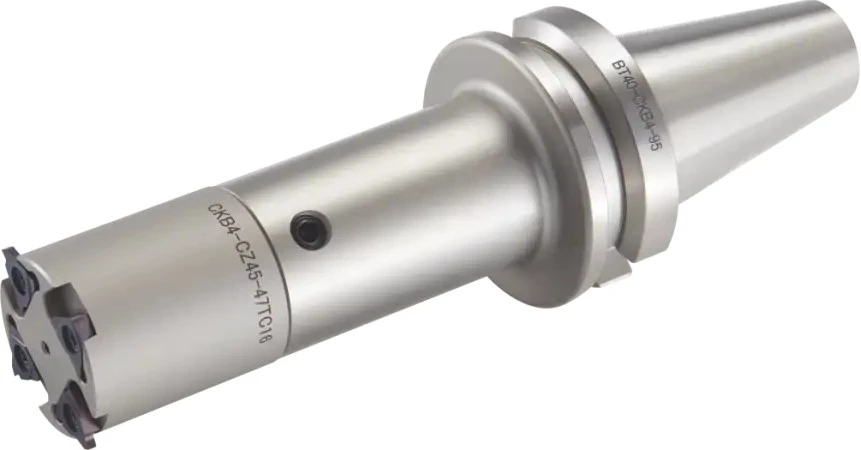

• Mounts directly to the CKB Holder
• See page 115 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

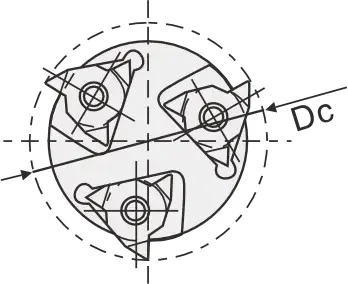

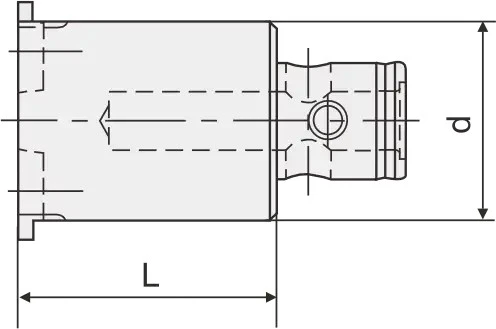

Dimensions & Technical Specifications
5 available configurations
| Cutting Diameter (mm) | Piece Diameter (mm) | Length (mm) | Insert | Teeth | Wrench | Screw | Mass (kg) | Insert Screw |
|---|---|---|---|---|---|---|---|---|
| 28 | 24 | 35 | TGF32L3050-TGF32L3280 | 2 | T15 | M4*10 | 0.14 | TW40TS |
| 37 | 31 | 40 | TGF32L3050-TGF32L3280 | 3 | T15 | M4*10 | 0.23 | TW40TS |
| 45 | 39 | 47 | TGF32L3050-TGF32L3280 | 4 | T15 | M4*10 | 0.43 | TW40TS |
| 55 | 50 | 57 | TGF32L3050-TGF32L3280 | 5 | T15 | M4*10 | 0.82 | TW40TS |
| 70 | 63 | 70 | TGF32L3050-TGF32L3280 | 6 | T15 | M4*10 | 1.75 | TW40TS |
