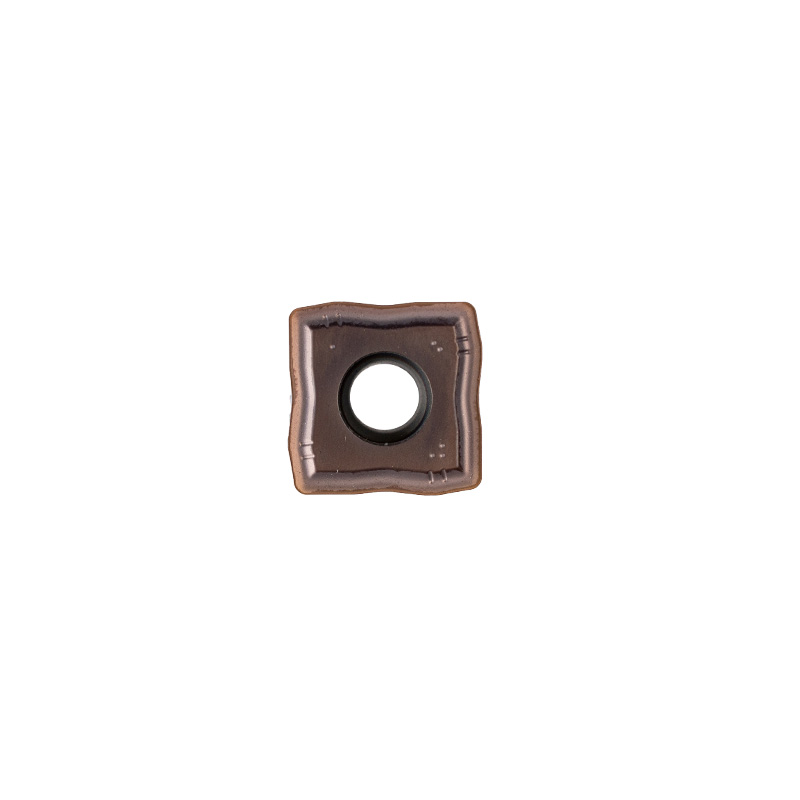

SOMT Carbide Inserts

Diameter Range: 4.9mm – 15mm (0.193” – 0.591”)
• Thickness Range: 2.38mm – 4.8mm (0.094” – 0.189”)
• Material: Carbide

Features and benefits

• Compatible with SOMT drill systems, as a peripheral and center insert
• Concave-sided square geometry with four cutting edges
• Promotes smooth chip flow while maintaining high edge strength
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

8 available configurations

Edge Length (L) (mm)	Thickness (s) (mm)	Hole Dia. (d) (mm)	Edge tip (r) (mm)	U Drill Diameter (mm)
4.9	2.38	2.25	0.4	13-16
5.7	2.38	2.6	0.4	16.5-19
6.8	2.8	2.6	0.6	19.5-22
7.9	3.97	2.85	0.6	22.5-26
9.2	3.97	3.8	0.8	26.5-31.5
11	3.97	3.8	0.8	32-36.5
12.8	4.4	4.4	0.8	37-43
15	4.8	5.4	1	44-50
