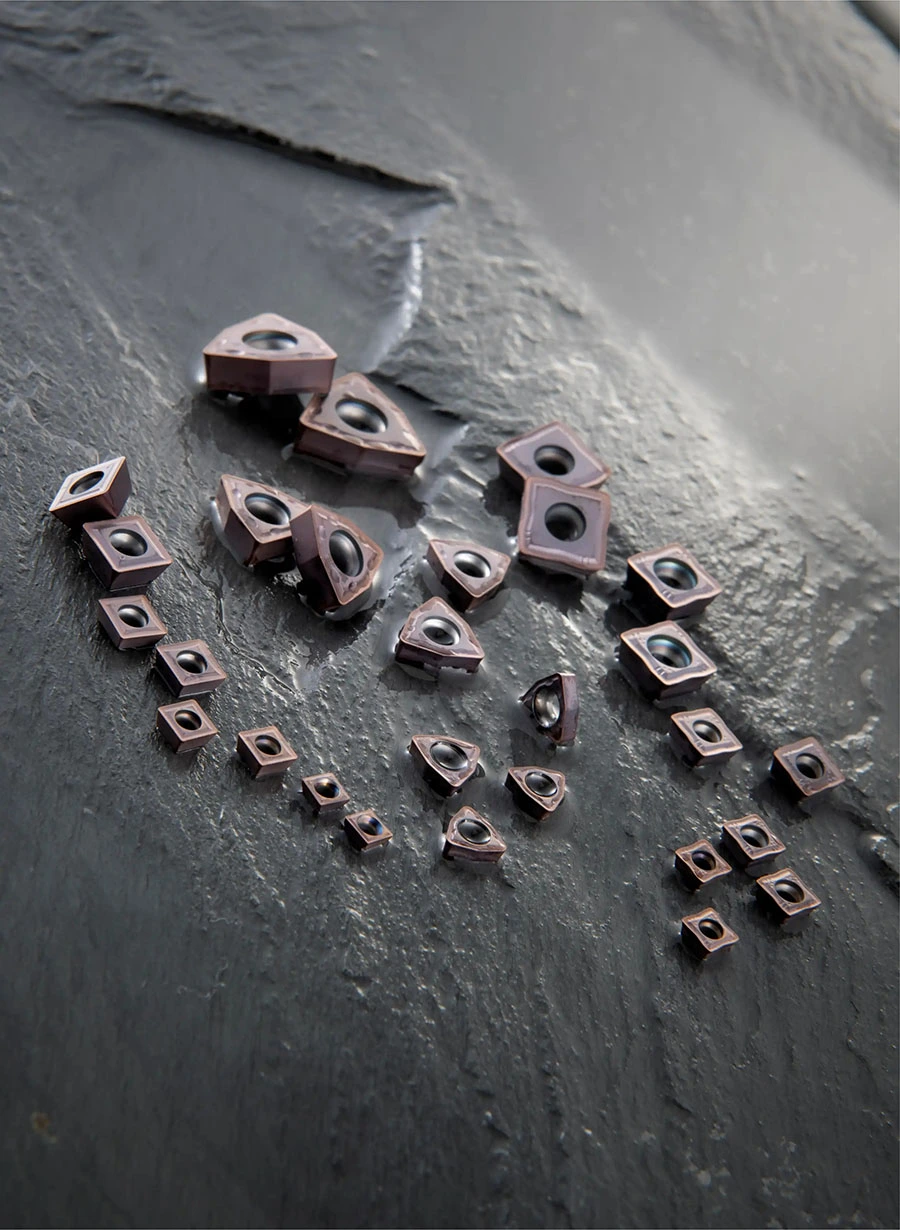

WCMT Type DS Carbide Inserts

Diameter Range: 5.56mm – 12.7mm (0.219” – 0.5”)
• Length Range: 2.38mm – 4.76mm (0.093” – 0.187”)
• Material: Carbide

Features and benefits

• Compatible with WCMT drill systems.
• Trigon geometry with three cutting edges
• Dimpled rake-face design improves chip control and cutting stability
• Optimized for improved chip control and stable drilling performance.
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

5 available configurations

Edge Length (L) (mm) Insert Dia. (IC) (mm) Thickness (s) (mm) Hole Dia. (d) (mm) Edge tip (r) (mm) U Drill Diameter (mm)
3.8 5.56 2.38 2.8 0.8 15-20.5
4.3 6.35 2.38 3.1 0.8 21-24.5
5.4 7.94 3.18 3.5 0.8 25-30.5
6.5 9.525 3.97 3.7 0.8 31-41/63-80
8.7 12.7 4.76 4.3 1.2 42-62
