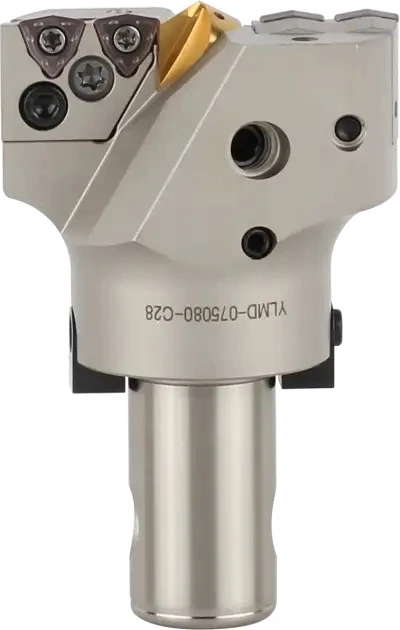

YLMD Max Drill

Diameter Range: 45mm – 180mm (1.772” – 7.087”)
• Length Range: 55mm – 98mm (2.165” – 3.858”)
• Solely available in H13 steel for high precision machining

Features and benefits

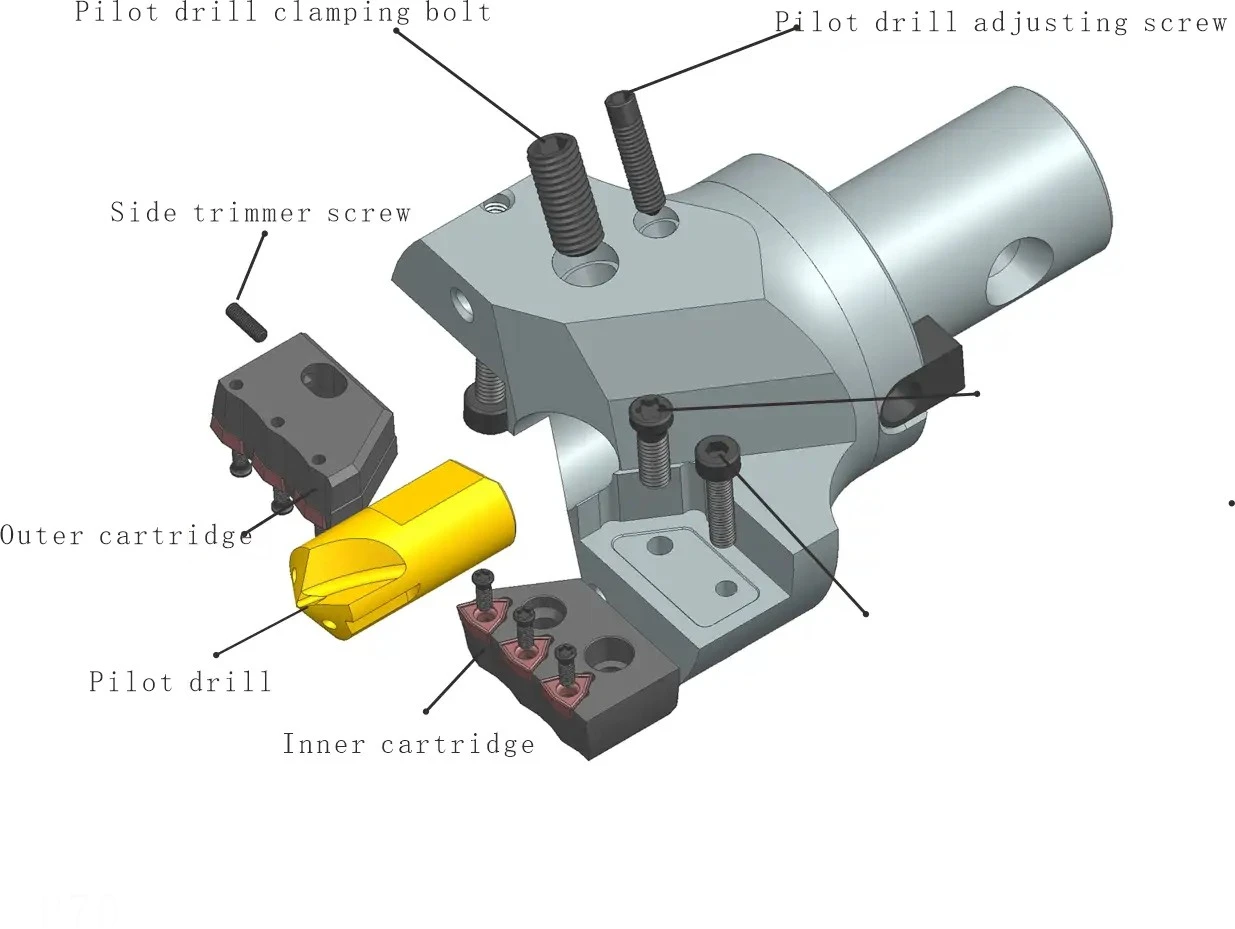

• Modular cutter holders accommodate two or three carbide inserts, increasing material removal rates while maintaining excellent cutting stability

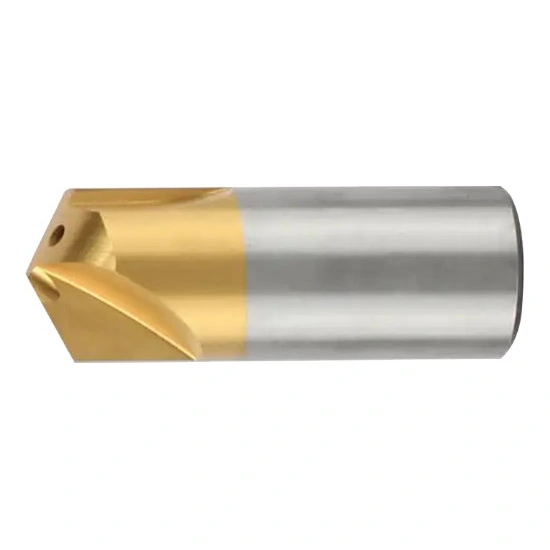

• TiN-coated pilot drill provides accurate centering, improved wear resistance, and extended tool life
• Internal coolant channels deliver coolant directly to the cutting zone for enhanced cooling, efficient chip evacuation, and longer insert life
• Indexable inserts with DS geometry of WCMT allow for versatility in workpiece material up to P grade steel
• See page 82 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Rating: 5.0

(Rating Count: 2)

Product Description

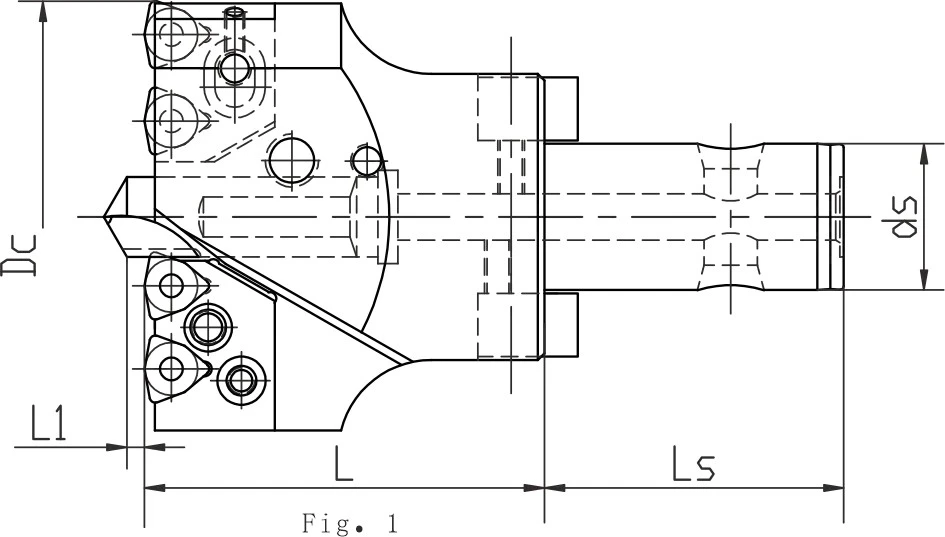

Dimensions & Technical Specifications

23 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Total Length (mm)	Cutting Length (mm)	Holding Length (mm)
45-50	16	95	40	55
50-55	16	95	40	55
55-60	22	105	45	60
60-65	22	105	45	60
65-70	22	105	45	60
70-75	22	105	45	60
75-80	28	115	50	65
80-85	28	115	50	65
85-90	28	115	50	65
90-95	28	115	50	65
95-100	28	115	50	65
100-105	36	125	55	70
105-110	36	125	55	70
110-115	36	125	55	70
115-120	40	136	60	76
120-125	40	136	60	76
125-130	40	136	60	76
130-135	40	136	60	76
135-140	40	136	60	76
140-150	50	158	60	98
150-160	50	158	60	98
160-170	50	158	60	98
170-180	50	158	60	98
