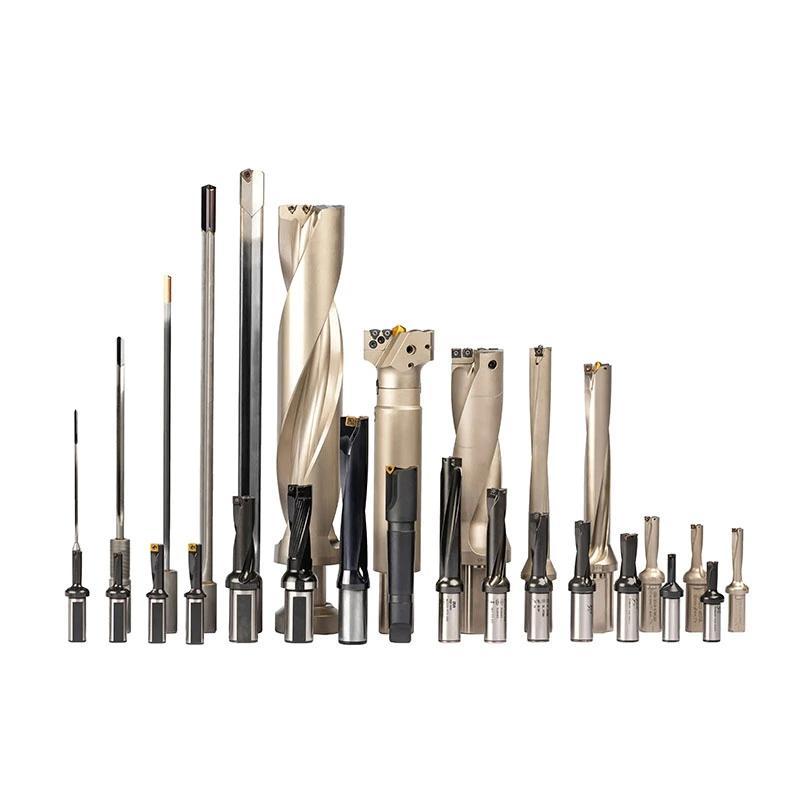

Brazed Gun Drill
Diameter Range: 3mm – 32mm (0.119” – 0.473”)
• Length Range: 235mm – 1800mm (9.252” – 70.866”)
• Material: Carbide
Features and benefits
• Carbide drill tip permanently brazed to a heat-treated drill tube and precision-ground steel shank
• One-piece brazed construction provides a rigid drilling assembly
• Available with different carbide grades and wear-resistant coatings
• Suitable for deep-hole drilling in steel, stainless steel, cast iron, aluminum, and other engineering materials
• Precision-ground guide pads improve hole guidance
• See page 117 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry

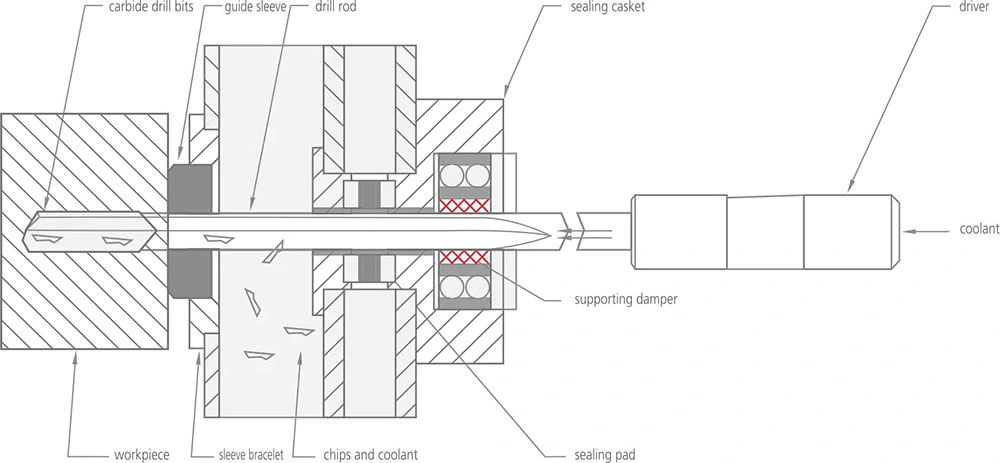

Product Description

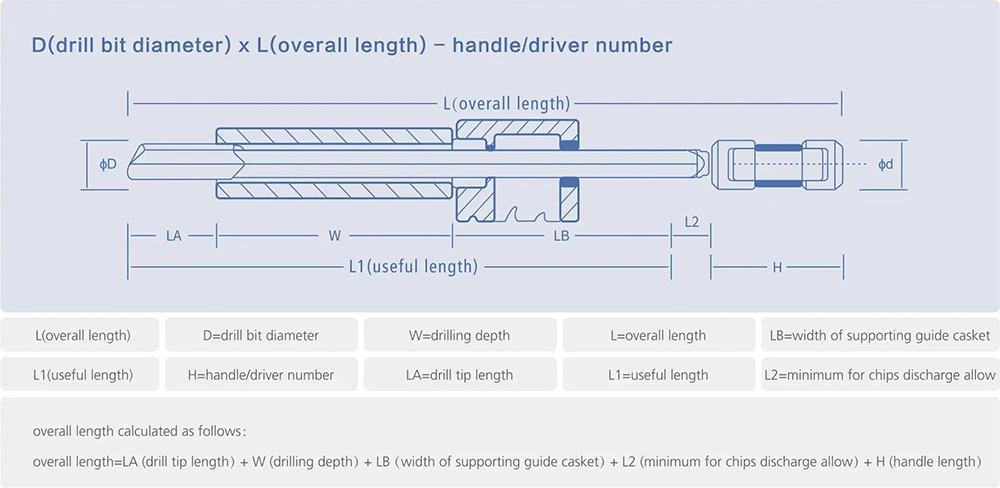

Dimensions & Technical Specifications
87 available configurations
| Diameter (mm) | Clamping Part Length (mm) | Transitional Part Length (mm) | Fix Position X (mm) | Screw Spec M |
|---|---|---|---|---|
| 10 | 40 | — | 24 | — |
| 16 | 45 | 53 | 31 | — |
| 25 | 70 | 78 | 34 | — |
| 10 | 40 | 57 | 24 | — |
| 16 | 45 | 72 | 31 | — |
| 25 | 70 | 105 | 34 | — |
| 16 | 50 | 58 | 47.5 | — |
| 16 | 50 | 77 | 47.5 | — |
| 10 | — | 60 | — | M6x0.5 |
| 16 | — | 80 | — | M10x1 |
| 25 | — | 100 | — | M16x1.5 |
| 10 | 60 | 77 | — | M6x0.5 |
| 16 | 60 | 105 | — | M10x1 |
| 25 | 100 | 140 | — | M16x1.5 |
| 12.7 | — | 38.1 | 25.3 | — |
| 19.05 | — | 70 | 45 | — |
| 25.4 | — | 70 | 57.5 | — |
| 31.7 | — | 70 | 57.5 | — |
| 38.1 | — | 70 | 57.5 | — |
| 19.05 | 70 | 97 | 45 | — |
| 25.4 | 70 | 100 | 57.5 | — |
| 31.7 | 70 | 111 | 57.5 | — |
| 10 | 60 | 68 | 35 | M6x0.5 |
| 16 | 80 | 90 | 37 | M10x1 |
| 25 | 100 | 100 | 45 | M16x1.5 |
| 16 | 80 | 80 | 37 | M10x1 |
| 25 | 100 | 100 | 45 | M16x1.5 |
| 10 | 40 | 40 | 28 | — |
| 12 | 45 | 45 | 33 | — |
| 16 | 48 | 48 | 36 | — |
| 20 | 50 | 50 | 38 | — |
| 16 | — | 112 | 73 | TR16x1.5 |
| 20 | — | 126 | 82 | TR 20x2 |
| 28 | — | 126 | 82 | TR 28x2 |
| 36 | — | 162 | 109 | TR 36x2 |
| 16 | — | 40 | 28 | — |
| 25 | — | 50 | 35 | — |
| 35 | — | 60 | 40 | — |
| 16 | 40 | 67 | 28 | — |
| 25 | 50 | 77 | 35 | — |
| 35 | 60 | 100 | 40 | — |
| 10 | 40 | — | — | — |
| 12 | 45 | — | — | — |
| 16 | 48 | — | — | — |
| 20 | 50 | — | — | — |
| 25 | 56 | — | — | — |
| 32 | 60 | — | — | — |
| 40 | 70 | — | — | — |
| 10 | 40 | 57 | — | — |
| 12 | 45 | 62 | — | — |
| 16 | 48 | 75 | — | — |
| 20 | 50 | 77 | — | — |
| 25 | 56 | 86 | — | — |
| 32 | 60 | 100 | — | — |
| 40 | 70 | 110 | — | — |
| 10 | — | 40 | 23.5 | — |
| 12 | — | 45 | 26.5 | — |
| 16 | — | 48 | 29 | — |
| 20 | — | 50 | 30.5 | — |
| 25 | — | 56 | 38 | — |
| 32 | — | 60 | 43 | — |
| 40 | — | 70 | 47 | — |
| 10 | 40 | 57 | 23.5 | — |
| 12 | 45 | 62 | 26.5 | — |
| 16 | 48 | 75 | 29 | — |
| 20 | 50 | 77 | 30.5 | — |
| 25 | 56 | 86 | 38 | — |
| 32 | 60 | 100 | 43 | — |
| 40 | 70 | 110 | 47 | — |
| 10 | — | 40 | 28 | — |
| 12 | — | 45 | 33 | — |
| 16 | — | 48 | 36 | — |
| 20 | — | 50 | 38 | — |
| 25 | — | 56 | 44 | — |
| 32 | — | 60 | 48 | — |
| 40 | — | 70 | 66 | — |
| 10 | 40 | 57 | 28 | — |
| 12 | 45 | 62 | 33 | — |
| 16 | 48 | 75 | 36 | — |
| 20 | 50 | 77 | 38 | — |
| 25 | 56 | 86 | 44 | — |
| 32 | 60 | 100 | 48 | — |
| 40 | 70 | 110 | 66 | — |
| 10 | — | 40 | 28 | — |
| 12 | — | 45 | 33 | — |
| 16 | — | 48 | 36 | — |
| 20 | — | 50 | 38 | — |
Send Inquiry
Please feel free to fill your inquiry in the form below. We will reply you in 24 hours.
