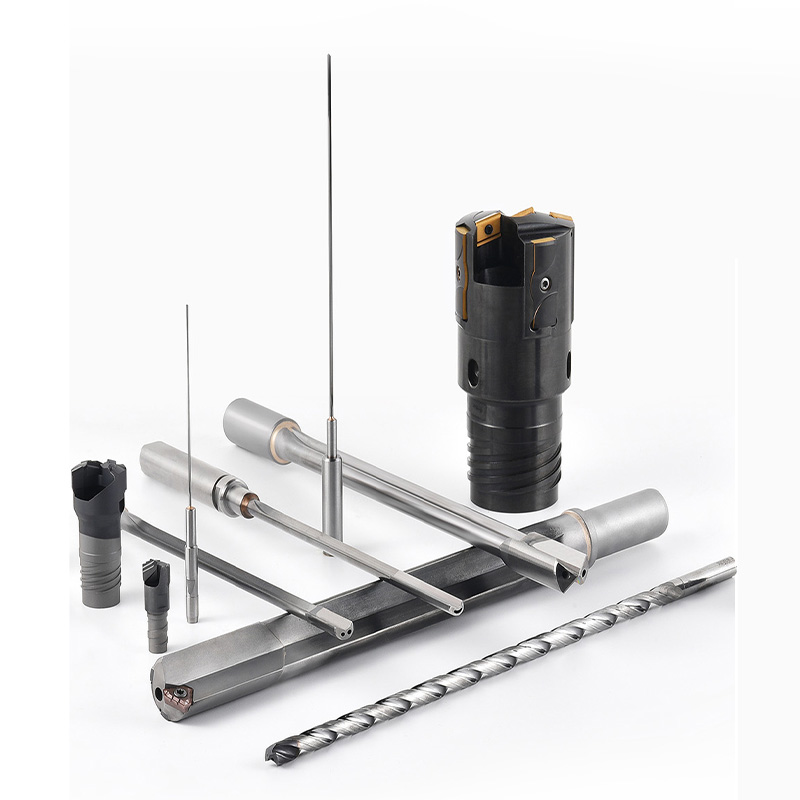

Deep Hole Drill
Diameter Range: 1.52mm – 10mm (0.06” – 0.394”)
• Length Range: 160mm – 295mm (6.299” – 11.614”)
• Material: Carbide
Features and benefits
• Solid carbide construction integrates the drill tip, body, and shank into a single piece
• One-piece design eliminates welded joints
• Internal coolant channels deliver coolant directly to the cutting edge
• Designed for deep-hole drilling in steel, stainless steel, cast iron, and aluminum
• See page 122 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description
Dimensions & Technical Specifications
20 available configurations
| Diameter (mm) | Clamping Part Length (mm) | Transitional Part Length (mm) | Fix Position X (mm) | Screw Spec M |
|---|---|---|---|---|
| 6 | 30 | 45 | 17 | — |
| 10 | 55 | 70 | — | M6*0.5 |
| 10 | 40 | 55 | 32.7 | M6*0.5 |
| 10 | 40 | 55 | 24 | — |
| 12.7 | 38 | 48 | 25.4 | — |
| 12.7 | 51 | 65 | — | M6*0.5 |
| 16 | 80 | 105 | 37 | M10*1 |
| 4 | 34 | 46 | — | — |
| 6 | 36 | 50 | — | — |
| 10 | 40 | 55 | — | — |
| 12 | 45 | 60 | — | — |
| 16 | 48 | 63 | — | — |
| 6 | 36 | 50 | 20 | — |
| 10 | 40 | 55 | 23.5 | — |
| 12 | 45 | 60 | 26.5 | — |
| 16 | 48 | 63 | 29 | — |
| 6 | 36 | 50 | 25 | — |
| 10 | 40 | 55 | 28 | — |
| 12 | 45 | 60 | 33 | — |
| 16 | 48 | 63 | 36 | — |
