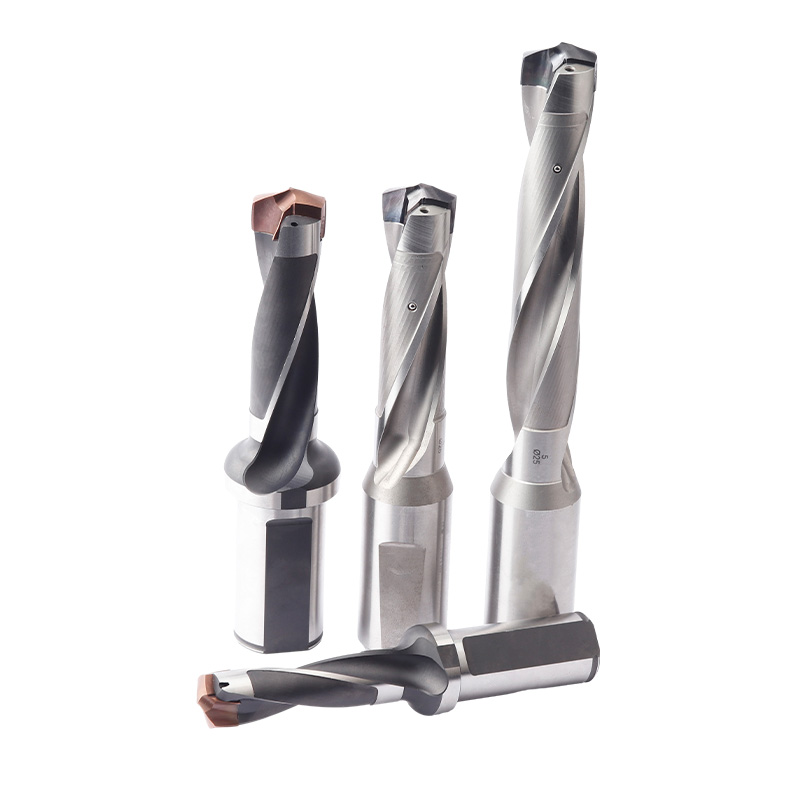

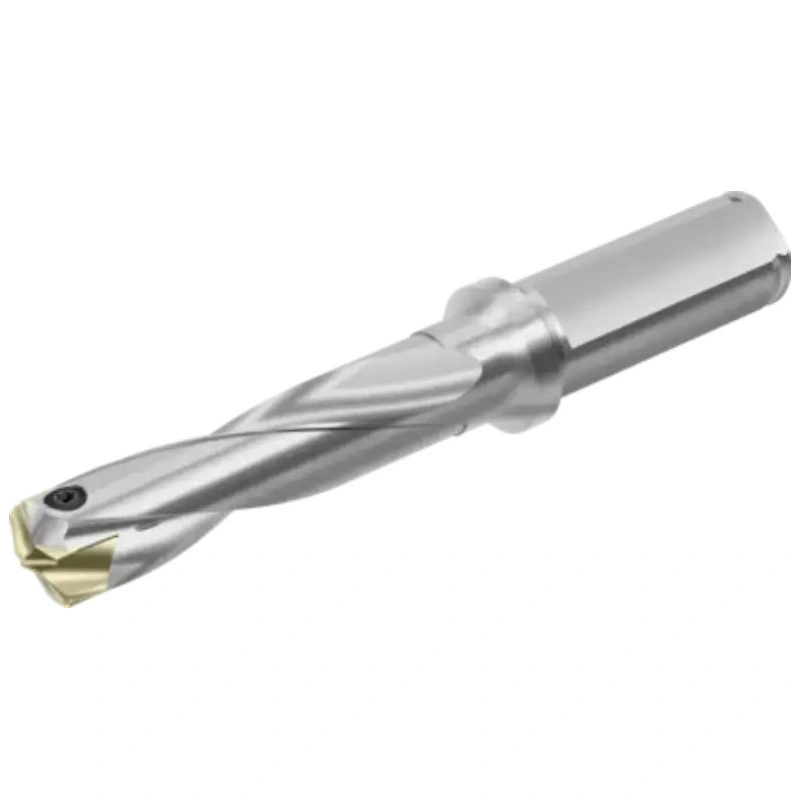

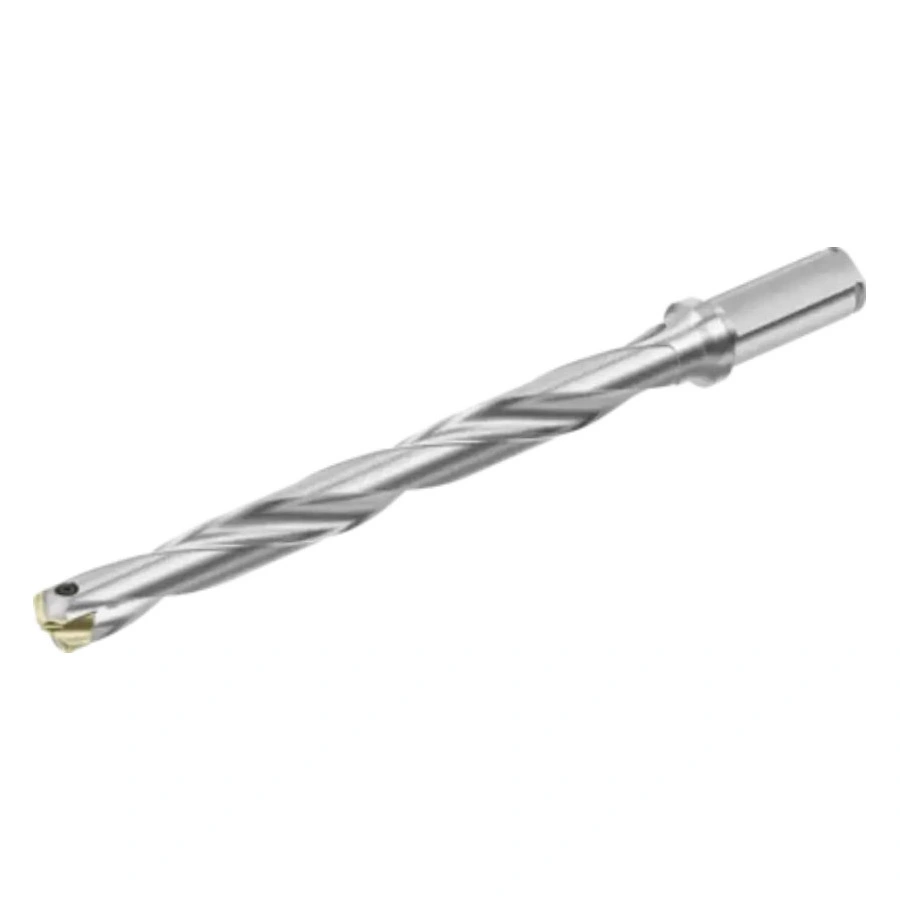

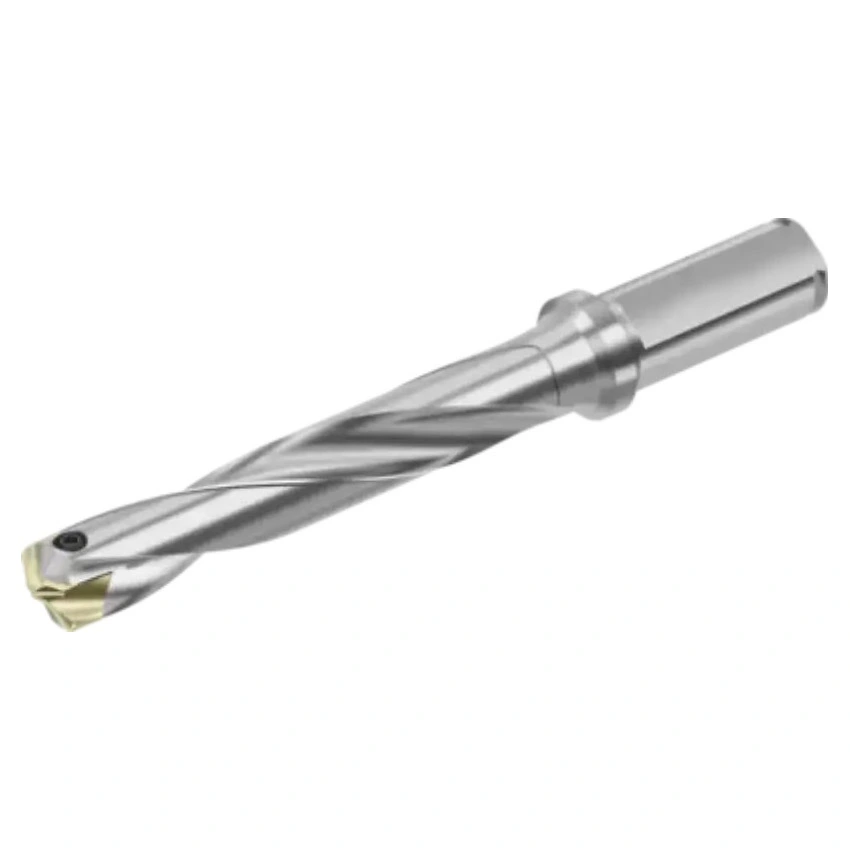

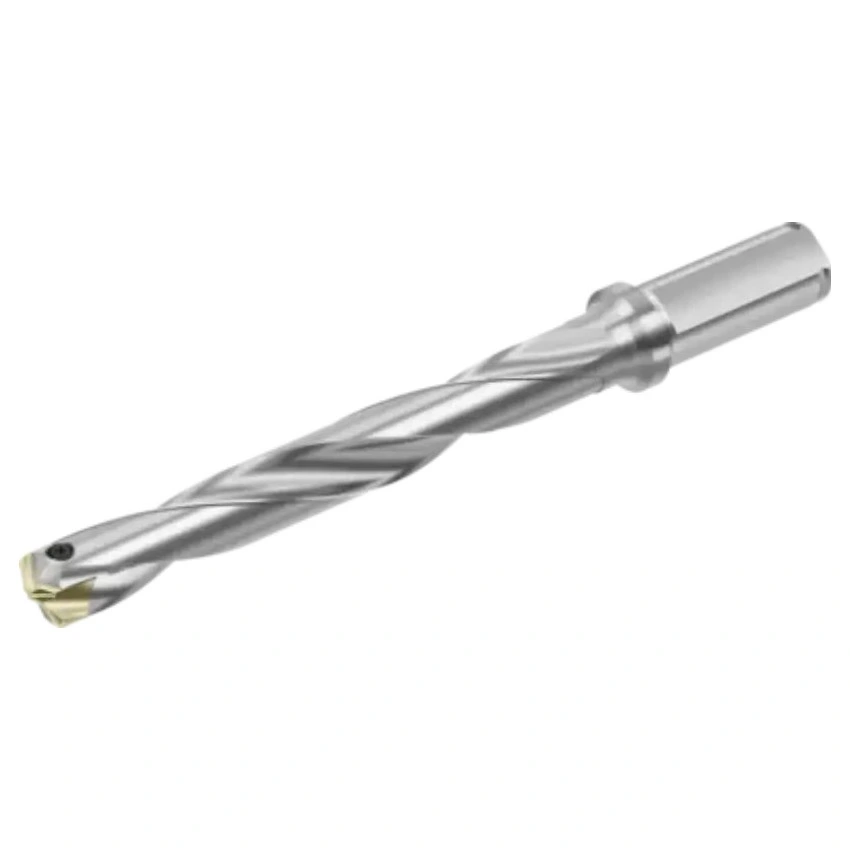

Crownioc Drill

Diameter Range: 12mm – 37mm (0.472” – 1.457”)
• Length Range: 3XD, 5XD, 7XD, 10XD
• Solely available in 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Features and benefits

• Features exchangeable carbide drill tips manufactured from WPP25 fine-grained carbide substrate with an AlTiN (Aluminum Titanium Nitride) coating applied using HiPIMS (High-Power Impulse Magnetron Sputtering) technology
• A gold-colored ZrN (Zirconium Nitride) top coating serves as a visual wear indicator, allowing operators to quickly identify insert wear and maximize tool utilization
• Designed primarily for drilling ISO P high-strength steels up to 43 HRC, with secondary applications in ISO K cast iron
• Optimal for through drilling, blind drilling, and stacked plate drilling
• The exchangeable drill tip design supports drilling depths of up to 10×D without pilot drilling
• See page 47 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

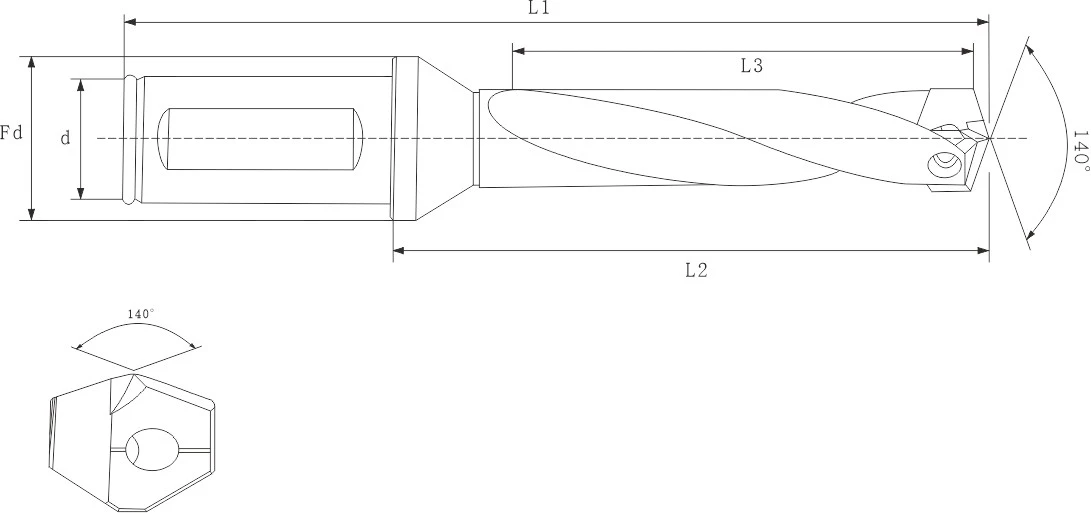

Dimensions & Technical Specifications

92 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Cutting Length (mm)	Holding Length (mm)	XD Length
12	16	36	48	3
13	16	41	48	3
14	16	45	48	3
15	16	48	48	3
16	20	51	50	3
17	20	54	50	3
18	20	57	50	3
19	20	61	50	3
20	20	64	50	3
21	20	67	50	3
22	25	70	56	3
23	25	73	56	3
24	25	76	56	3
25	25	80	56	3
26	25	83	56	3
27	25	86	56	3
28	32	89	60	3
29	32	92	60	3
30	32	95	60	3
31	32	99	60	3
32	40	102	70	3
33	40	105	70	3
34	40	108	70	3
35	40	111	70	3
36	40	115	70	3
37	40	118	70	3
12	16	62	48	5
13	16	67	48	5
14	16	73	48	5
15	16	78	48	5
16	20	83	50	5
17	20	88	50	5
18	20	93	50	5
19	20	98	50	5
20	20	104	50	5
21	20	109	50	5
22	25	114	56	5
23	25	119	56	5
24	25	124	56	5
25	25	130	56	5
26	25	135	56	5
27	25	140	56	5
28	32	145	60	5
29	32	150	60	5
30	32	155	60	5
31	32	161	60	5
32	40	166	70	5
33	40	171	70	5
34	40	176	70	5
35	40	181	70	5
36	40	187	70	5
37	40	192	70	5
12	16	86	48	7
13	16	93	48	7
14	16	101	48	7
15	16	108	48	7
16	20	115	50	7
17	20	122	50	7
18	20	133	50	7
19	20	136	50	7
20	20	144	50	7
21	20	151	50	7
22	25	158	56	7
23	25	165	56	7
24	25	172	56	7
25	25	180	56	7
26	25	187	56	7
27	25	194	56	7
28	32	201	60	7
29	32	208	60	7
30	32	215	60	7
31	32	223	60	7
32	40	230	70	7
33	40	237	70	7
34	40	244	70	7
35	40	251	70	7
36	40	259	70	7
37	40	266	70	7
12	16	120	48	10
13	16	130	48	10
14	16	140	48	10
15	16	150	48	10
16	20	160	50	10
17	20	170	50	10
18	20	180	50	10
19	20	190	50	10
20	20	200	50	10
21	20	210	50	10
22	25	220	56	10
23	25	230	56	10
24	25	240	56	10
25	25	250	56	10
