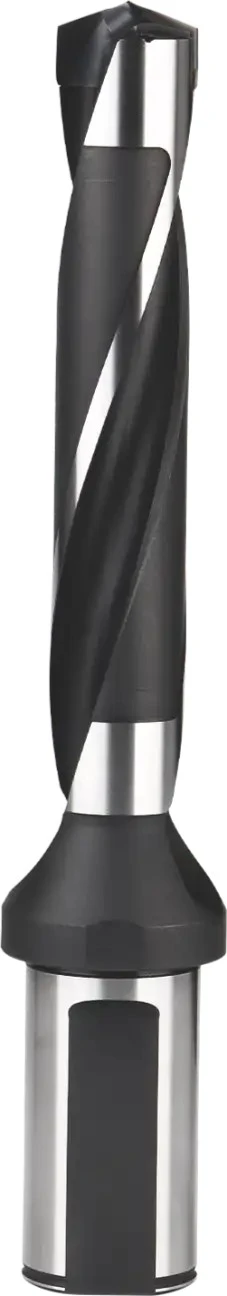

SEM Drill

• Diameter Range: 12.5mm – 32.1mm (0.492” – 1.264”)

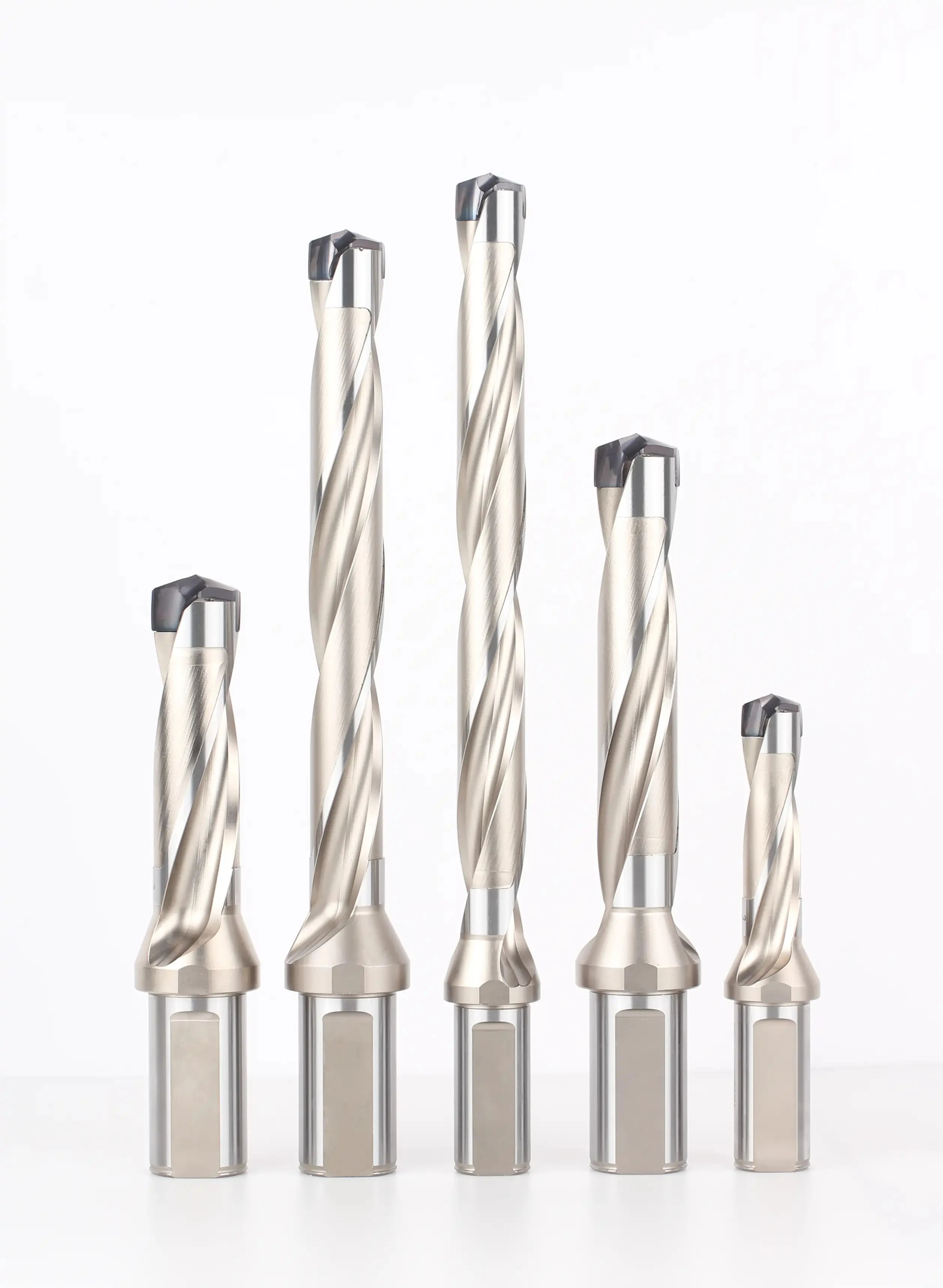

• Length Range: 1.5XD, 3XD, 5XD, 8XD, 10XD

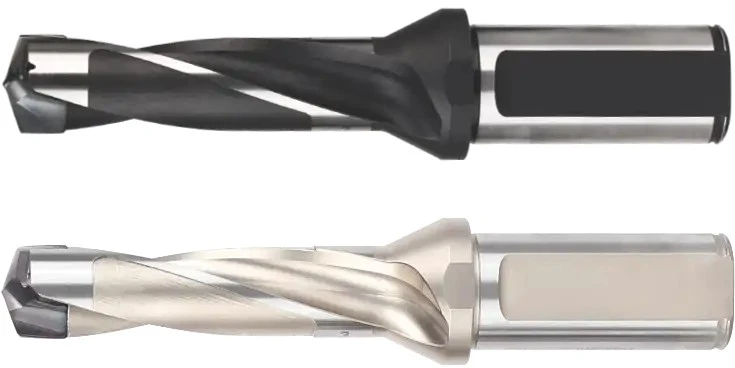

• Available in H13 steel for high precision machining and 42CrMo (Comparable to AISI 4140) for lathes and low precision machining

Send Inquiry

Product Description

• Features three different materials of exchangeable SEM drill heads: Ac7315 grade TiAIN with PVD multilayer coating, Ac7320 grade TiAIN with PVD coating, and ACPM45 grade with multilayer TiAIN coating.
• The four wall pocket design allows for increased insert and drill life, and simple wrench removal
• Exchangeable drill heads allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow directly to the cutting zone, improving metal removal rates, tool life, and overall productivity.

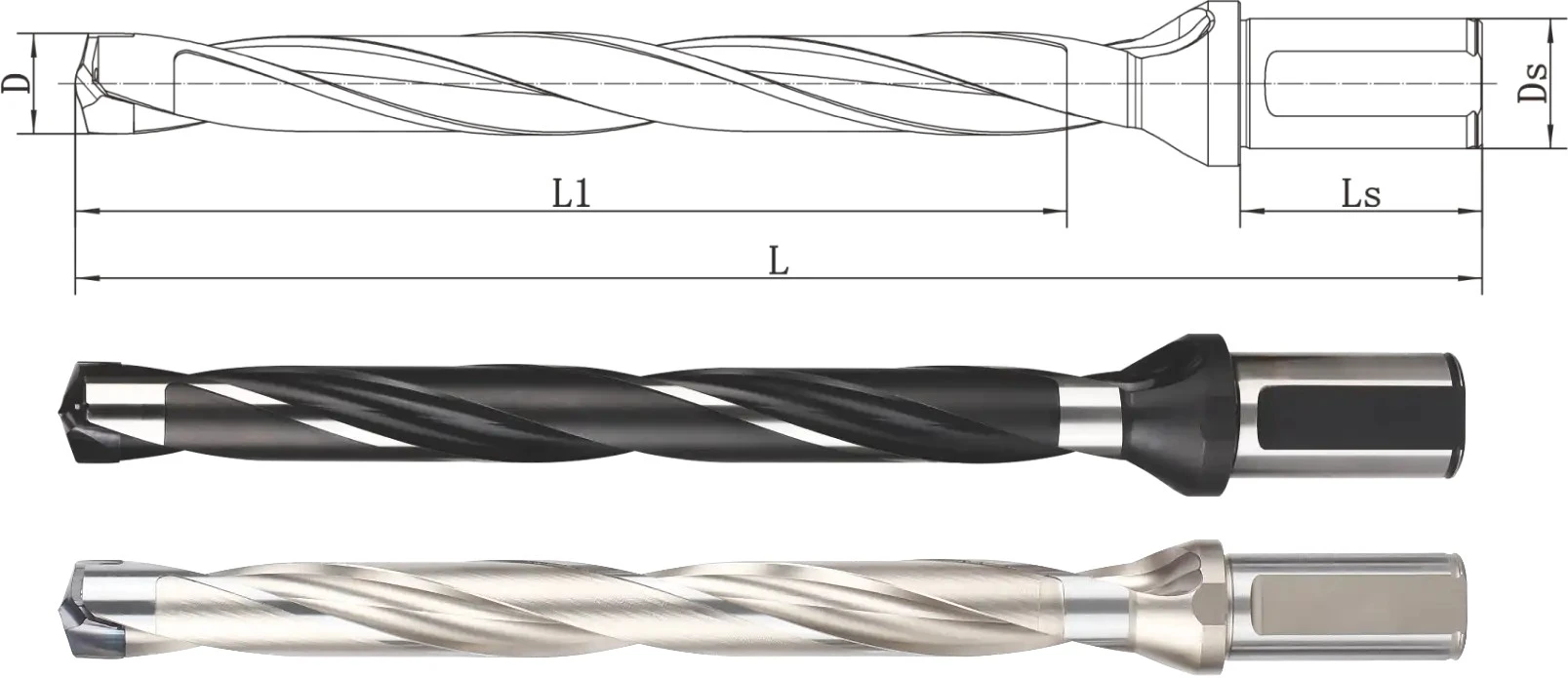

• See page 51 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
