Abstract: This article examines the pin turning boring head as a precision tool for lathe operations. It covers structural design, functional advantages, typical applications, and selection considerations for machinists and B2B buyers working with turning, boring, and internal machining tasks.
Table of Contents
What the Pin Turning Boring Head Does

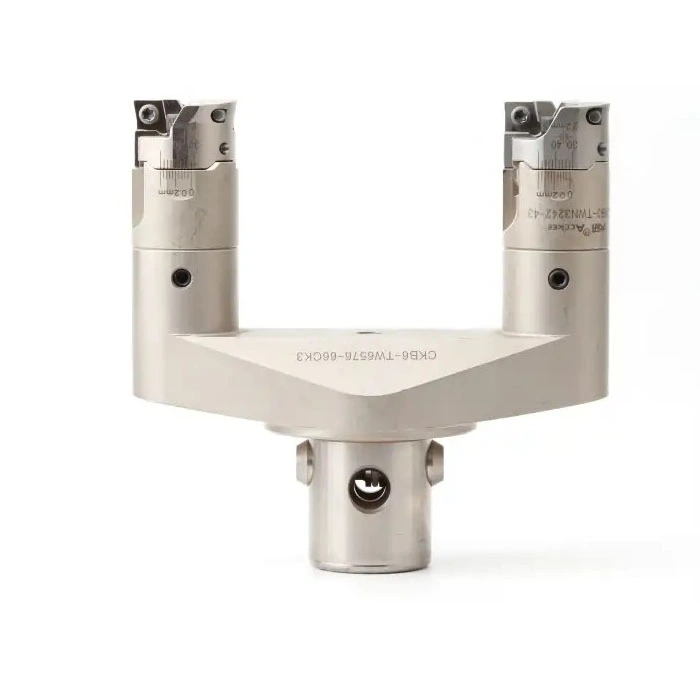

The pin turning boring head is a tool attachment used on lathes for turning and boring operations that require controlled diameter adjustment. It allows the operator to fine-tune the cutting radius without stopping the machine in many configurations, improving efficiency on repetitive internal and external machining tasks.
Unlike fixed boring bars, the pin turning boring head provides an adjustable mechanism. This makes it suitable for jobs where tolerances are tight and multiple diameters are involved.
Structure & Working Principle
The tool is built around a body that holds a sliding or adjustable boring bar. A pin mechanism controls the radial movement, allowing precise changes to the cutting diameter.
Main Body & Mounting
The body mounts to the lathe tool post or carriage. It is designed to hold the boring bar rigidly, minimizing vibration during cutting.
Adjustment Mechanism
A pin or screw-driven system moves the bar in small increments. Graduated markings or dial indicators help the operator set the diameter accurately.
Boring Bar & Cutting Tip
The boring bar carries the cutting insert or tip. Its length and diameter can be selected based on the bore depth and material.
Fine Diameter Control
Allows precise changes to bore or turn diameter.
Stable Cutting
Designed to reduce vibration during boring operations.
Multiple Diameters
Suits jobs requiring several bore sizes on one setup.
Functional Advantages in Machining
Machinists choose the pin turning boring head when they need repeatable results and quick adjustments. The design reduces setup time compared with fixed boring bars and supports tighter tolerance control.
- Precise diameter adjustment for internal and external turning.
- Reduced downtime when switching between bore sizes.
- Improved surface finish through rigid tool holding.
- Suitable for both small-batch and repetitive production.
- Compatible with a range of lathe configurations.
Because the cutting diameter can be adjusted without removing the tool in many cases, operators save time and maintain consistency across a production run.
Typical Applications
The pin turning boring head is used across many machining environments where bore accuracy matters.
General Turning & Boring
Ideal for internal boring of sleeves, bushings, and housings. It also supports external turning when a controlled diameter is required.
Repair & Maintenance Work
In repair shops, the adjustable head helps restore worn bores to specification without replacing the entire component.
Small-Batch Production
Job shops benefit from the quick changeover between diameters, which suits low-volume, high-variety work.
Selection & Setup Considerations
Choosing the right pin turning boring head depends on the lathe, the workpiece, and the required tolerance. The table below outlines key factors.
| Factor | Consideration |
|---|---|
| Boring bar size | Match to bore diameter and depth for adequate rigidity. |
| Adjustment range | Ensure the range covers all required diameters. |
| Mounting type | Confirm compatibility with the lathe tool post or carriage. |
| Insert type | Select based on material and desired surface finish. |
| Graduation accuracy | Finer markings support tighter tolerance control. |
For detailed specifications and compatible configurations, visit the pin turning boring head product page.
Frequently Asked Questions
It is used on lathes for turning and boring operations that require adjustable cutting diameters. It is especially useful for internal boring, repair work, and jobs involving multiple bore sizes.
A pin or screw-driven system moves the boring bar radially in small increments. Graduated markings or a dial indicator help the operator set the diameter precisely.
Yes. Depending on the setup and boring bar orientation, the pin turning boring head can support both internal boring and external turning operations.
Confirm the mounting type matches your lathe tool post, the boring bar size suits your bore dimensions, and the adjustment range covers all required diameters. Also check that the tool is rigid enough for your material.
Why Machinists Use the Pin Turning Boring Head
For operations that demand accurate bore diameters and quick adjustments, the pin turning boring head offers a practical solution. Its adjustable design reduces setup time, supports tight tolerances, and adapts to a range of machining tasks. Whether in a job shop, repair facility, or production environment, it helps maintain consistency and control.
To review specifications and available configurations, explore the pin turning boring head page or reach out to our team for guidance.
