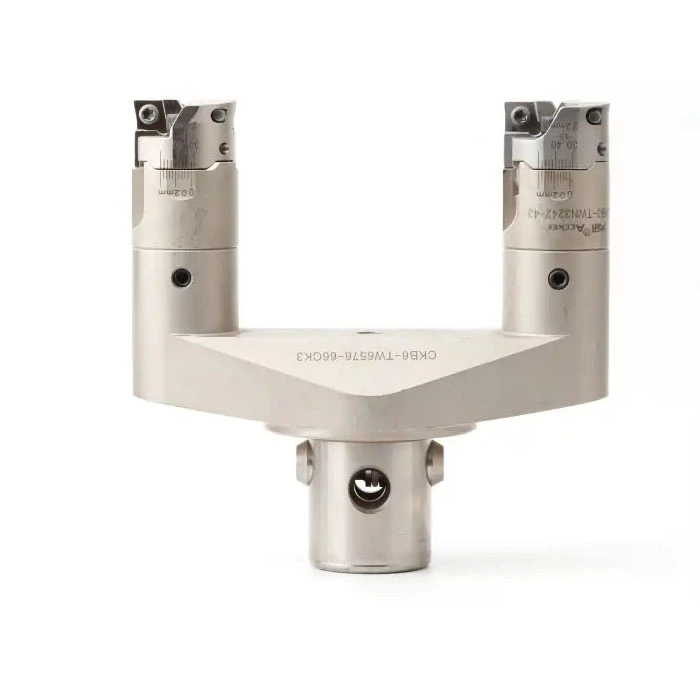

Pin Turning Boring Head
Diameter Range: 22mm – 127mm (0.866” – 5”)
• Length Range: 56mm – 77mm (2.205” – 3.031”)
• Material: H13 Steel
Features and benefits
• Dual opposing insert holders balance cutting forces while both inserts cut simultaneously
• Suitable for internal and external boring
• See page 98 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

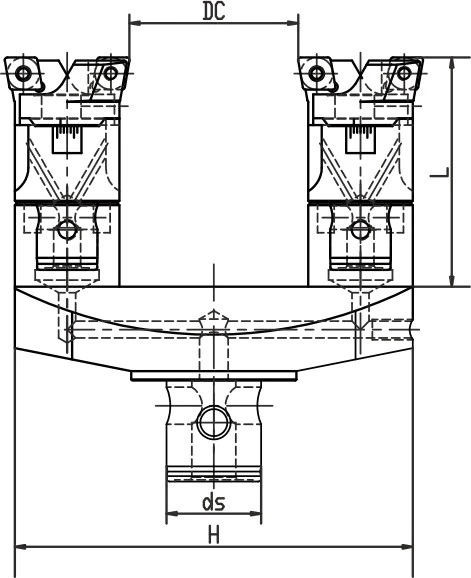

Dimensions & Technical Specifications
7 available configurations
| Cutting Diameter (mm) | Holding Diameter (mm) | Length (mm) | Cutter Block | Cutting Depth (mm) | Outer Cutting Range (mm) |
|---|---|---|---|---|---|
| 80-88 | 28 | 79 | CKB2-TWN2533-38 | 56 | 22-30 |
| 90-98 | 28 | 89 | CKB2-TWN2533-38 | 56 | 32-40 |
| 119-129 | 28 | 118 | CKB3-EWN3242-43 | 67 | 45-55 |
| 129-139 | 36 | 128 | CKB3-EWN3242-43 | 67 | 55-65 |
| 139-149 | 36 | 138 | CKB3-EWN3242-43 | 67 | 65-75 |
| 182-195 | 36 | 179 | CKB4-EWN4154-50 | 77 | 89-100 |
| 209-222 | 36 | 206 | CKB4-EWN4154-50 | 77 | 114-127 |
