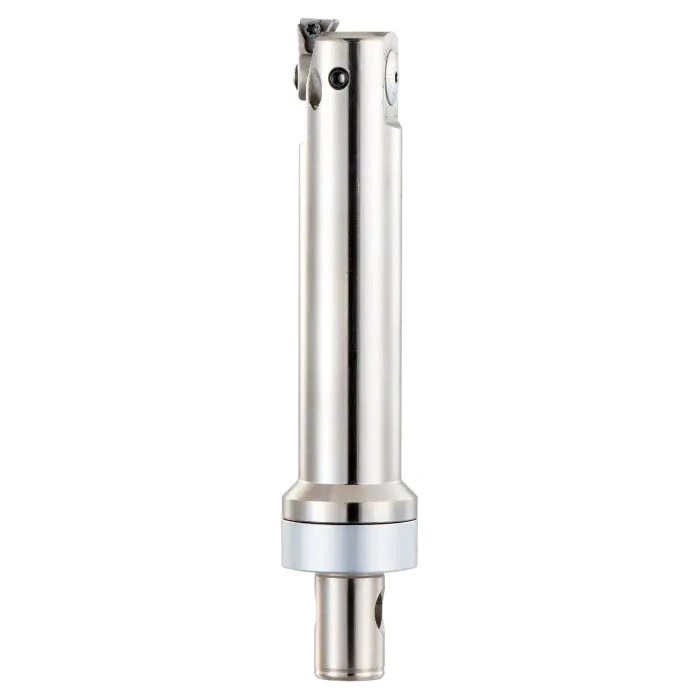

ABS EWN Finish Boring Head

Diameter Range: 20mm – 150mm (0.787” – 5.906”)
• Length Range: 35.5mm – 101mm (1.398” – 3.976”)
• Material: H13 Steel

Features and benefits

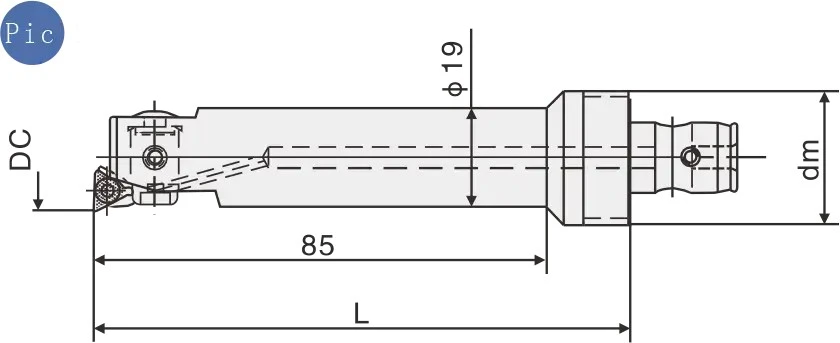

• 85mm cutting length
• Precision vernier adjustment with 0.01mm per division
• Through-coolant supply
• Standard back boring capability
• Supplied with ENH3-1 insert holder
• See page 102 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Dimensions & Technical Specifications

6 available configurations

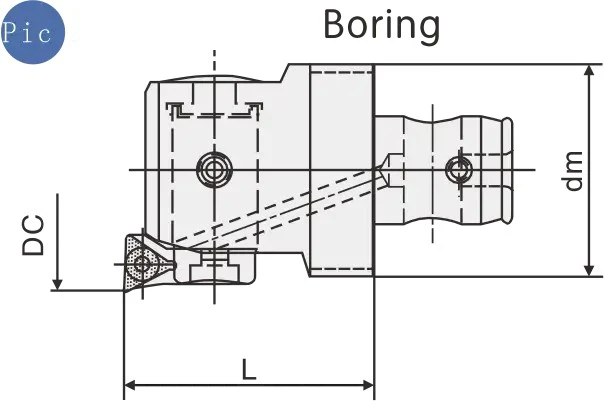

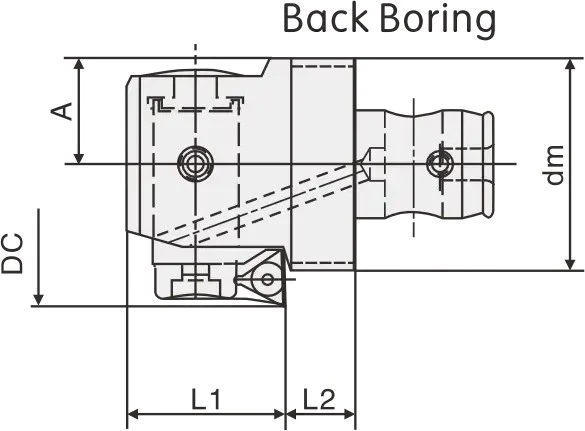

Cutting Diameter (mm)	Holding Diameter (mm)	Length (mm)	Insert	Cutter Block	Cutter Block Screw	Mass (kg)	Cutter Block Wrench	Counter Boring Cutting Diameter (mm)	Counter Boring Depth (outer L1) (mm)	Counter Boring Depth (inner L2) (mm)	Inner Radius (A) (mm)
20-26	25	101	TP..0802..	ENH1-1	M2×5	0.13	T6	30-31	20	10	10

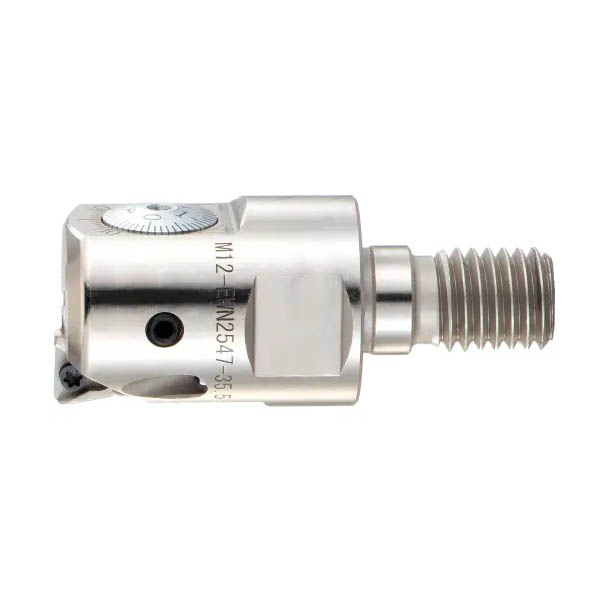

26-33	25	35.5	TP..0802..	ENH2-1	M2×5	0.16	T6	36-40	22	10	12.5
33-42	32	40	TP..0802..	ENH3-1	M2×5	0.27	T6	46-51	25	9	16
41-54	40	47	TC..1102..	ENH4-1	M2.5×6	0.47	T8	53-63	30	13	20
53-70	50	57	TP..1103..	ENH5-1	M3×8	1.32	T10	62-70	34	19	25.5
68-100	63	71	TC..1102..	ENH6-1	M2.5×6	1.78	T8	80-100	45	23	32.5
