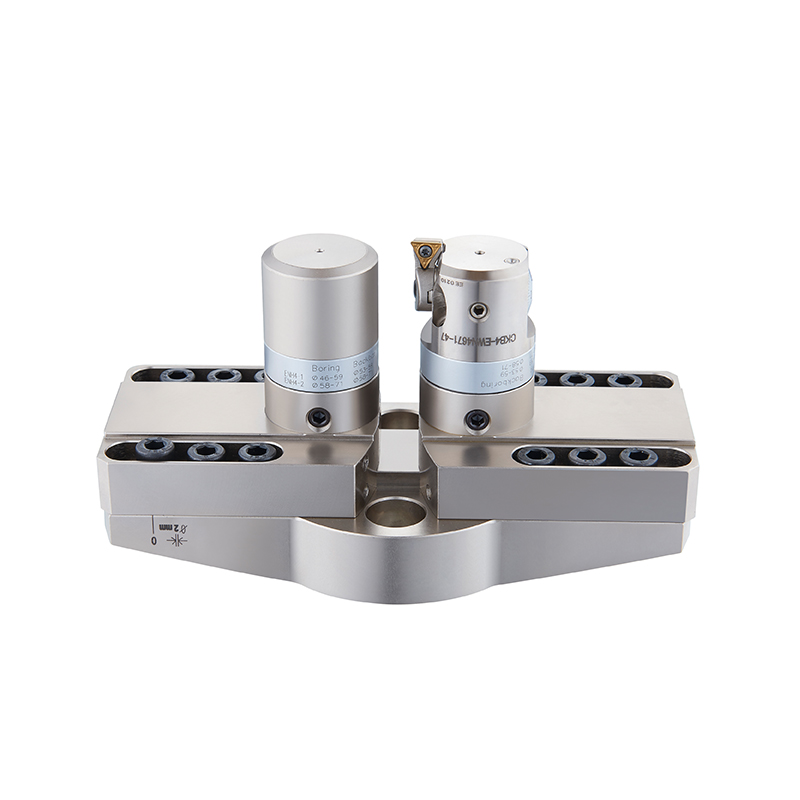

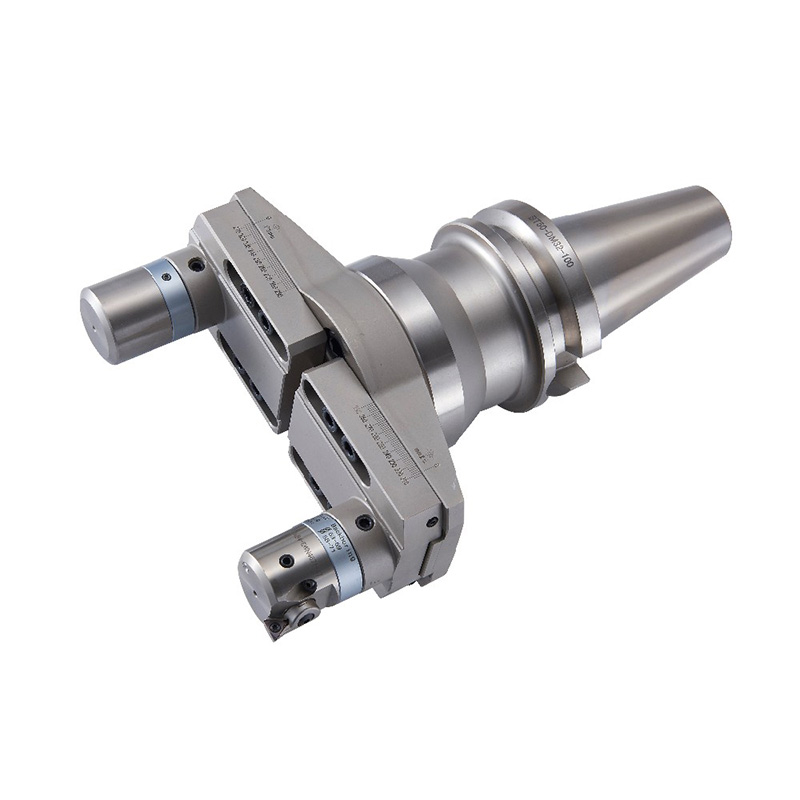

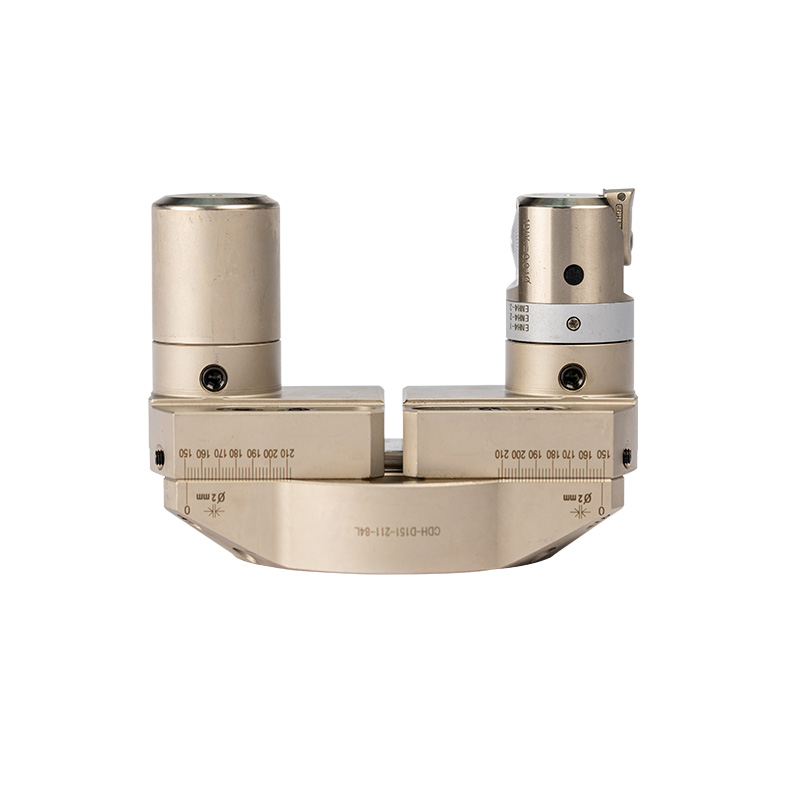

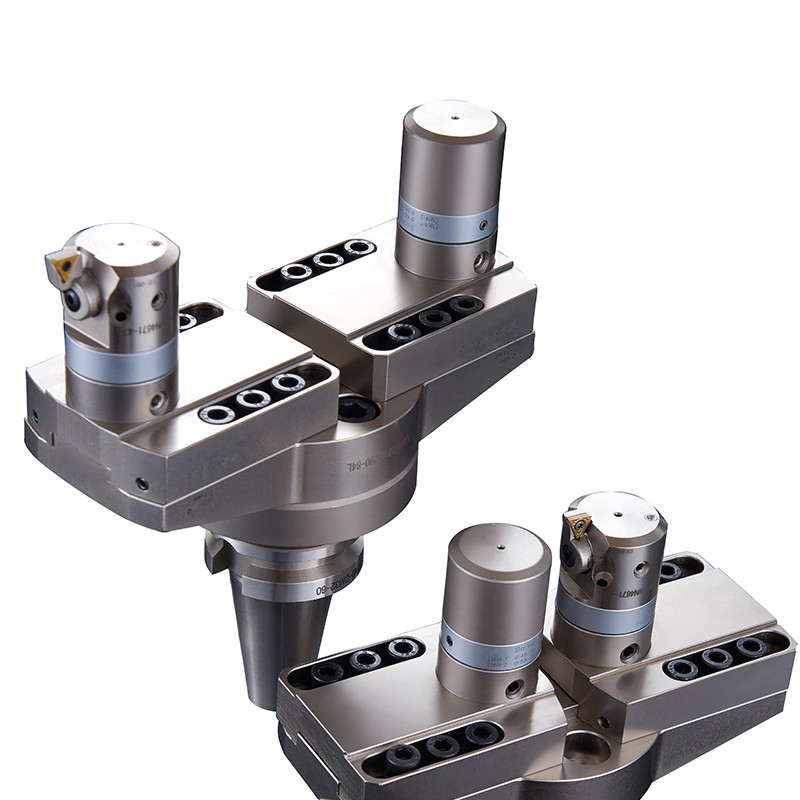

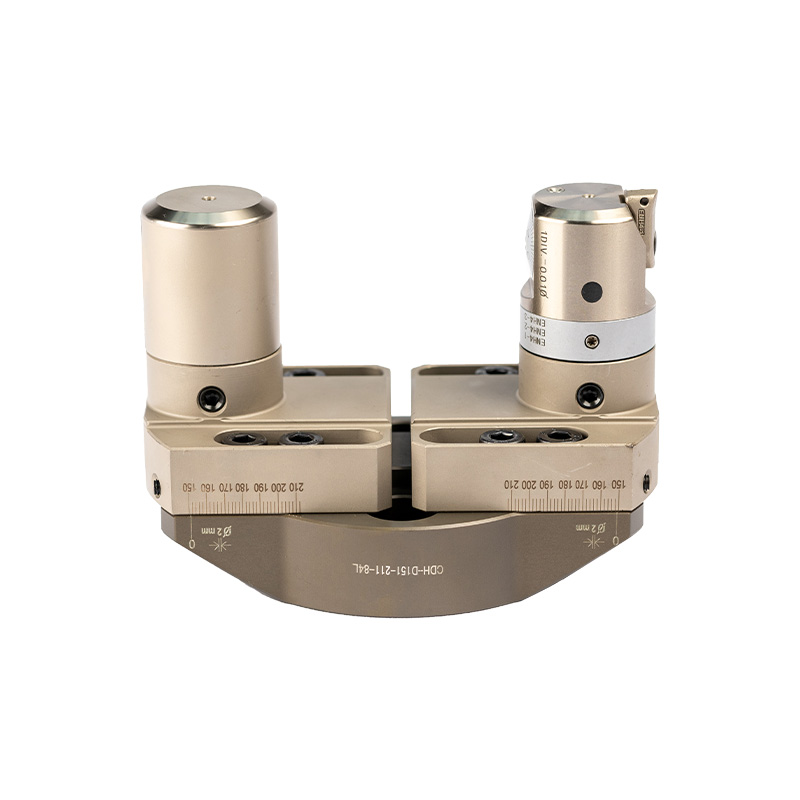

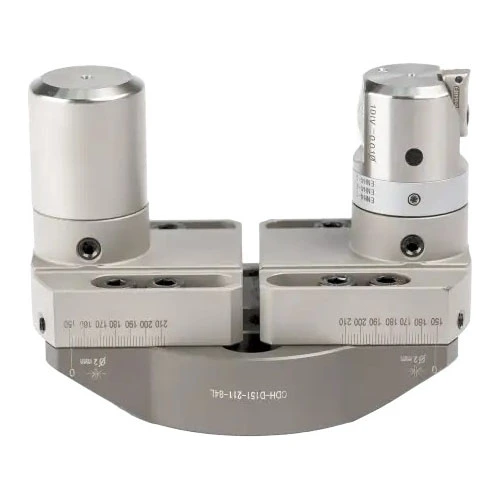

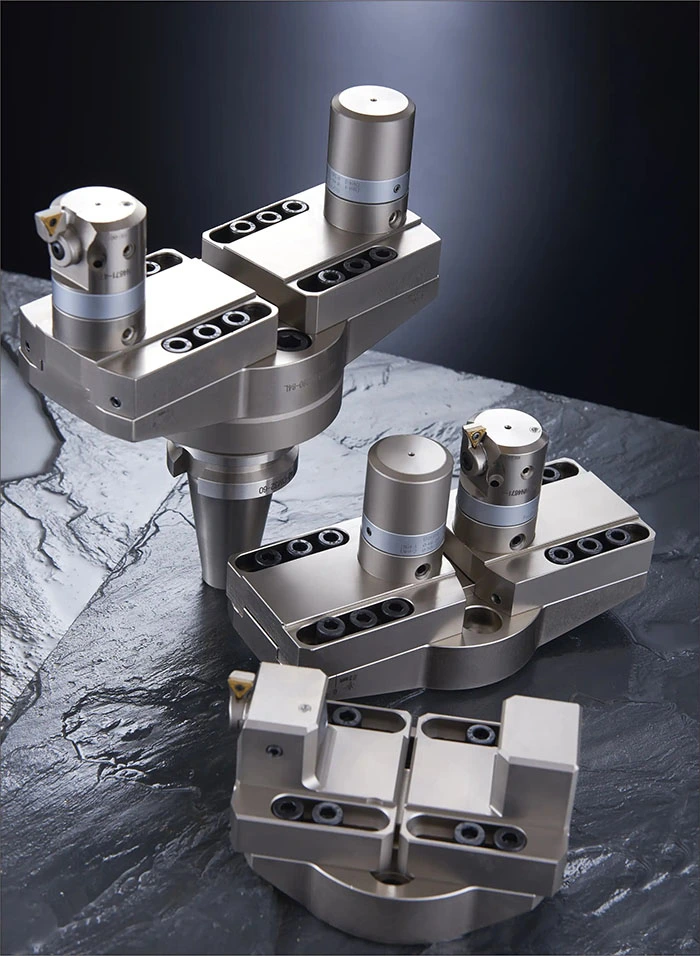

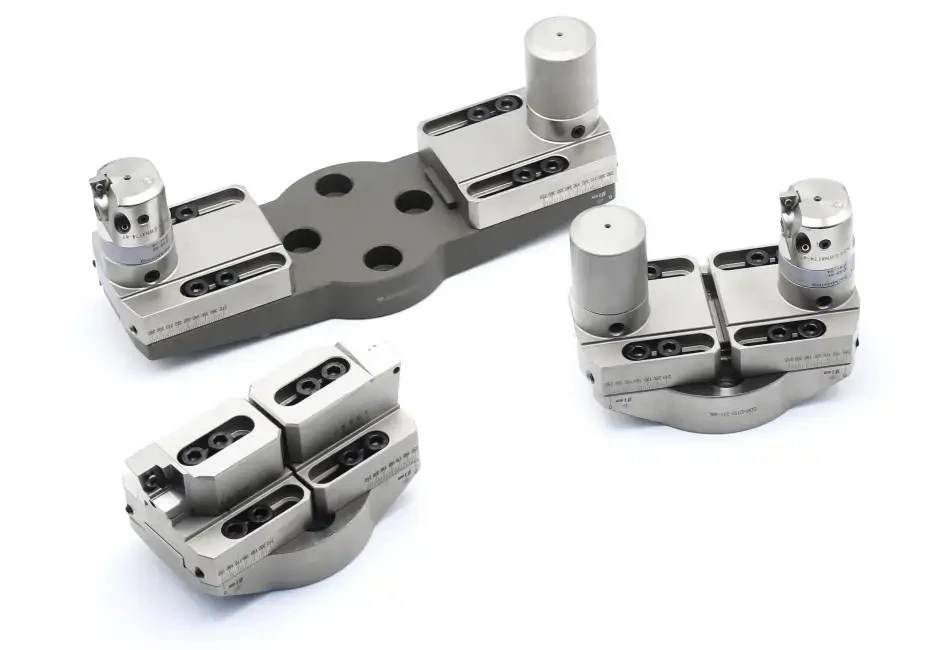

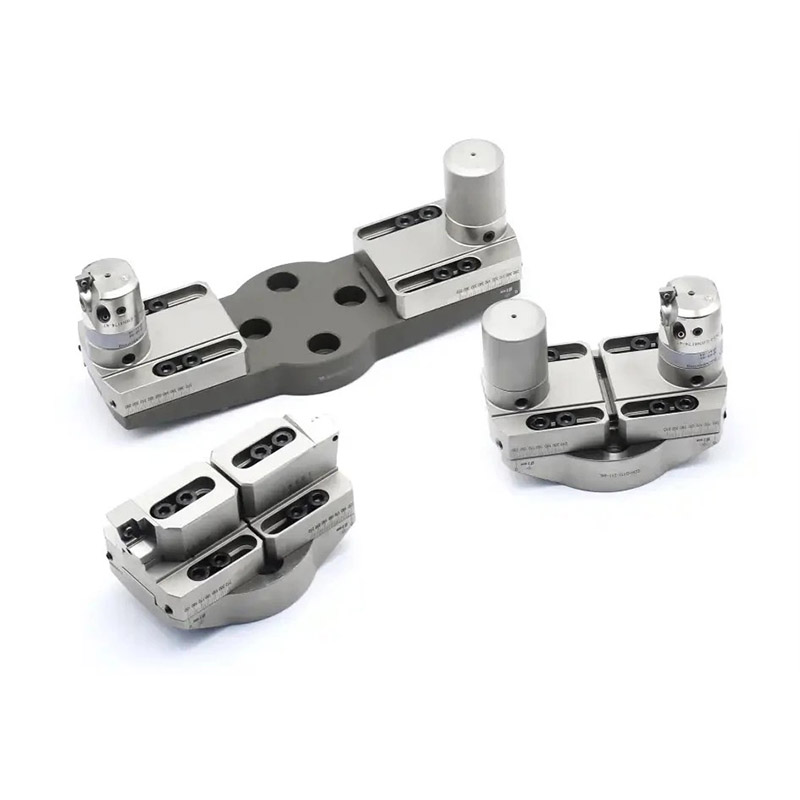

Large Diameter Finish Boring Head
Diameter Range: 151mm – 750mm (5.945” – 29.528”)
• Length Range: 84mm (3.307”)
• Material: H13 Steel
Features and benefits
• PAT. Diameter Range: 151mm – 750mm
• Diameter adjustment with 0.01mm per division

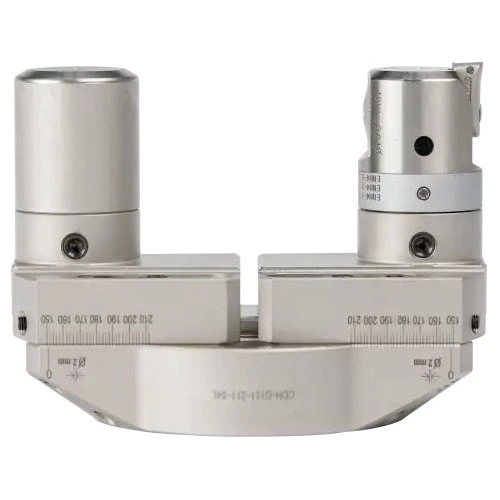

• Dual-arm design with one cutting arm and one counterweight
• Pre-balanced design minimizes vibration during finishing
• See page 106 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

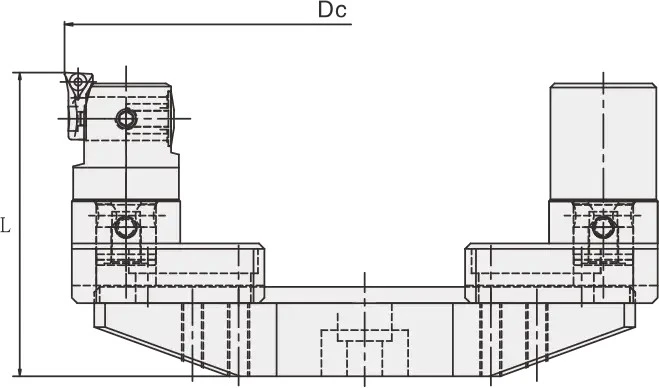

Dimensions & Technical Specifications
9 available configurations
| Cutting Diameter (mm) | Length (mm) | Insert | Insert Screw | Insert Wrench | Cutter Block Screw | Slide Trimmer Screw | Mass (kg) | Cutter Block Wrench | Slide Trimmer Wrench |
|---|---|---|---|---|---|---|---|---|---|
| 151-211 | 84 | TP1103.. | M3*7 | M3*7 | M6*20 | M8*25 | 4.75 | L6 | L2.5 |
| 210-290 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 5.15 | L6 | L2.5 |
| 290-370 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 6.12 | L6 | L2.5 |
| 370-450 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 7.05 | L6 | L2.5 |
| 450-550 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 8 | L6 | L2.5 |
| 550-650 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 9.05 | L6 | L2.5 |
| 650-750 | 84 | TP1103.. | M3*7 | M3*7 | M6*25 | M8*25 | 10.05 | L6 | L2.5 |
| 8-55 | 78 | TP1103.. | M3*7 | T8 | — | — | 2.9 | — | — |
| — | — | TP1103.. | M3*7 | T8 | — | — | 3.4 | — | — |
