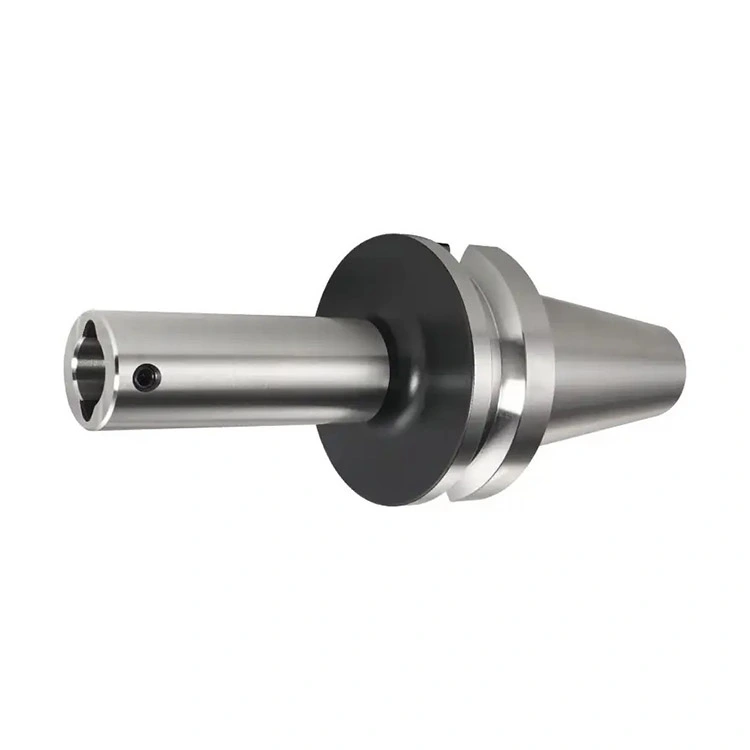

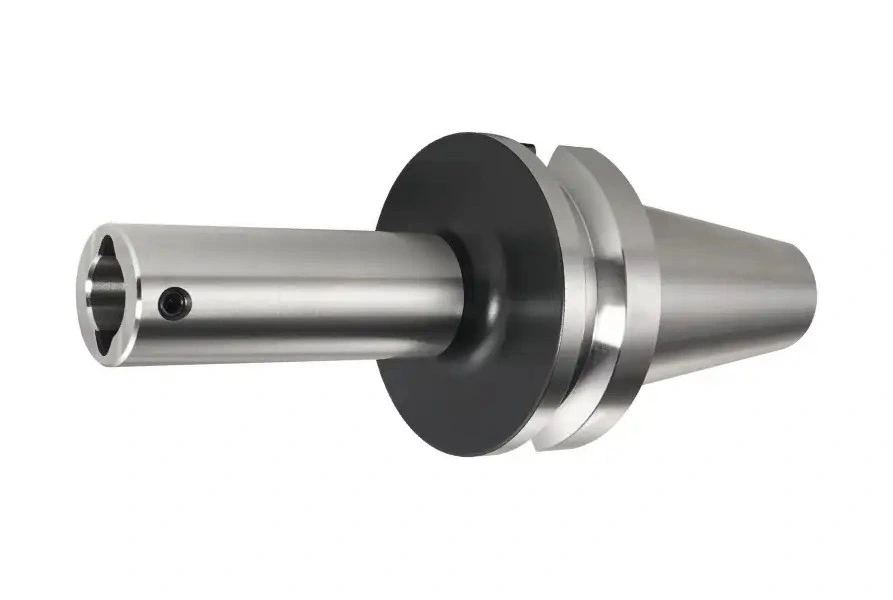

BBT Boring Holder
Diameter Range: 19mm – 64mm (0.748” – 2.519”)
• Length Range: 115mm – 160mm (4.528” – 6.299”)
• Material: H13 Steel
Features and benefits
• Dual-contact spindle interface engages both taper and flange face
• Reduced vibration during high-speed machining
• Single precision clamping screw
• See page 112 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

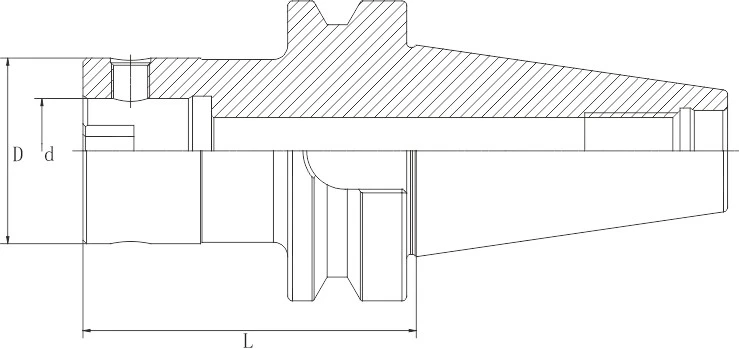

Dimensions & Technical Specifications
7 available configurations
| Hole Diameter (mm) | Seat Diameter (mm) | Seat Length (mm) |
|---|---|---|
| 11 | 19 | 115 |
| 14 | 24 | 125 |
| 18 | 31 | 125 |
| 22 | 39 | 135 |
| 28 | 50 | 165 |
| 36 | 64 | 60 |
| 36 | 64 | 160 |
