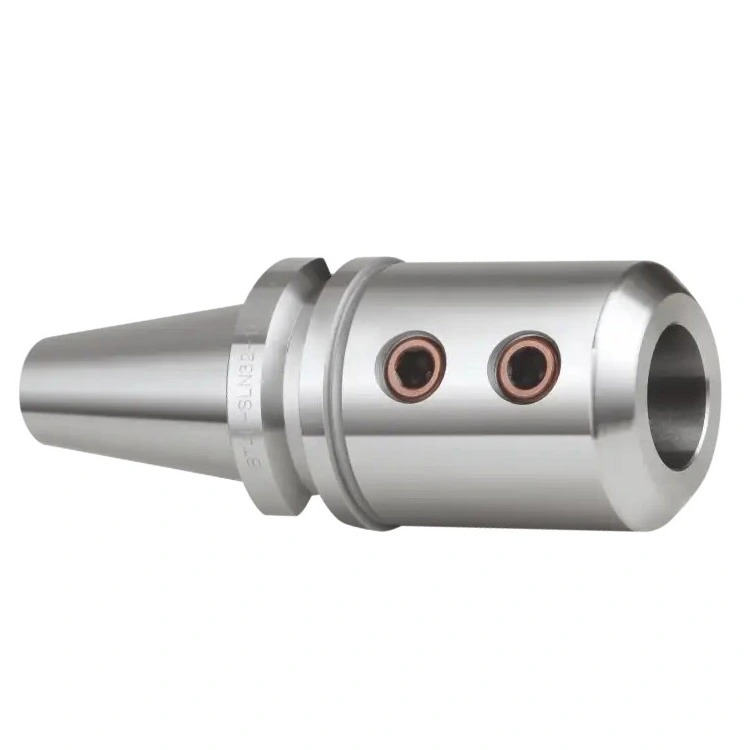

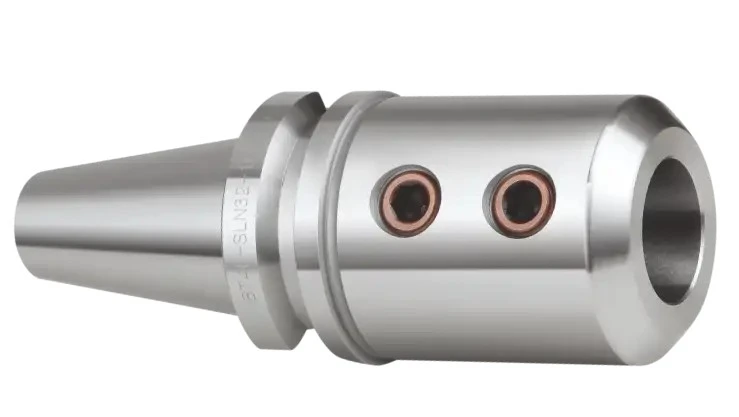

Morse Taper Holder
Diameter Range: 25mm – 40mm (0.984” – 1.575”)
• Length Range: 100mm – 115mm (3.937” – 4.528”)
• Material: H13 Steel
Features and benefits
• Designed for Morse taper shank tools
• Self-centering taper interface provides accurate alignment and high rigidity
• Three precision clamping screws improve holding strength and machining stability
• Suitable for drilling and boring applications
• See page 91 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

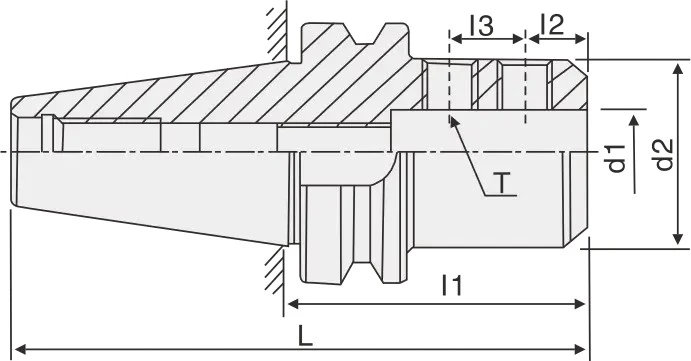

Dimensions & Technical Specifications
6 available configurations
| Hole Diameter (mm) | Seat Diameter (mm) | Seat Length (mm) | Connection Thread (G) | Tip Length (mm) | Tip Diameter (mm) |
|---|---|---|---|---|---|
| 25 | 55 | 100 | M14 | 117.5 | 24.5 |
| 32 | 65 | 105 | M14 | 117.5 | 24.5 |
| 40 | 75 | 115 | M14 | 117.5 | 24.5 |
| 25 | 55 | 100 | M14 | 149.5 | 35.7 |
| 32 | 65 | 105 | M14 | 149.5 | 35.7 |
| 40 | 75 | 115 | M14 | 149.5 | 35.7 |
