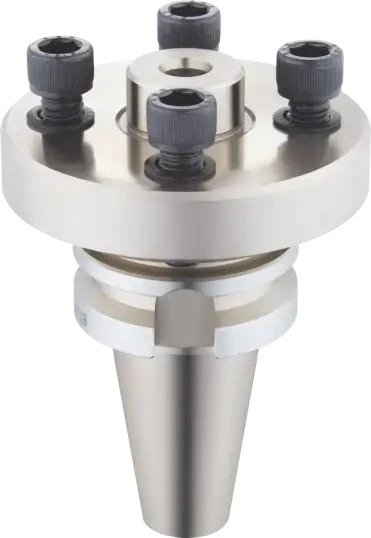

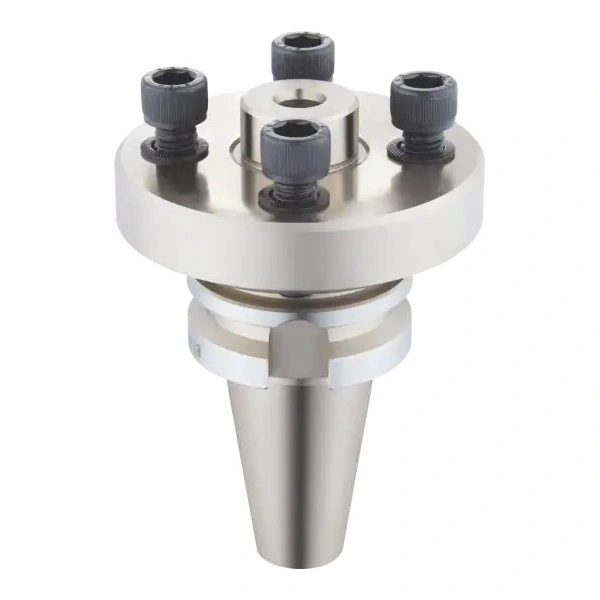

Large Diameter Boring Head Holder
Diameter Range: 100mm (3.937”)
• Length Range: 60mm – 300mm (2.362” – 11.81”)
• Material: H13 Steel
Features and benefits

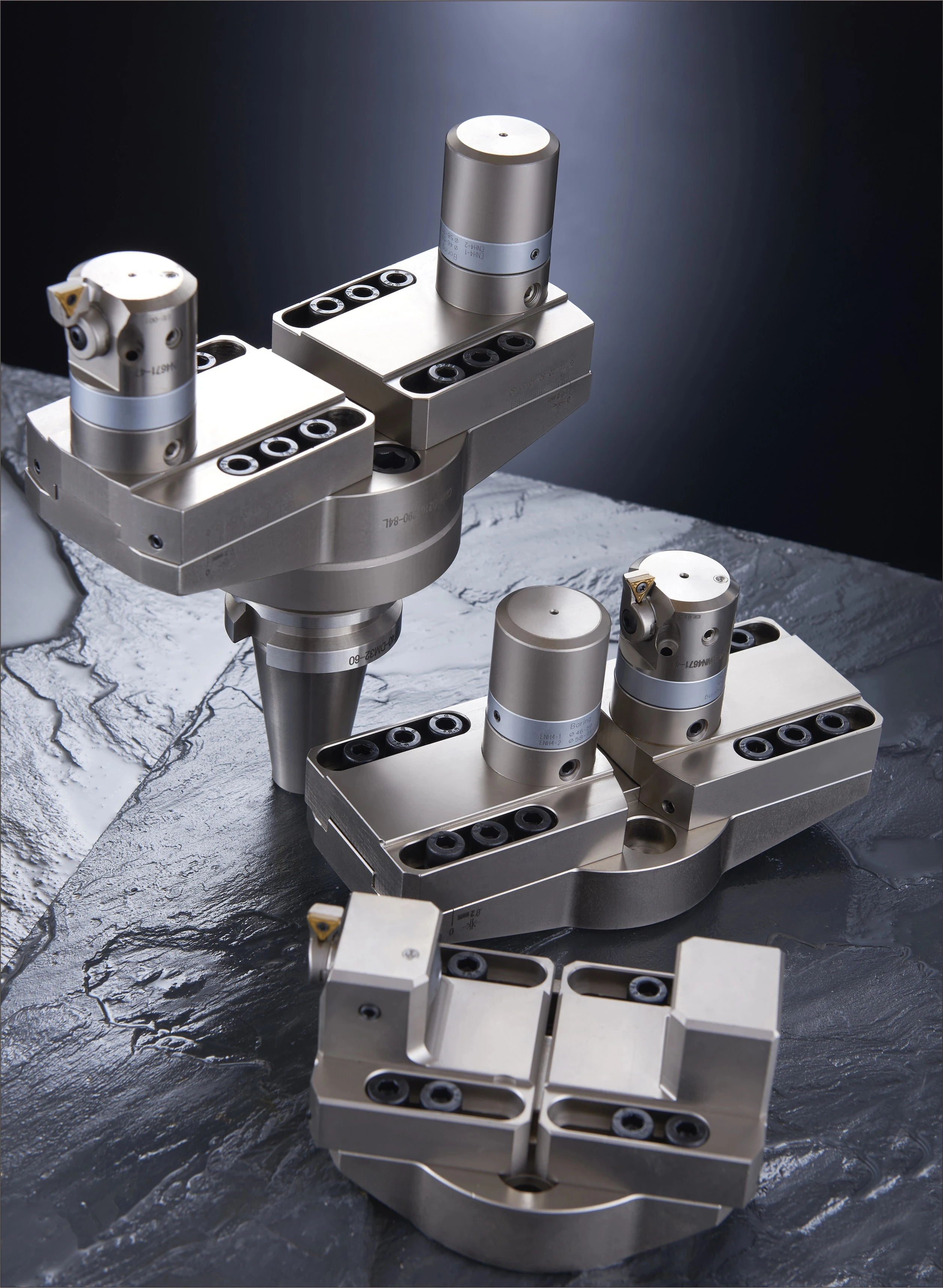

• Designed for Acckee large-diameter boring heads
• Rigid construction withstands high cutting forces during roughing and finishing
• Four-point clamping system evenly distributes cutting forces
• Four clamping screws improve rigidity and reduce vibration
• See page 108 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description

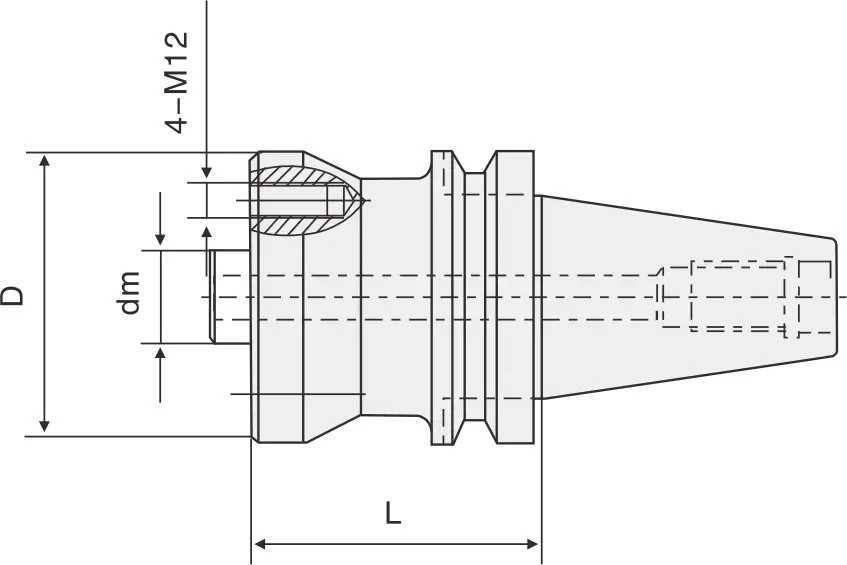

Dimensions & Technical Specifications
6 available configurations
| Hole Diameter (mm) | Seat Diameter (mm) | Seat Length (mm) | Connection Thread (G) | Mass (kg) |
|---|---|---|---|---|
| 32 | 100 | 60 | 4–M12 | 2.42 |
| 32 | 100 | 100 | 4–M12 | 6.3 |
| 32 | 100 | 150 | 4–M12 | 9.2 |
| 32 | 100 | 200 | 4–M12 | 11.1 |
| 32 | 100 | 250 | 4–M12 | 12.9 |
| 32 | 100 | 300 | 4–M12 | 14.8 |
