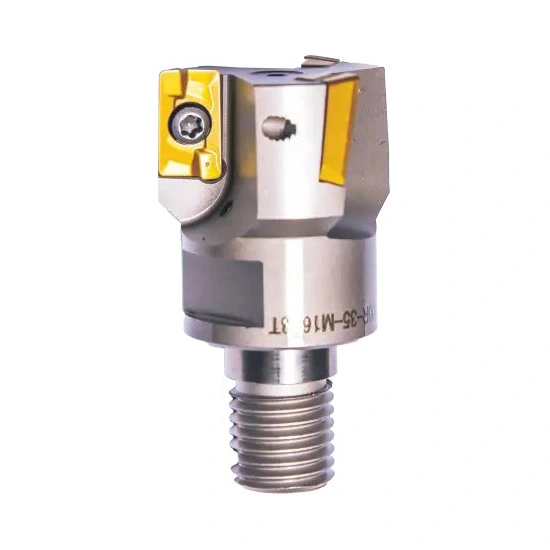

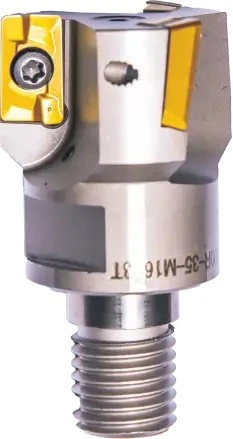

Modular Milling Cutter

Diameter Range: 16mm – 35mm (0.63” – 1.378”)
• Length Range: 25mm – 43mm (0.984” – 1.693”)
• Material: H13 Steel

Features and benefits

• Accommodates 3 indexable APMT type carbide inserts
• Suitable for face milling and general milling operations

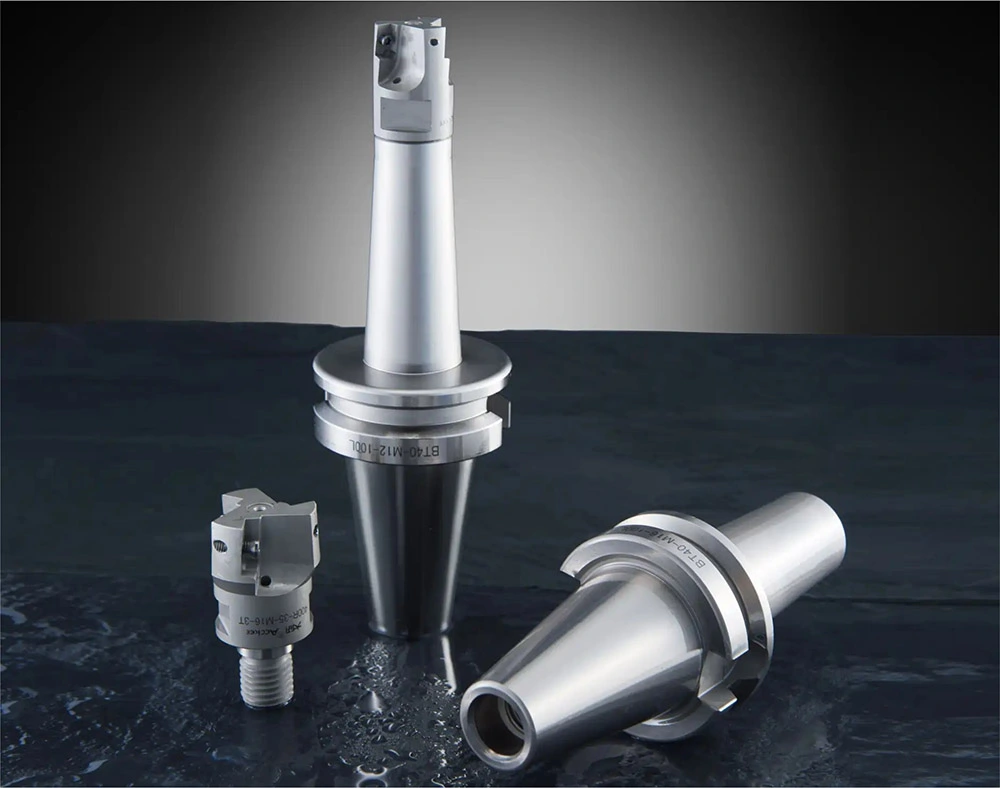

• Mounts directly to the CKB Holder
• Modular design allows quick conversion between boring and milling operations
• See page 116 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

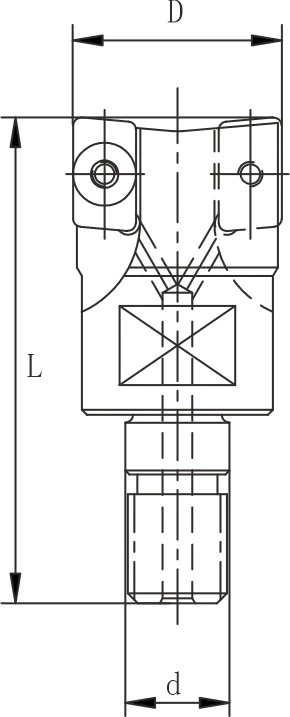

Dimensions & Technical Specifications

23 available configurations

Cutting Diameter (mm)	Piece Diameter (mm)	Length (mm)	Insert	Teeth	Screw	Mass (kg)
16	8.5	25	APMT1135	2	M8	0.05
17	8.5	25	APMT1135	2	M8	0.05
20	10.5	30	APMT1135	2	M10	0.07
20	10.5	30	APMT1135	3	M10	0.07
21	10.5	30	APMT1135	2	M10	0.07
21	10.5	30	APMT1135	3	M10	0.07
22	10.5	30	APMT1135	3	M10	0.09
25	12.5	35	APMT1135	3	M12	0.12
26	12.5	35	APMT1135	3	M12	0.12
32	17	43	APMT1135	4	M16	0.24
32	17	43	APMT1135	5	M16	0.23
33	17	43	APMT1135	4	M16	0.25
33	17	43	APMT1135	5	M16	0.24
35	17	43	APMT1135	4	M16	0.31
35	17	43	APMT1135	5	M16	0.31
36	17	43	APMT1135	5	M16	0.32
25	12.5	38	APMT1604	2	M12	0.13
26	12.5	38	APMT1604	2	M12	0.14
32	17	43	APMT1604	2	M16	0.26
32	17	43	APMT1604	3	M16	0.25
33	17	43	APMT1604	2	M16	0.27
33	17	43	APMT1604	3	M16	0.27
35	17	43	APMT1604	3	M16	0.3
