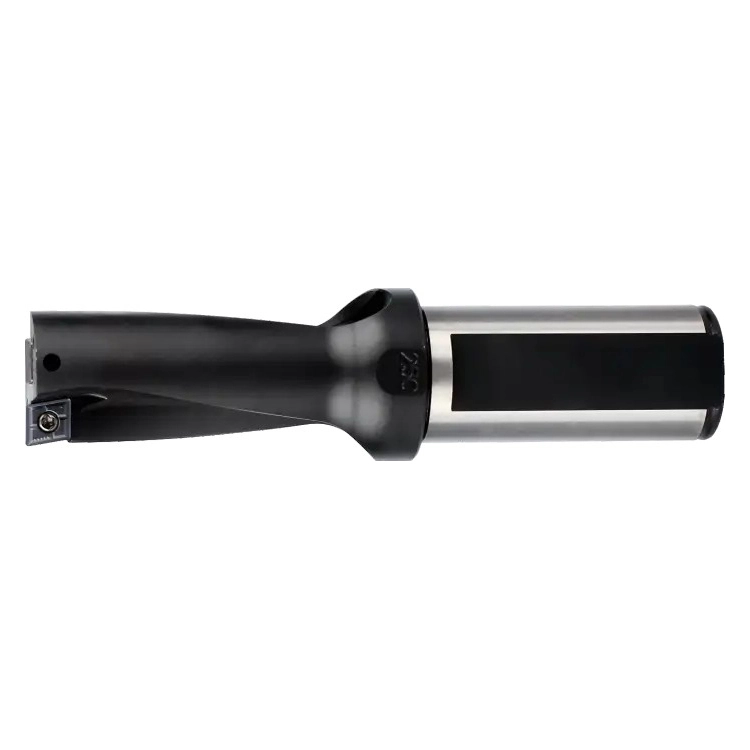

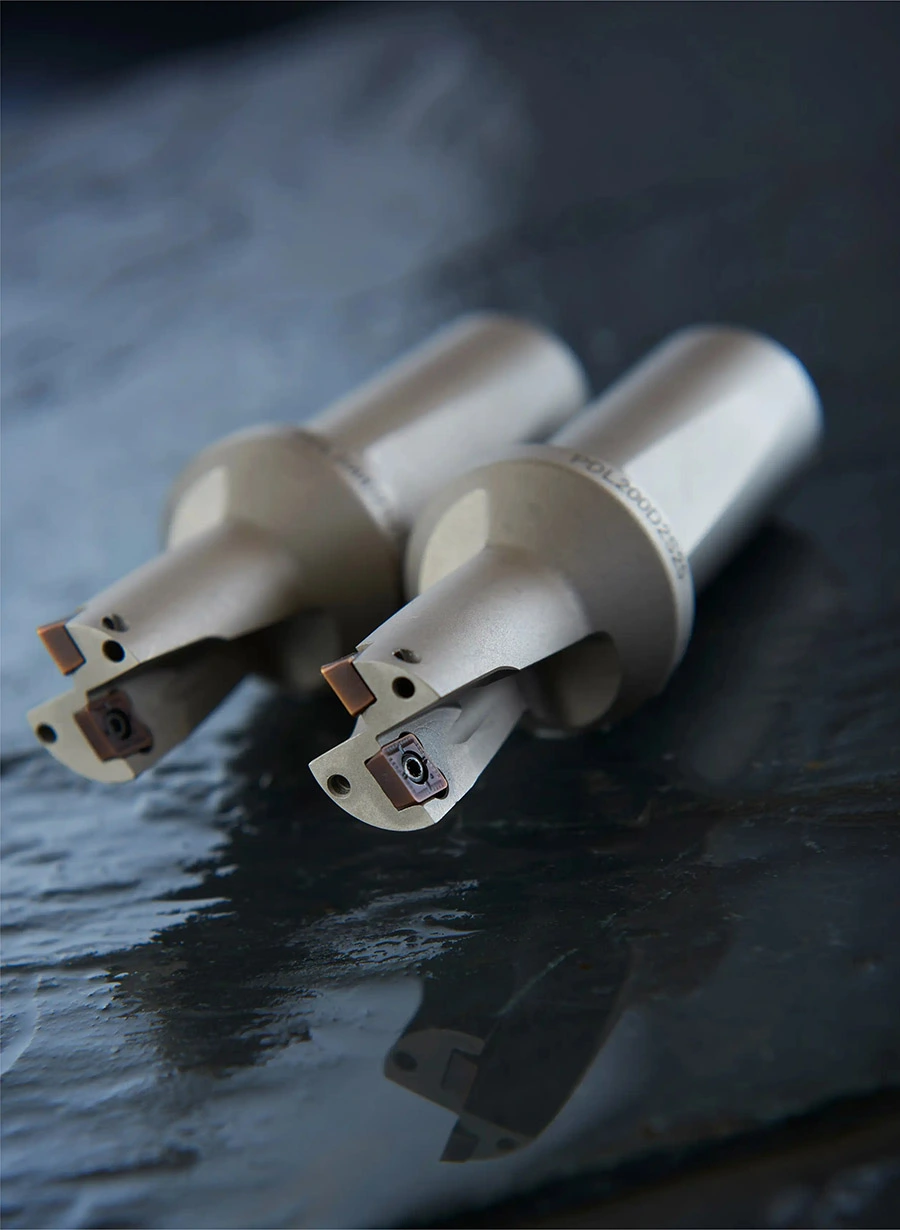

WDX U Drill Bits

Diameter Range: 15mm – 35mm (0.591” – 1.378”)
• Length Range: 2XD
• Solely available in H13 steel for high precision machining

Features and benefits

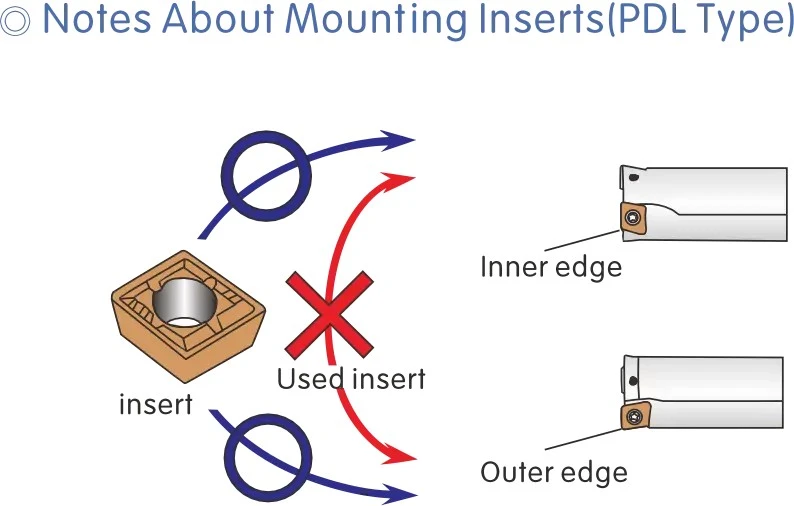

• Featuring a peripheral and center edge which use the same WDXT insert with varying orientations
• The Y type center outlet allows for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel

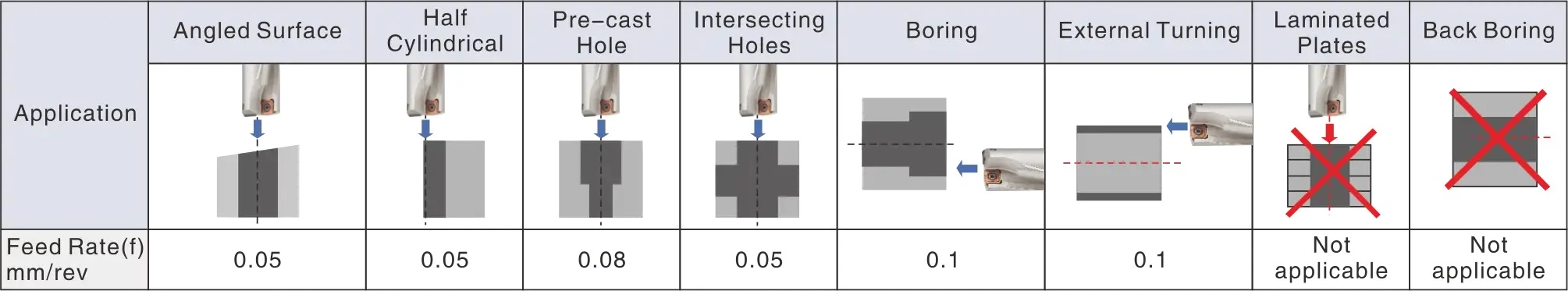

• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.

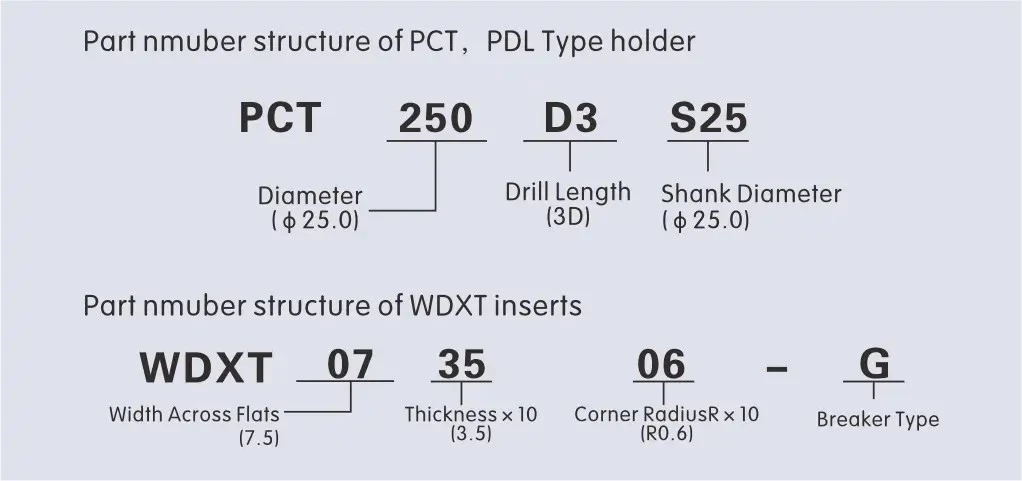

• See page 26 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

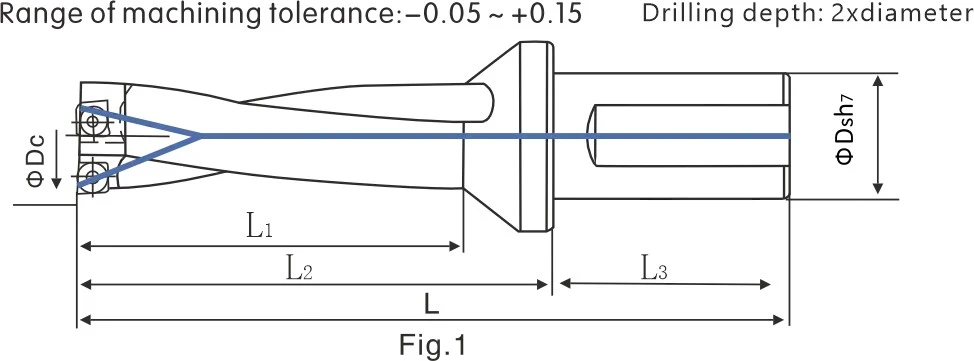

Dimensions & Technical Specifications

21 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Total Length (mm)	Cutting Length (mm)	Holding Length (mm)	XD Length	Applicable Insert	Mass (kg)
15	25	92	33	56	2	WDXT042004	0.2
16	25	94	35	56	2	WDXT052504	0.2
17	25	96	37	56	2	WDXT052504	0.2
18	25	112	39	56	2	WDXT052504	0.3
19	25	114	41	56	2	WDXT063006	0.3
20	25	116	43	56	2	WDXT063006	0.3
21	25	118	45	56	2	WDXT063006	0.3
22	25	120	47	56	2	WDXT063006	0.4
23	25	122	49	56	2	WDXT073506	0.4
24	25	124	51	56	2	WDXT073506	0.4
25	25	126	53	56	2	WDXT073506	0.4
26	32	135	55	70	2	WDXT073506	0.6
27	32	137	57	70	2	WDXT073506	0.6
28	32	139	59	70	2	WDXT073506	0.7
29	32	143	62	70	2	WDXT094008	0.7
30	32	148	64	70	2	WDXT094008	0.7
31	32	150	66	70	2	WDXT094008	0.8
32	32	152	68	70	2	WDXT094008	0.8
33	32	154	70	70	2	WDXT094008	0.8
34	32	156	72	70	2	WDXT094008	0.8
35	32	158	74	70	2	WDXT094008	0.8
