XO U Drill

Diameter Range: 12mm – 35mm (0.472” – 1.378”)
• Length Range: 2XD – 5XD
• Solely available in H13 steel for high precision machining

Features and benefits

• Featuring a peripheral edge with a SPMT insert and a center edge with an XOMT insert to combine the benefits of a sharp flat outer edge and pointed center
• The Y type center outlet allows for efficient chip evacuation
• Indexable carbide inserts allow for versatility in workpiece material up to P grade steel
• Designed for straight hole drilling, angled surfaces, half cylindrical, pre-cast holes, intersecting holes, boring, external turning, and rough casted, forged or welded entry surfaces
• Two coolant channels allow for increased flow, improving metal removal rates, tool life, and overall productivity.
• The high-rigidity drill body minimizes vibration and noise, delivering exceptional hole size accuracy and superior hole quality.
• See page 27 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

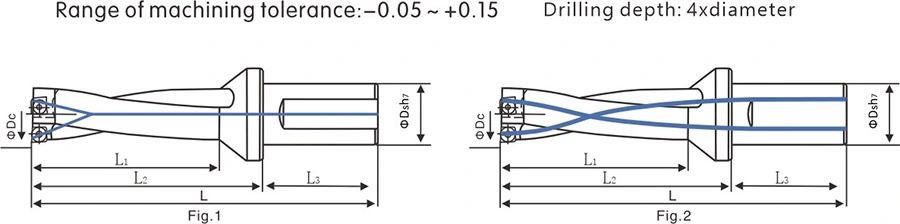

Dimensions & Technical Specifications

96 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Total Length (mm)	Cutting Length (mm)	Holding Length (mm)	XD Length	Applicable Insert
12	20	90	25	44	2	SPMT040204 XOMT040204
13	20	88	29	44	2	SPMT040204 XOMT040204
14	20	90	31	44	2	SPMT050204 XOMT050204
15	20	92	33	44	2	SPMT050204 XOMT050204
16	20	94	35	44	2	SPMT050204 XOMT050204
17	25	96	37	56	2	SPMT060205 XOMT060205
18	25	110	39	56	2	SPMT060205 XOMT060205
19	25	112	41	56	2	SPMT060205 XOMT060205
20	25	114	43	56	2	SPMT07T208 XOMT07T208
21	25	116	45	56	2	SPMT07T208 XOMT07T208
22	25	118	47	56	2	SPMT07T208 XOMT07T208
23	25	123	49	56	2	SPMT07T208 XOMT07T208
24	25	125	51	60	2	SPMT090308 XOMT090308
25	25	127	53	60	2	SPMT090308 XOMT090308
26	32	135	55	60	2	SPMT090308 XOMT090308
27	32	137	57	60	2	SPMT090308 XOMT090308
28	32	139	59	60	2	SPMT090308 XOMT090308
29	32	143	62	60	2	SPMT090308 XOMT090308
30	32	148	64	60	2	SPMT11T308 XOMT11T308
31	32	150	66	60	2	SPMT11T308 XOMT11T308
32	32	152	68	60	2	SPMT11T308 XOMT11T308
33	32	154	70	60	2	SPMT11T308 XOMT11T308
34	32	156	72	60	2	SPMT11T308 XOMT11T308
35	32	158	74	60	2	SPMT11T308 XOMT11T308
12	20	115	50	44	4	SPMT040204 XOMT040204
13	20	114	55	44	4	SPMT040204 XOMT040204
14	20	118	59	44	4	SPMT050204 XOMT050204
15	20	122	63	44	4	SPMT050204 XOMT050204
16	20	126	67	44	4	SPMT050204 XOMT050204
17	25	130	71	56	4	SPMT060205 XOMT060205
18	25	146	75	56	4	SPMT060205 XOMT060205
19	25	150	79	56	4	SPMT060205 XOMT060205
20	25	154	83	56	4	SPMT07T208 XOMT07T208
21	25	158	87	56	4	SPMT07T208 XOMT07T208
22	25	162	91	56	4	SPMT07T208 XOMT07T208
23	25	169	95	56	4	SPMT07T208 XOMT07T208
24	25	173	99	60	4	SPMT090308 XOMT090308
25	25	177	103	60	4	SPMT090308 XOMT090308
26	32	187	107	60	4	SPMT090308 XOMT090308
27	32	191	111	60	4	SPMT090308 XOMT090308
28	32	195	115	60	4	SPMT090308 XOMT090308
29	32	201	120	60	4	SPMT090308 XOMT090308
30	32	208	124	60	4	SPMT11T308 XOMT11T308
31	32	212	128	60	4	SPMT11T308 XOMT11T308
32	32	216	132	60	4	SPMT11T308 XOMT11T308
33	32	220	136	60	4	SPMT11T308 XOMT11T308
34	32	224	140	60	4	SPMT11T308 XOMT11T308
35	32	228	146	60	4	SPMT11T308 XOMT11T308
12	20	102	37	50	3	SPMT040204 XOMT040204
13	20	101	42	50	3	SPMT040204 XOMT040204
14	20	104	45	50	3	SPMT050204 XOMT050204
15	20	107	48	50	3	SPMT050204 XOMT050204
16	20	110	51	50	3	SPMT050204 XOMT050204
17	25	113	54	56	3	SPMT060205 XOMT060205
18	25	128	57	56	3	SPMT060205 XOMT060205
19	25	131	60	56	3	SPMT060205 XOMT060205
20	25	134	63	56	3	SPMT07T208 XOMT07T208
21	25	137	66	56	3	SPMT07T208 XOMT07T208
22	25	140	69	56	3	SPMT07T208 XOMT07T208
23	25	146	72	56	3	SPMT07T208 XOMT07T208
24	25	149	75	60	3	SPMT090308 XOMT090308
25	25	152	78	60	3	SPMT090308 XOMT090308
26	32	161	81	60	3	SPMT090308 XOMT090308
27	32	164	84	60	3	SPMT090308 XOMT090308
28	32	167	87	60	3	SPMT090308 XOMT090308
29	32	172	91	60	3	SPMT090308 XOMT090308
30	32	178	94	60	3	SPMT11T308 XOMT11T308
31	32	181	97	60	3	SPMT11T308 XOMT11T308
32	32	184	100	60	3	SPMT11T308 XOMT11T308
33	32	187	103	60	3	SPMT11T308 XOMT11T308
34	32	190	106	60	3	SPMT11T308 XOMT11T308
35	32	193	109	60	3	SPMT11T308 XOMT11T308
12	20	124	63	44	5	SPMT040204 XOMT040204
13	20	129	68	44	5	SPMT040204 XOMT040204
14	20	133	73	44	5	SPMT050204 XOMT050204
15	20	137	78	44	5	SPMT050204 XOMT050204
16	20	142	83	44	5	SPMT050204 XOMT050204
17	25	147	88	56	5	SPMT060205 XOMT060205
18	25	164	93	56	5	SPMT060205 XOMT060205
19	25	169	98	56	5	SPMT060205 XOMT060205
20	25	174	103	56	5	SPMT07T208 XOMT07T208
21	25	179	108	56	5	SPMT07T208 XOMT07T208
22	25	184	113	56	5	SPMT07T208 XOMT07T208
23	25	192	118	56	5	SPMT07T208 XOMT07T208
24	25	197	123	60	5	SPMT090308 XOMT090308
25	25	202	128	60	5	SPMT090308 XOMT090308
26	32	216	133	60	5	SPMT090308 XOMT090308
27	32	218	138	60	5	SPMT090308 XOMT090308
28	32	223	143	60	5	SPMT090308 XOMT090308
29	32	230	149	60	5	SPMT090308 XOMT090308
30	32	238	154	60	5	SPMT11T308 XOMT11T308
31	32	243	159	60	5	SPMT11T308 XOMT11T308
32	32	248	164	60	5	SPMT11T308 XOMT11T308
33	32	253	169	60	5	SPMT11T308 XOMT11T308
34	32	258	174	60	5	SPMT11T308 XOMT11T308
35	32	263	179	60	5	SPMT11T308 XOMT11T308
