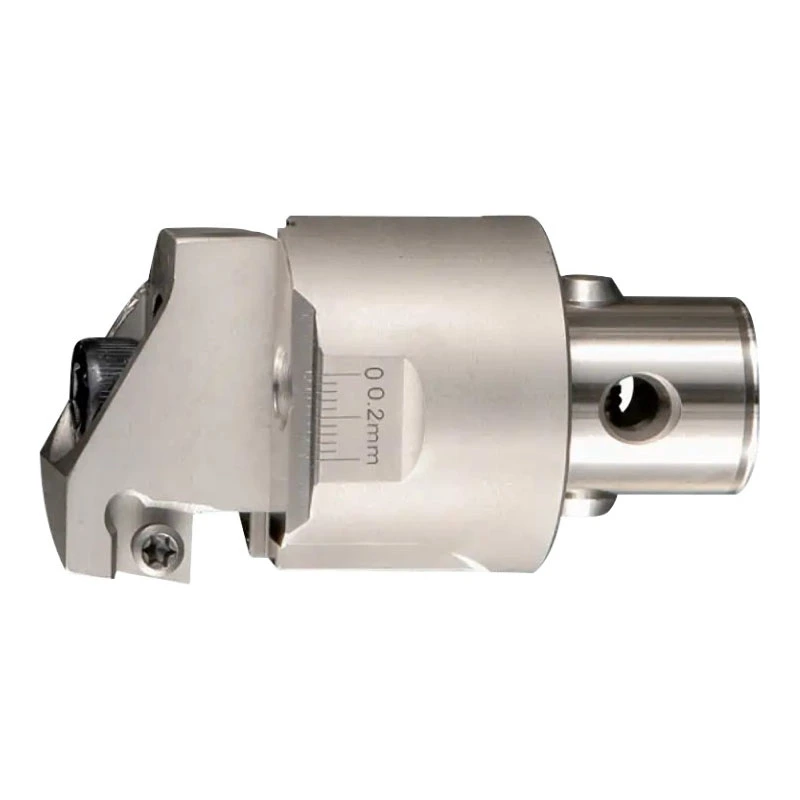

Modular Counter Rough Boring System

Diameter Range: 30mm – 160mm (1.181” – 6.299”)
• Length Range: 29mm – 56mm (1.142” – 2.205”)
• Material: H13 Steel

Features and benefits

• Interchangeable modular heads reduce tooling inventory
• Precision screw adjustment allows accurate diameter adjustment
• Modular construction minimizes vibration and deflection
• Supports back boring
• See page 112 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

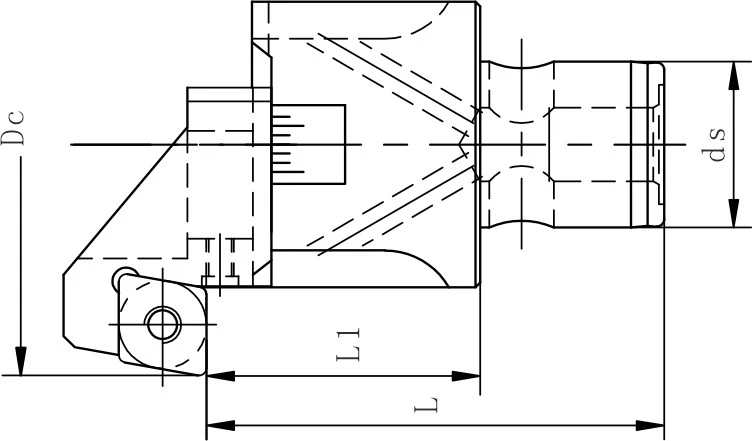

Dimensions & Technical Specifications

7 available configurations

Cutting Diameter (mm)	Holding Diameter (mm)	Length (mm)	Insert	Insert Screw	Insert Wrench	Mass (kg)	Cutting Depth (mm)
30-38	14	65	CC..0602..	M2.5*6.5	T8	0.049	29
37-47	18	50	CC..09T3..	M4*10	T15	0.098	30
46-60	22	55	CC..09T3..	M4*10	T15	0.161	36
60-81	28	65	CC..1204..	M5*13	T20	0.301	41
79-101	36	70	CC..1204..	M5*13	T20	0.574	56
99-130	36	75	CC..1204..	M5*13	T20	1.225	56
129-160	36	75	CC..1204..	M5*13	T20	1.575	56
