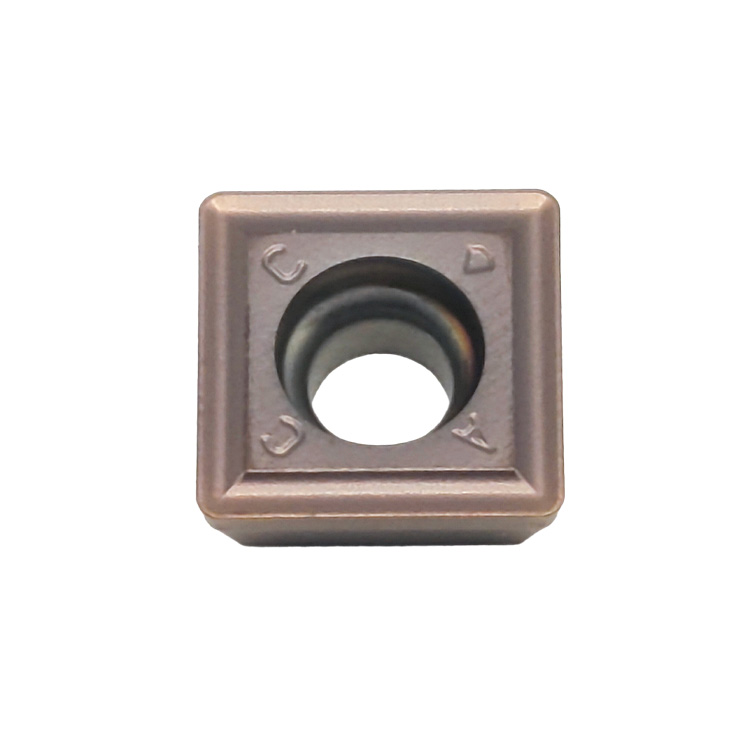

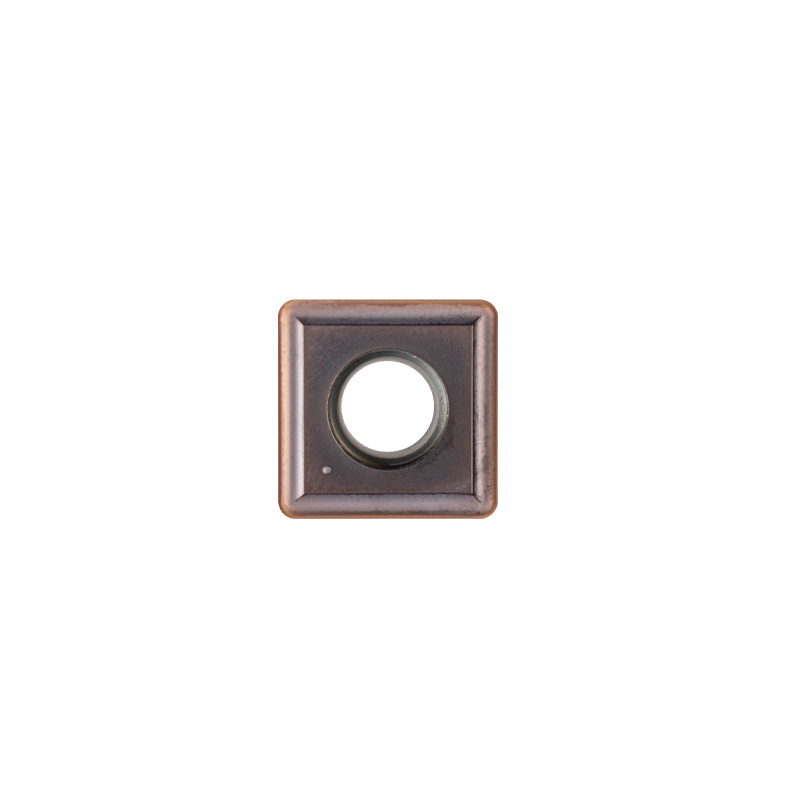

SPMT Carbide Inserts
Diameter Range: 4.7mm – 15.2mm (0.185” – 0.598”)
• Thickness Range: 2.4mm – 4.98mm (0.094” – 0.196”)
• Material: Carbide
Features and benefits
• Compatible with XO drill systems.
• Square geometry with four straight cutting edges
• Designed for use as the peripheral insert with the XOMT as its center counterpart
• Produces a precise final hole diameter and surface finish
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description
Dimensions & Technical Specifications
8 available configurations
| Insert Dia. (IC) (mm) | Thickness (s) (mm) | Hole Dia. (d) (mm) | Edge tip (r) (mm) | U Drill Diameter (mm) |
|---|---|---|---|---|
| 4.7 | 2.4 | 2.4 | 0.4 | 12-14 |
| 5.1 | 2.4 | 2.4 | 0.4 | 14-16 |
| 6.2 | 2.5 | 2.7 | 0.5 | 17-19 |
| 7.5 | 2.8 | 2.95 | 0.7 | 20-23 |
| 9.2 | 3.3 | 3.5 | 0.8 | 24-29 |
| 11 | 4 | 4.1 | 0.8 | 30-35 |
| 13 | 4.5 | 4.6 | 1 | — |
| 15.2 | 4.98 | 5.65 | 1 | — |
