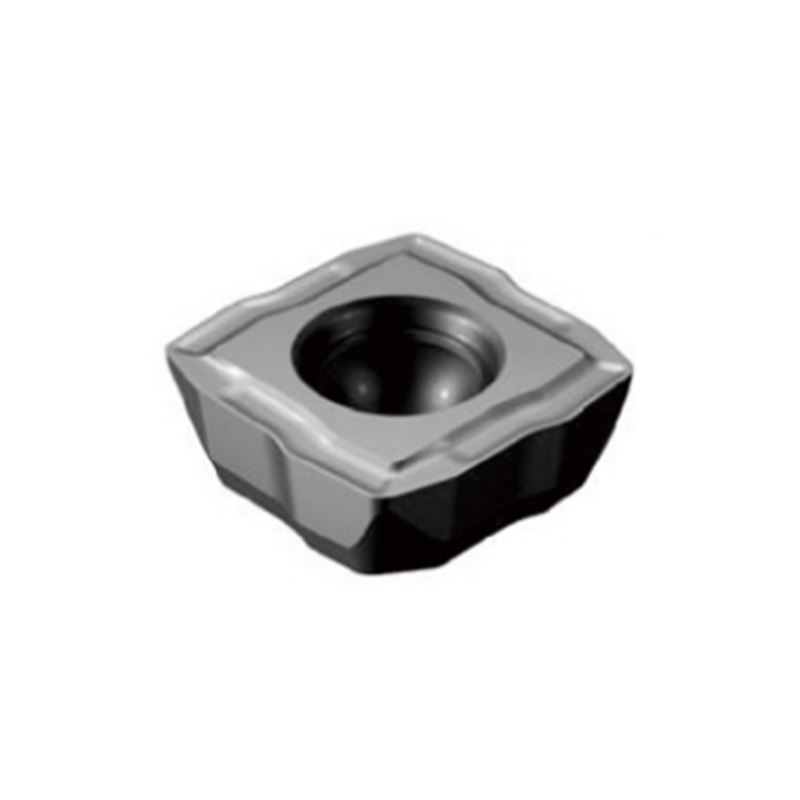

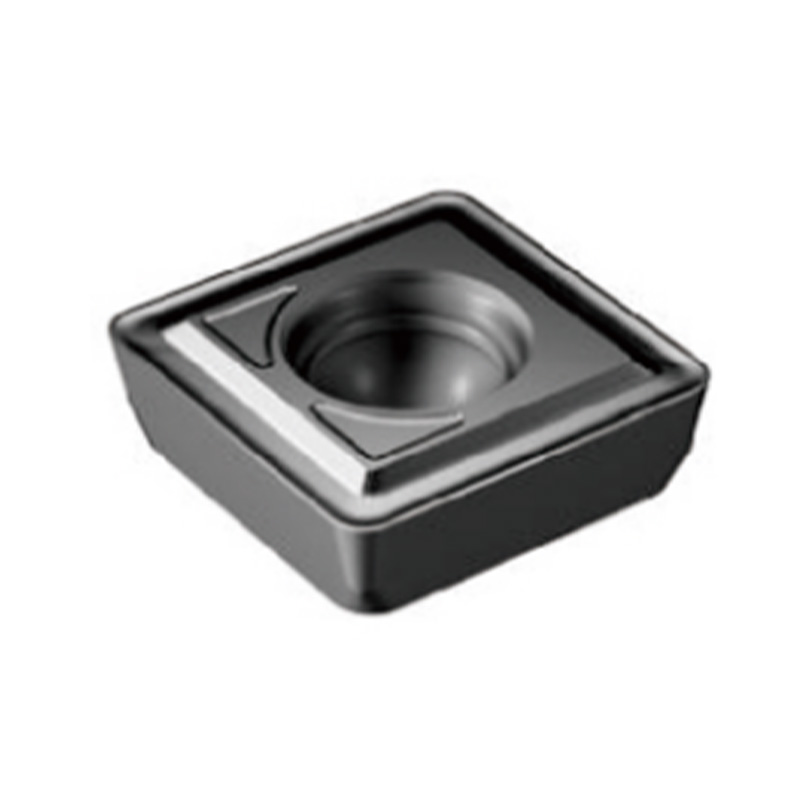

880 Carbide Inserts

Diameter Range: 4.57mm – 17.9mm (0.18” – 0.705”)
• Thickness Range: 2mm – 5.5mm (0.079” – 0.217”)
• Material: Carbide

Features and benefits

• Designed specifically for the 880 U Drill
• Functions as the peripheral cutting insert
• Produces the final hole diameter and surface finish
• Works in combination with the 880 Peripheral Insert for stable drilling performance
• See pages 36-45 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

Dimensions & Technical Specifications

26 available configurations

Edge Length (L) (mm)	Insert Dia. (IC) (mm)	Thickness (s) (mm)	Edge tip (r) (mm)
4.57	4.57	2	0.3
4.57	4.57	2	0.3
4.9	4.9	2.4	0.4
4.9	4.9	2.4	0.4
4.9	4.9	2.4	0.4
5.7	5.7	2.6	0.5
5.7	5.7	2.6	0.5
5.7	5.7	2.6	0.5
6.8	6.8	2.8	0.5
6.8	6.8	2.8	0.5
6.8	6.8	2.8	0.5
8.4	8.4	3	0.5
8.4	8.4	3	0.5
8.4	8.4	3	0.5
10.2	10.2	3.5	0.6
10.2	10.2	3.5	0.6
10.2	10.2	3.5	0.6
12.4	12.4	4	0.6
12.4	12.4	4	0.6
12.4	12.4	4	0.6
14.9	14.9	4.5	0.8
14.9	14.9	4.5	0.8
14.9	14.9	4.5	0.8
17.9	17.9	5.5	0.8
17.9	17.9	5.5	0.8
17.9	17.9	5.5	0.8
