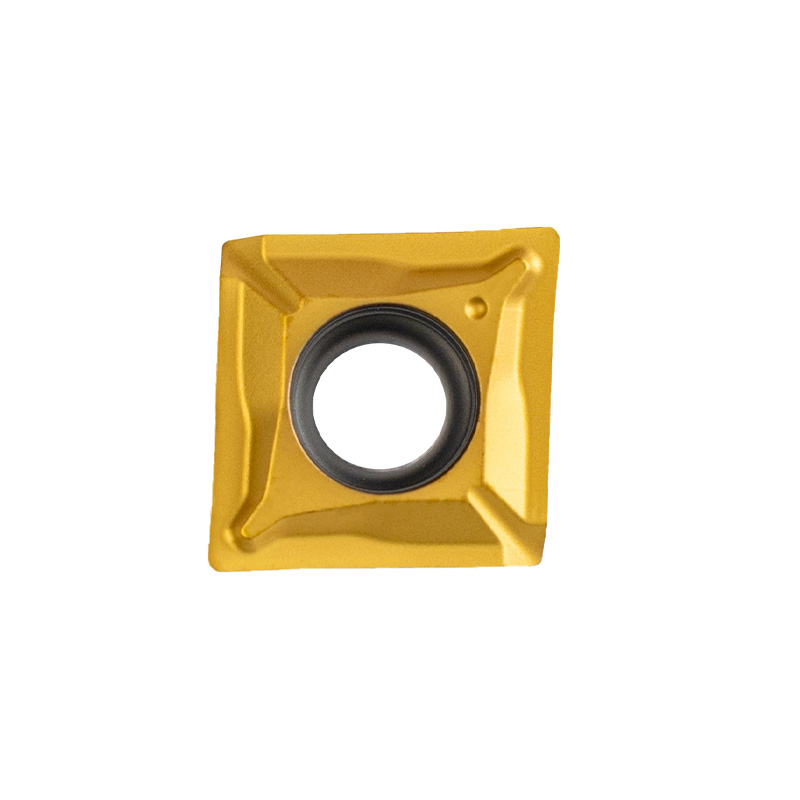

XCMT Carbide Inserts

Diameter Range: 4.40mm – 17.40mm (0.173” – 0.685”)
• Thickness Range: 1.70mm – 5.56mm (0.067” – 0.219”)
• Material: Carbide

Features and benefits

• Designed for use as the single insert in TCAP drill systems
• 86° rhombic geometry with a 7° relief angle
• Provides a balance of edge strength, clearance, and cutting stability
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

11 available configurations

Edge Length (L) (mm)	Insert Dia. (IC) (mm)	Thickness (s) (mm)	Hole Dia. (d) (mm)	Edge tip (r) (mm)	U Drill Diameter (mm)
6.4	4.4	1.7	2.1	0.4	TCAP 08R
6.4	4.4	1.7	2.1	0.4	TCAP 08L
5.6	5.6	2.1	2.3	0.4	TCAP 10R
6.4	6.4	2.38	2.6	0.4	TCAP 12R
7.5	7.5	3.18	2.8	0.4	TCAP 14R
8.4	8.4	3.18	3.4	0.4	TCAP 16R
10.5	10.5	3.97	4.2	0.4	TCAP 20R
10.5	10.5	3.97	4.2	0.8	TCAP 20R
13.4	13.4	4.76	5.2	0.4	TCAP 25R
13.4	13.4	4.76	5.2	0.8	TCAP 25R
17.4	17.4	5.56	5.2	0.8	TCAP 32R
