SP Carbide Inserts

Diameter Range: 3.5mm – 14.3mm (0.138” – 0.563”)
• Thickness Range: 1.4mm – 5.2mm (0.055” – 0.205”)
• Material: Carbide

Features and benefits

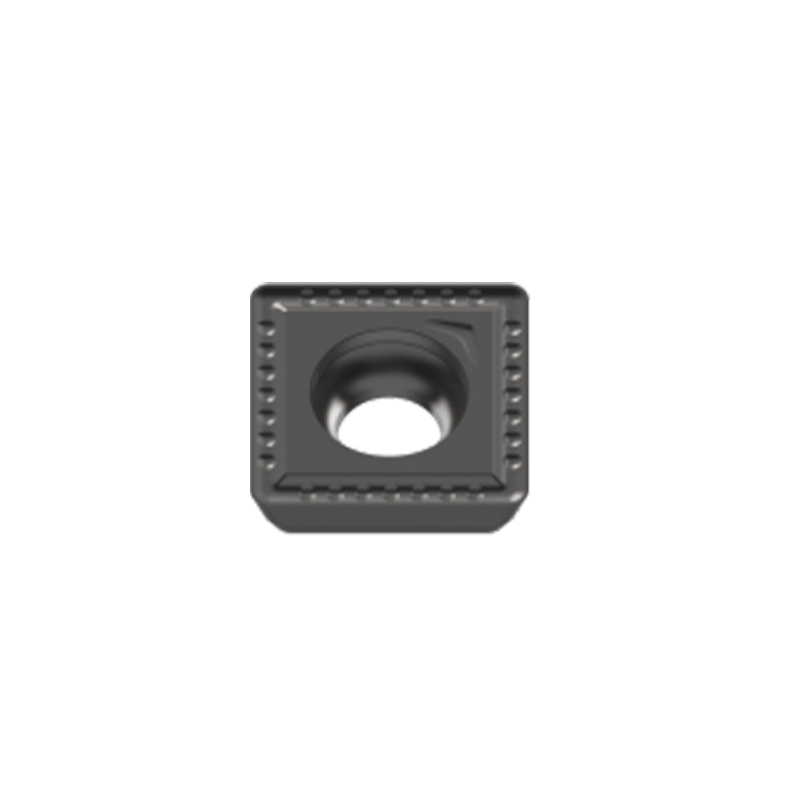

• Square geometry with four straight cutting edges
• Designed for use as the peripheral and center insert in SPGT drilling systems
• Produces a precise final hole diameter and surface finish
• See page 92 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions

Send Inquiry

Product Description

Dimensions & Technical Specifications

8 available configurations

Edge Length (L) (mm)	Thickness (s) (mm)	Hole Dia. (d) (mm)	Edge tip (r) (mm)	U Drill Diameter (mm)
3.5	1.4	1.9	0.4	8.5-9.5
4	1.8	2.05	0.2	10-12.5
5	2.38	2.3	0.4	13-15.5
6	2.38	2.61	0.4	16-21.5
7.94	3.97	2.85	0.8	22-28.5
9.8	4.3	4.05	0.8	29-34.5
11.5	4.8	4.45	0.8	35-41.5
14.3	5.2	5.75	1.2	42-50
