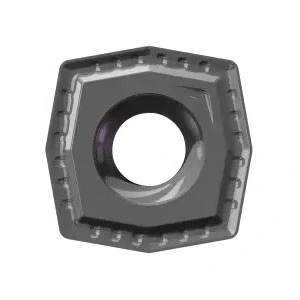

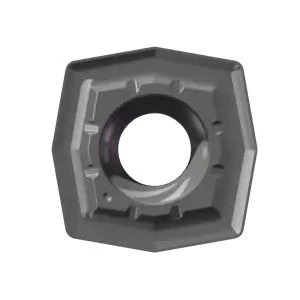

XOMT Carbide Inserts
Diameter Range: 4.9mm – 15.9mm (0.193” – 0.626”)
• Length Range: 2.42mm – 5.04mm (0.095” – 0.198”)
• Material: Carbide
Features and benefits
• Compatible with XO drill systems
• Square geometry with raised center points
• Designed for use as the center insert with the SPMT as its peripheral counterpart
• Initiates the cut and promotes stable chip formation
• See page 93 of our catalogue under the “Download” tab for detailed dimensions, tolerances, and applicable inserts
• Please contact us for inquiries on pricing or customized solutions
Send Inquiry
Product Description
Dimensions & Technical Specifications
8 available configurations
| Insert Dia. (IC) (mm) | Thickness (s) (mm) | Hole Dia. (d) (mm) | Edge tip (r) (mm) | U Drill Diameter (mm) |
|---|---|---|---|---|
| 4.9 | 2.42 | 2.35 | 0.4 | 12-14 |
| 5.4 | 2.4 | 2.4 | 0.4 | 14-16 |
| 6.6 | 2.5 | 2.7 | 0.4 | 17-19 |
| 7.8 | 2.9 | 2.95 | 0.5 | 20-23 |
| 9.6 | 3.3 | 3.5 | 0.5 | 24-29 |
| 11.4 | 4 | 4.1 | 0.6 | 30-35 |
| 13.6 | 4.5 | 4.6 | 0.6 | — |
| 15.9 | 5.04 | 5.65 | 0.8 | — |
